Technical Specifications
| Item | Specification |
|---|---|

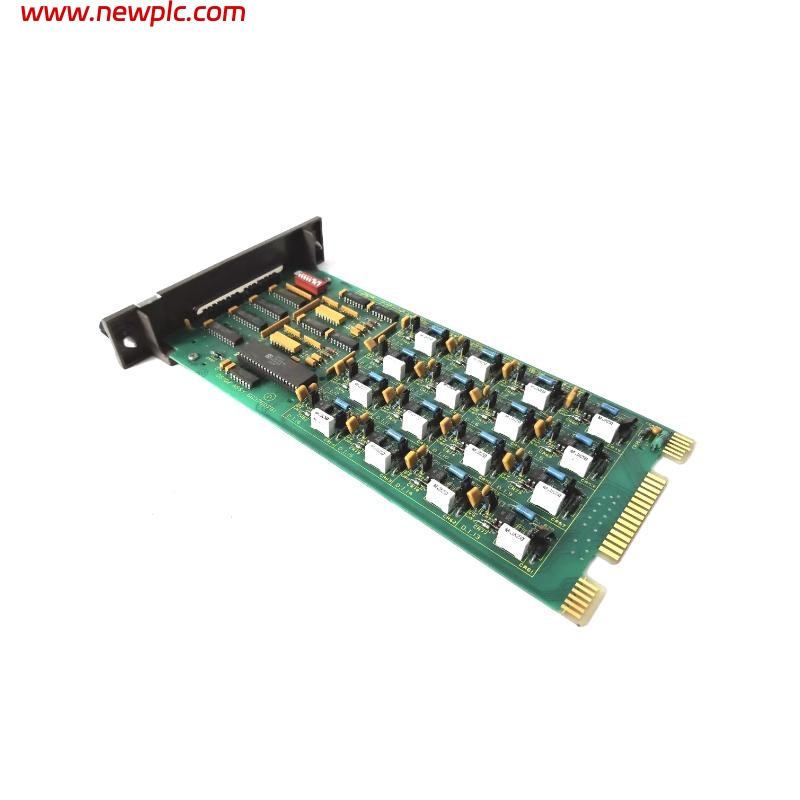

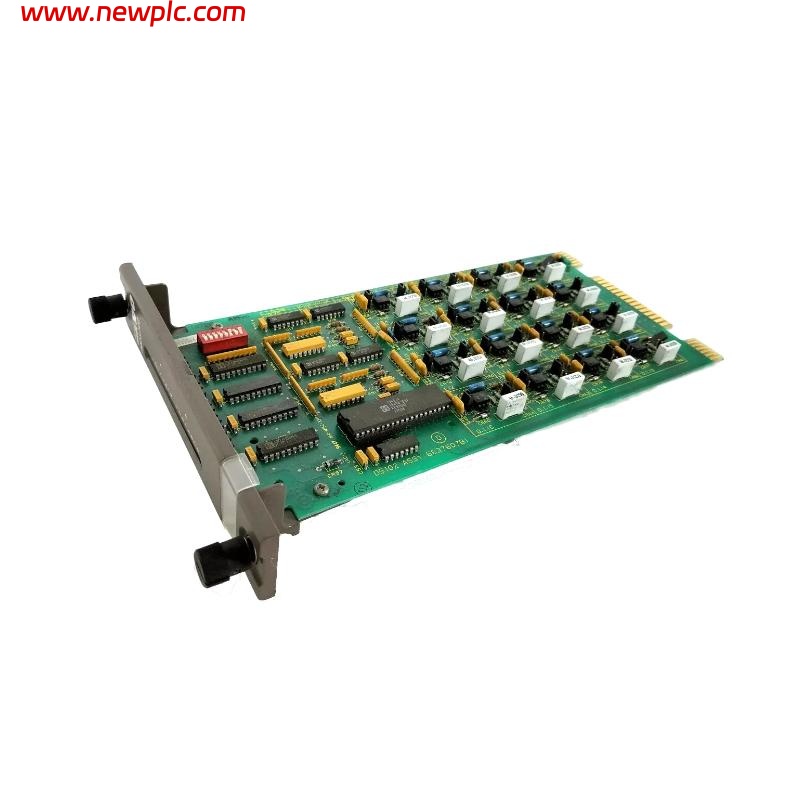

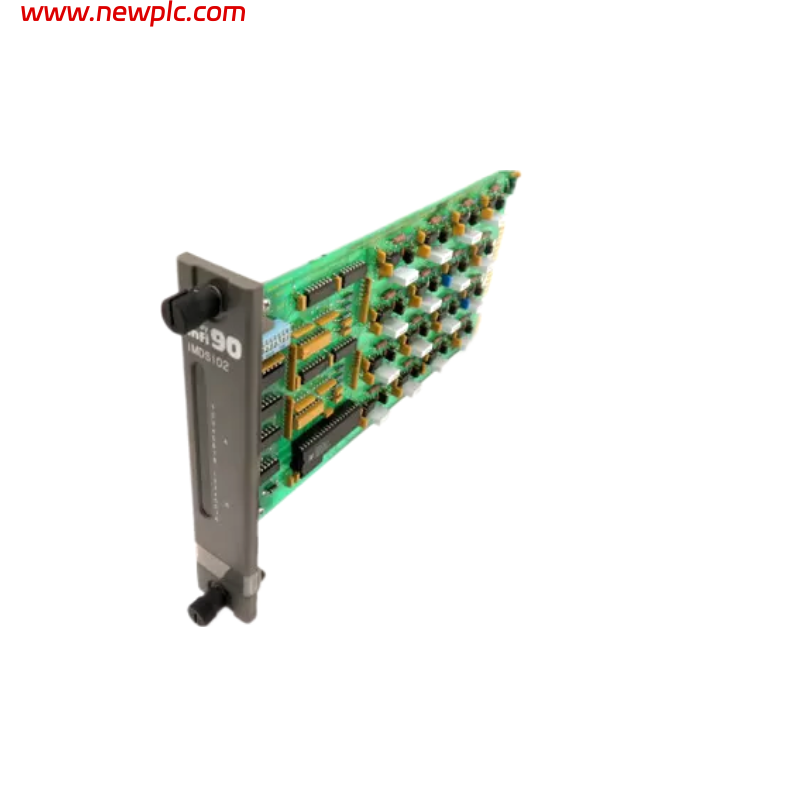

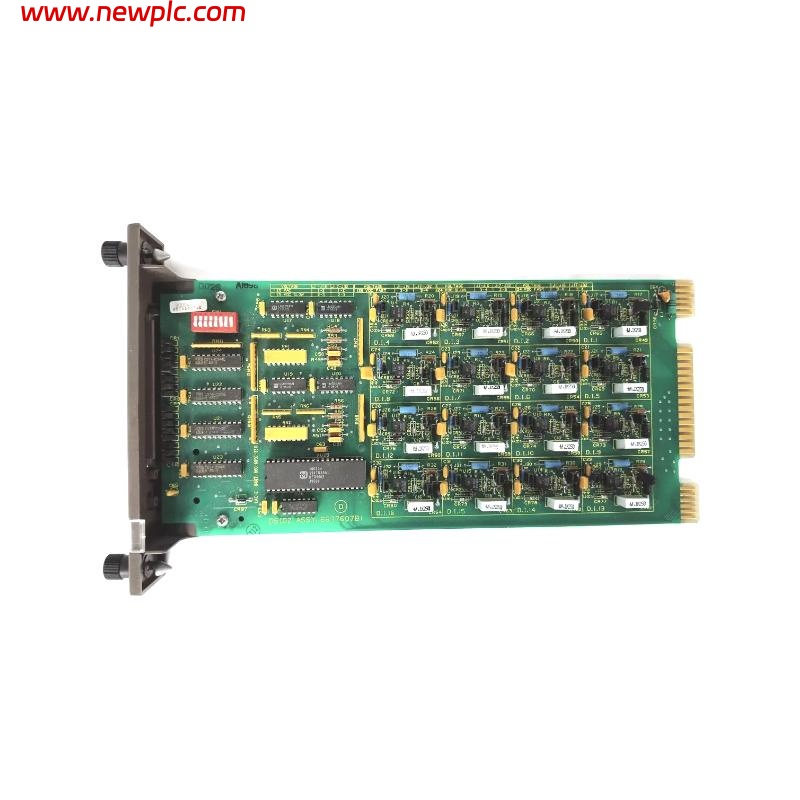

| Product Model | IMDSI02 |
| Brand | ABB Bailey |
| Product Type | Digital Input Slave Module |
| Function | Receives external discrete input signals for processing |
| Input Channels | Multi-channel (depends on configuration) |
| Input Type | Dry contact / TTL level / opto-isolated |
| Input Voltage Range | 18–30 VDC (24 VDC typical) |
| Input Current | ~5 mA per channel |
| Input Filtering | Noise filtering for signal stability |
| Communication | Via backplane bus to master controller |
| Response Time | <2 ms (typical) |
| Operating Temp. | 0°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Dimensions | 120 x 80 x 60 mm |
| Weight | 0.454 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the IMDSI02 module?
It receives discrete digital input signals from the field and transmits them to the main controller.
Q2: How many input channels are supported?
It supports multiple channels; the exact number depends on the system configuration.
Q3: Are the input signals isolated?
Yes, optical isolation is used to enhance safety and noise immunity.
Q4: What voltage is supported for inputs?
Typical input voltage is 24 VDC, with an acceptable range of 18–30 VDC.
Q5: How fast does it respond to signals?
It has a typical response time of less than 2 milliseconds.
Q6: Does the module include input filtering?
Yes, built-in noise filtering helps prevent false triggering.
Q7: Is hot-swapping supported?
It is recommended to power down the system before replacing the module.
Q8: How is the IMDSI02 installed?
It uses a standard slot-mounting method and must be securely fixed into the system rack.
