Technical Specifications
| Item | Specification |
|---|---|

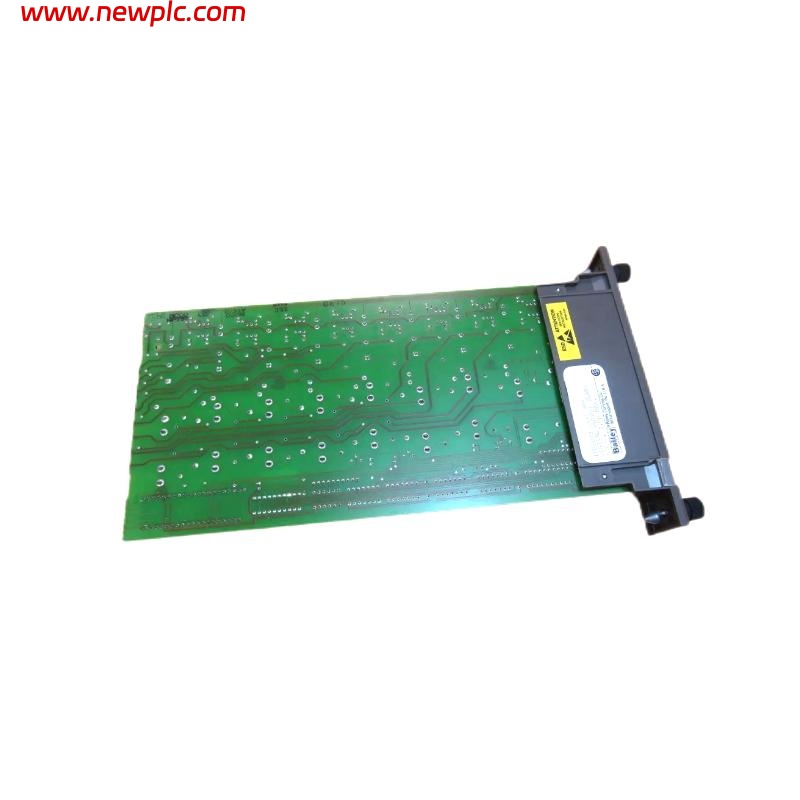

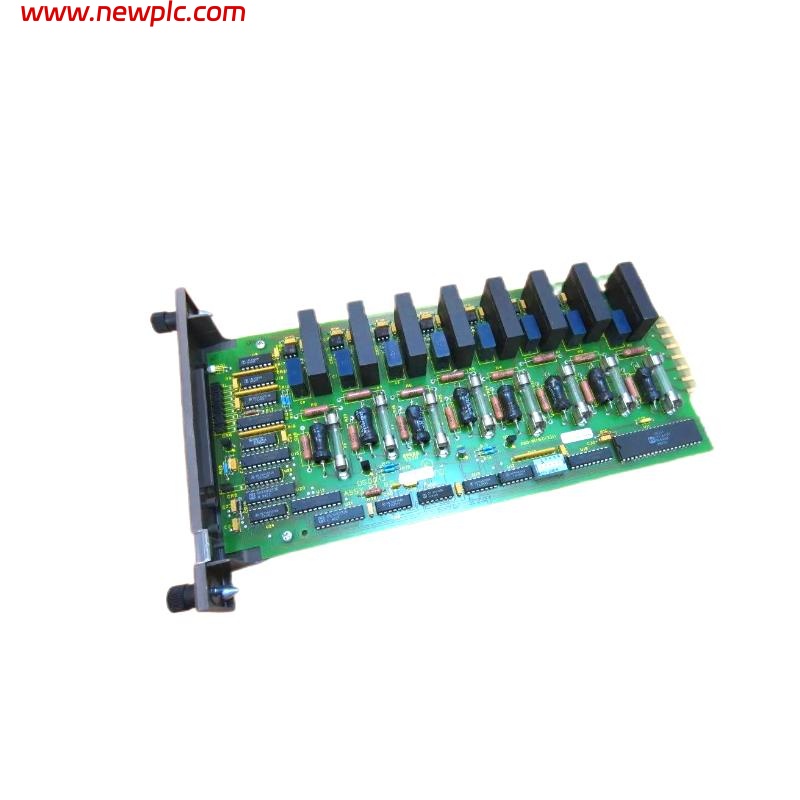

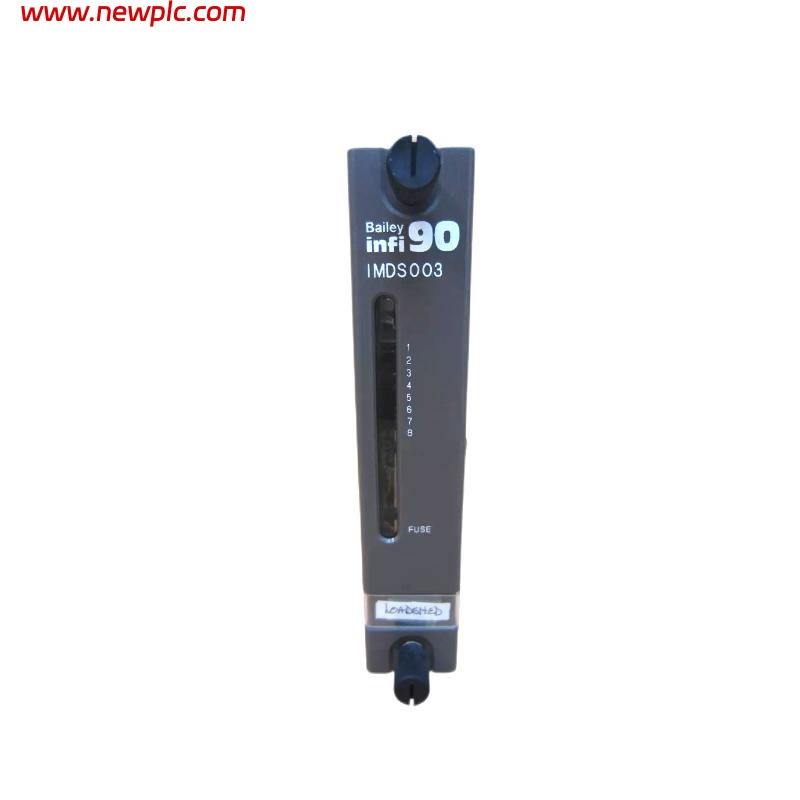

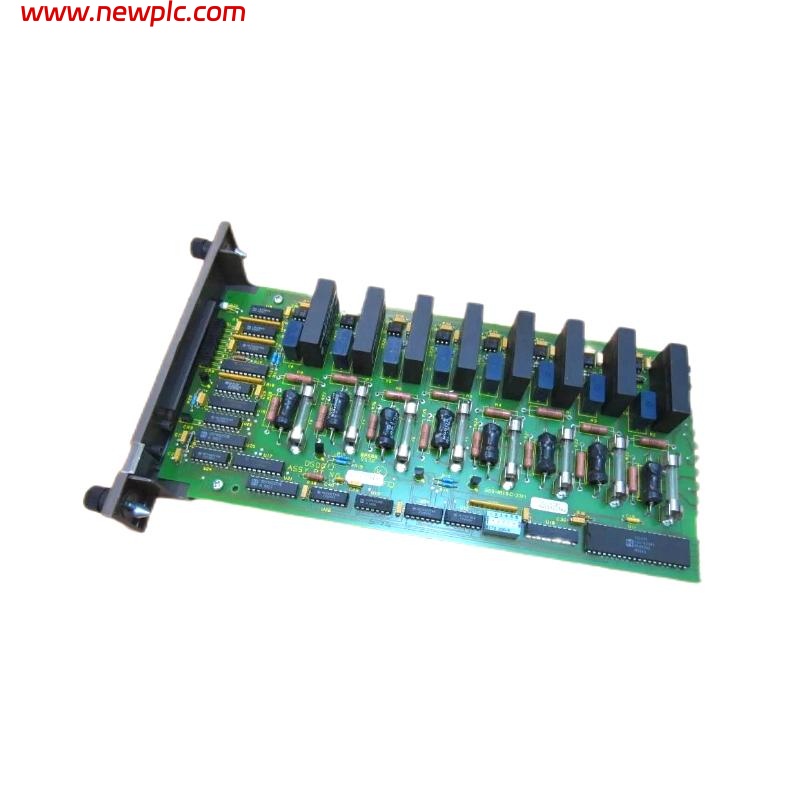

| Product Model | IMDSO03 (6636037L1) |
| Brand | ABB Bailey |
| Product Type | Digital Output Slave Module |
| Function | Controls discrete output signals for external loads |
| Channel Count | Multi-channel digital output |
| Output Type | TTL or opto-isolated output |
| Voltage Range | 24 VDC (typical) |
| Output Capacity | Max 500 mA per channel |
| Response Time | <1 ms |
| Communication | Communicates with main controller |
| Operating Temp. | 0°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Dimensions | 190 x 110 x 25 mm |
| Weight | 0.567 kg |
FAQ
FAQ
Q1: What is the primary function of the IMDSO03 module?
It converts digital control signals from the main module into discrete output signals for controlling external devices like relays and indicators.
Q2: What is the maximum output current per channel?
Each channel supports up to 500 mA output current.
Q3: Is the output electrically isolated?
Yes, the module typically uses opto-isolation to ensure system safety.
Q4: What voltage does the module operate on?
Typically operates at 24 VDC, depending on system configuration.
Q5: Does the module communicate with the master station?
Yes, it communicates with the main controller via a dedicated bus or interface.
Q6: What is the typical response time?
Less than 1 millisecond, suitable for fast control logic.
Q7: What are the operating conditions?
Operating temperature range is 0°C to +60°C, suitable for industrial environments.
Q8: How is the module installed?
It uses slot-mounted installation; power should be off and proper grounding ensured during handling.
