Technical Specifications
| Parameter | Specification |
|---|---|

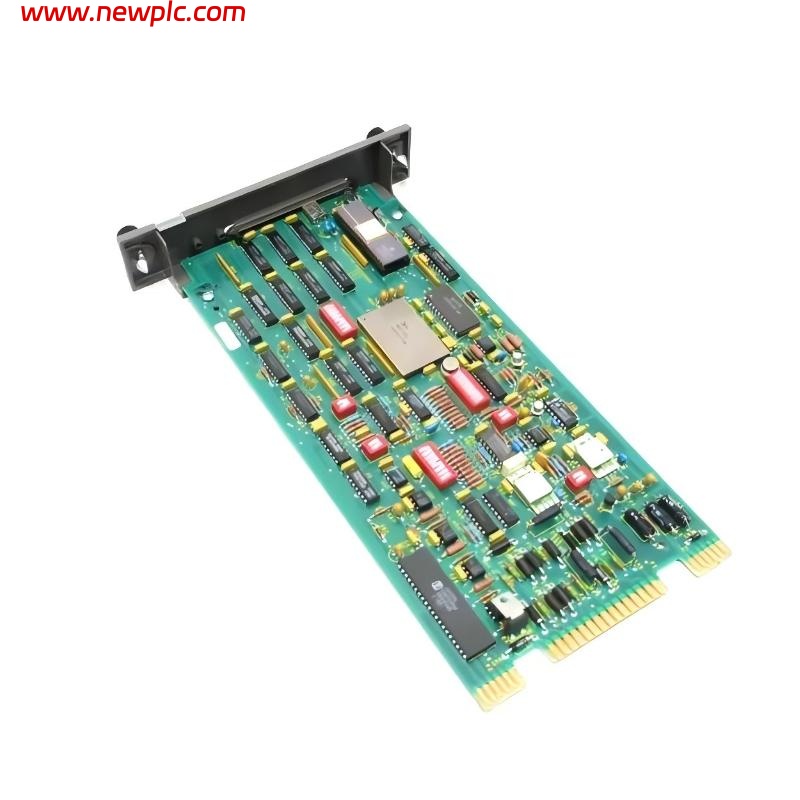

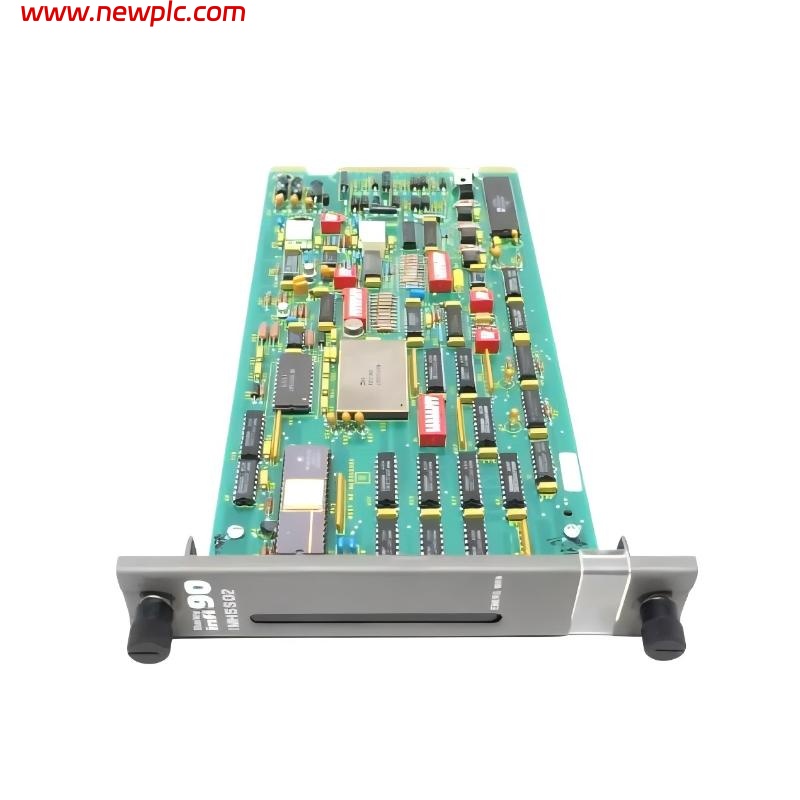

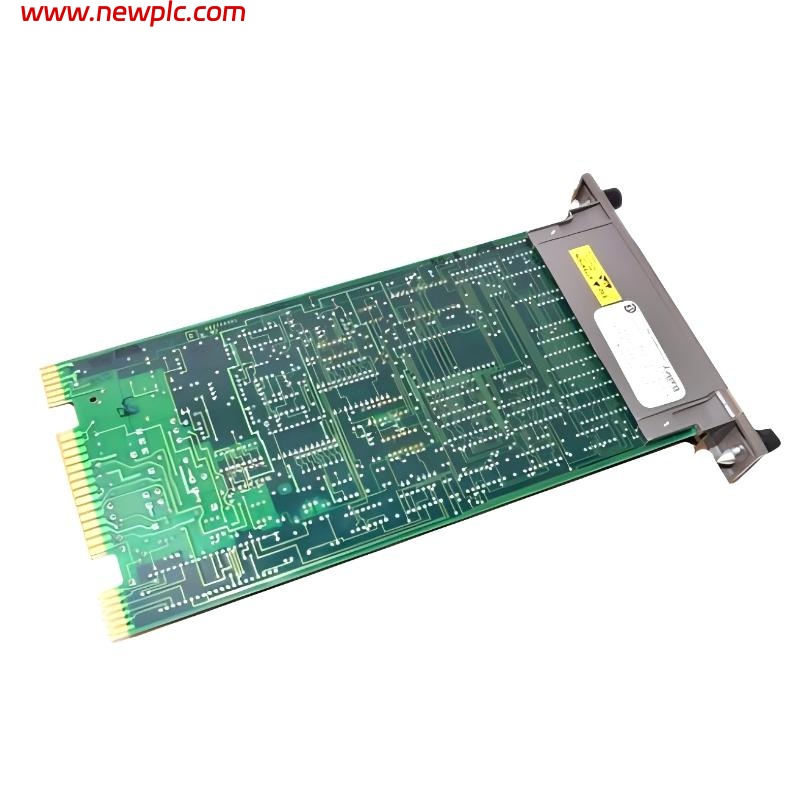

| Product Type | Hydraulic Servo Slave Module |
| Model | ABB Bailey IMHSS02 |
| Dimensions | 180 x 150 x 50 mm |
| Weight | 0.794 kg |
| Function | Controls hydraulic servo valves as part of a distributed control system |
| Control Type | Closed-loop position and velocity control |
| Input Signal | 4–20 mA or 0–10 VDC command signals |
| Feedback Type | Linear displacement transducer (LVDT) or potentiometer |
| Response Time | <15 ms typical |
| Accuracy | ±0.1% of full scale |
| Power Supply | 24 VDC nominal |
| Communication Interface | Bailey INFI 90/Network 90 I/O bus |
| Diagnostics | Valve fault detection, feedback monitoring, and communication status |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting | Plug-in type for system backplane |
| Certifications | CE, UL, CSA, and industrial EMC compliance |
FAQ
FAQ
Q1: What is the primary function of the ABB Bailey IMHSS02 module?
A1: The IMHSS02 functions as a hydraulic servo slave, controlling hydraulic valves precisely according to command signals from the main controller to achieve accurate motion and positioning.
Q2: What types of input signals does the IMHSS02 accept?
A2: The module accepts 4–20 mA or 0–10 VDC analog command signals from the control system, providing flexibility for integration with different controllers.
Q3: How does the IMHSS02 receive feedback for control?
A3: It uses linear displacement transducers (LVDT) or potentiometers to provide position or velocity feedback, enabling closed-loop precise control.
Q4: What is the response time of the IMHSS02 module?
A4: The typical response time is less than 15 milliseconds, allowing rapid adjustments to maintain accurate hydraulic valve positioning.
Q5: How accurate is the control performed by the IMHSS02?
A5: The module achieves high precision with an accuracy of ±0.1% of full scale, ensuring reliable hydraulic motion control in critical applications.
Q6: What diagnostic features are included in the IMHSS02?
A6: It provides valve fault detection, feedback monitoring, and communication status diagnostics, which help operators identify and resolve system issues efficiently.
Q7: Is the IMHSS02 compatible with ABB Bailey control systems?
A7: Yes, it integrates seamlessly with INFI 90 and Network 90 systems, providing reliable communication and coordination with the central controller.
Q8: In what environments can the IMHSS02 operate reliably?
A8: The module is designed to function in industrial environments with temperatures ranging from 0°C to +60°C and humidity up to 95% non-condensing, ensuring stable performance.
