Technical Specifications
| Parameter | Specification |
|---|---|

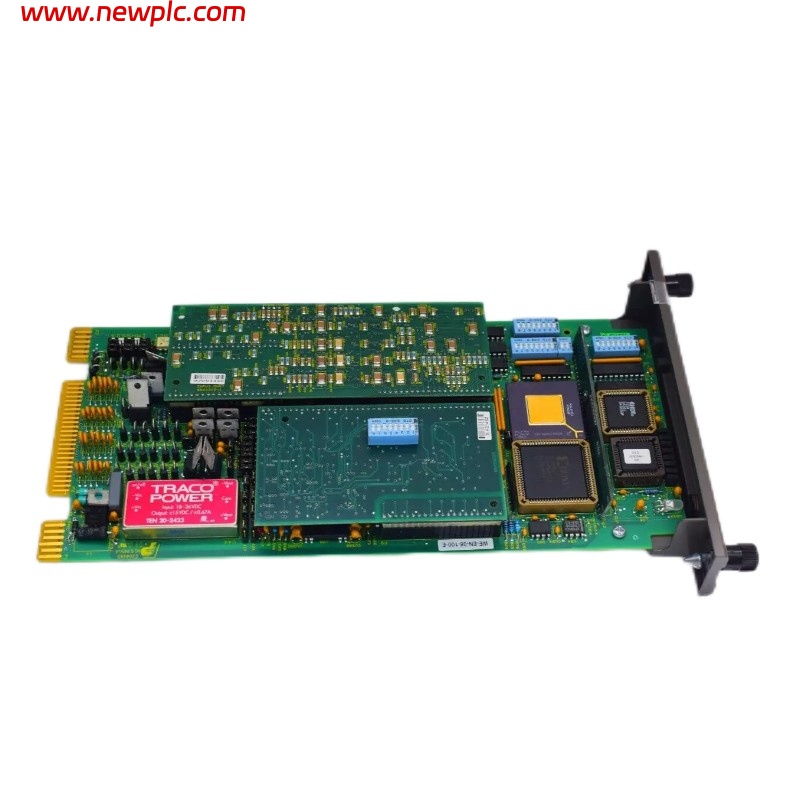

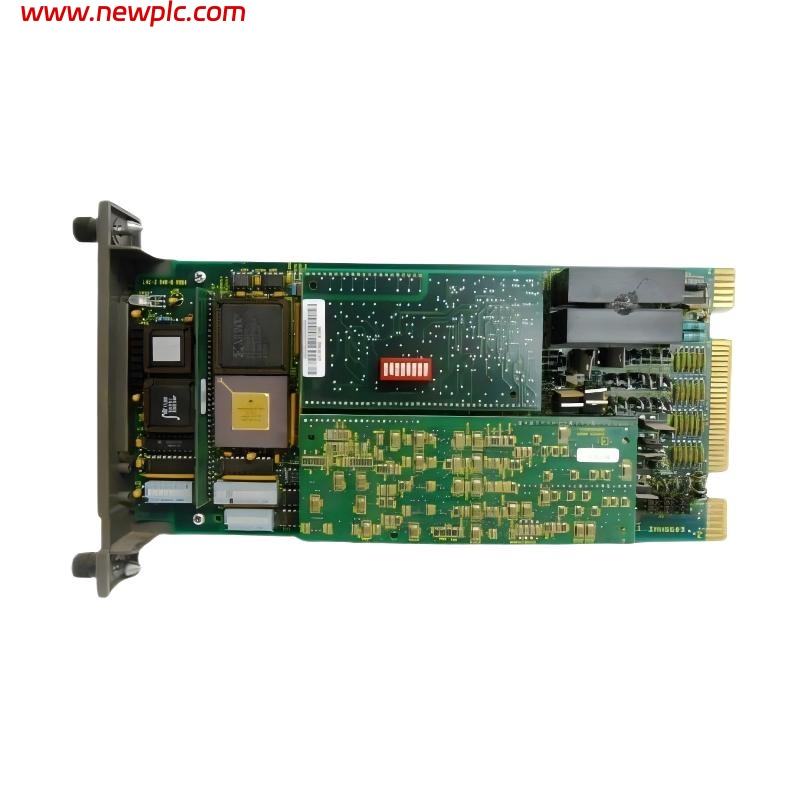

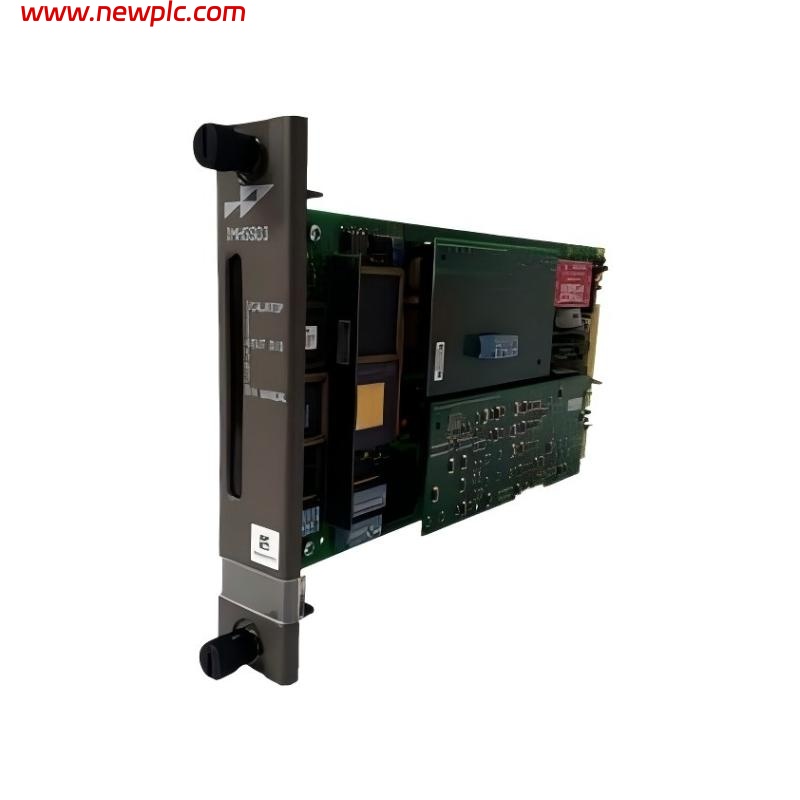

| Model | ABB Bailey IMHSS03 |
| Type | Hydraulic Servo Driven Device |
| Function | Provides precise hydraulic servo drive for industrial control systems, enabling high-precision mechanical motion control |
| Control Method | Electro-hydraulic servo control |
| Input Signal | Analog voltage or current signal |
| Output Action | Control of hydraulic cylinder position or force |
| Operating Pressure | 0–210 bar |
| Flow Range | 0–50 L/min |
| Response Time | ≤50 ms |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | –20°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection Rating | IP54 |
| Mounting | Flange or base mounting |
| Dimensions | 25 x 150 x 300 mm |
| Weight | 0.5 kg |
FAQ
FAQ
QA1: What is the main function of the IMHSS03?
Provides precise hydraulic servo drive for industrial control systems, enabling high-precision mechanical motion control.
QA2: What is the control method?
Electro-hydraulic servo control.
QA3: What type of input signal does it use?
Analog voltage or current signal.
QA4: What is the operating pressure range?
0–210 bar.
QA5: What is the flow range?
0–50 L/min.
QA6: What is the operating temperature range?
0°C to +70°C.
QA7: What is the protection rating?
IP54, suitable for dust and water protection in industrial environments.
QA8: What are the mounting options?
Flange or base mounting, facilitating mechanical integration.
