Technical Specifications
| Parameter | Specification |
|---|---|

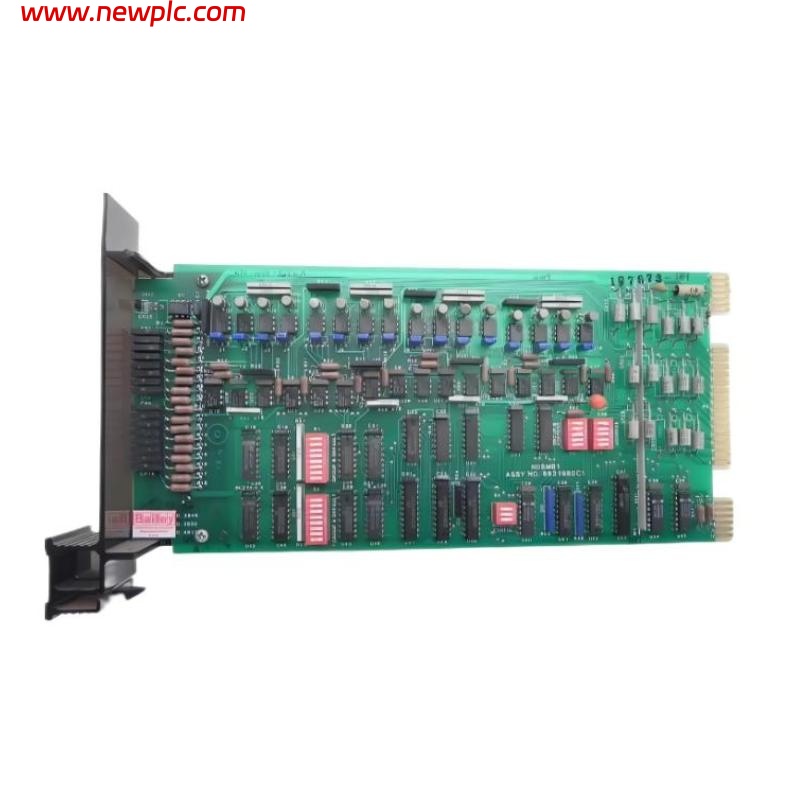

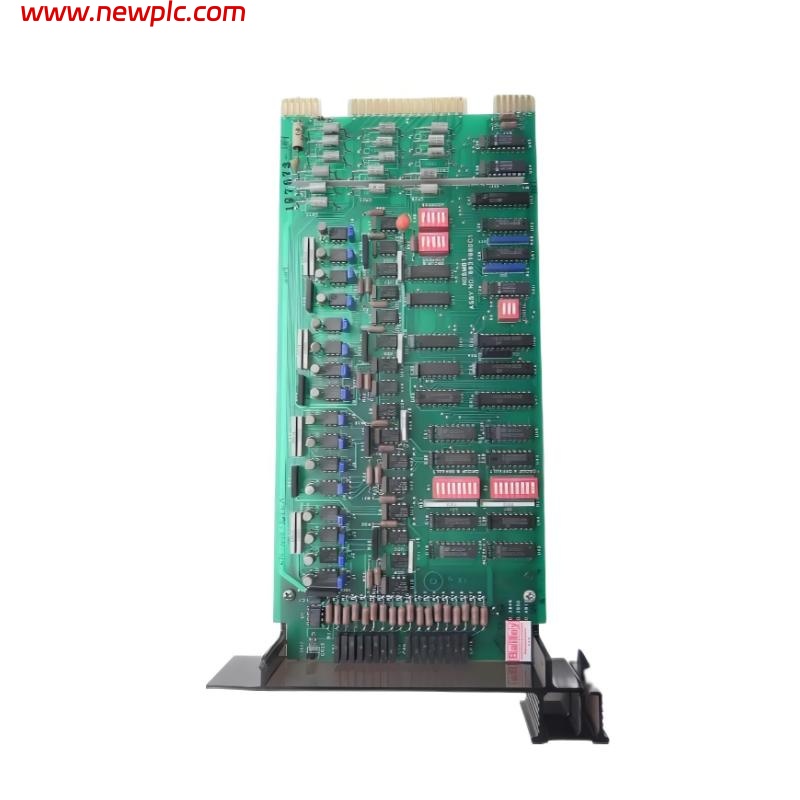

| Model | ABB Bailey NDSM01 |
| Type | Digital Slave Input Module |
| Function | Provides high-speed digital input interface for INFI 90 process control systems |
| Number of Input Channels | 16 isolated digital input channels |
| Input Signal Type | Dry contact or voltage input |
| Input Voltage Range | 0–32 VDC |
| Logic Level (ON/OFF) | ON > 15 VDC, OFF < 5 VDC |
| Input Impedance | 10 kΩ typical |
| Isolation Voltage | 1500 V RMS channel-to-ground |
| Update Rate | 10 ms typical |
| Communication Interface | Module Bus, compatible with INFI-NET systems |
| Power Supply Voltage | 24 VDC nominal |
| Power Consumption | <10 W |
| Signal Conditioning | Built-in noise filtering and debounce circuitry |
| Diagnostic Features | Self-test, input channel diagnostics, fault indication |
| Status Indication | LED indicators for each input channel |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Cooling Method | Natural convection |
| Mounting Type | DIN-rail or card rack installation |
| Dimensions (HxWxD) | 150 × 150 × 50 mm |
| Weight | 0.6 kg |
FAQ
FAQ
Q1: What is the function of the ABB Bailey NDSM01 module?
A1: The NDSM01 functions as a digital slave input module designed to collect and process digital signals from field devices for INFI 90 control systems.
Q2: How many input channels does the NDSM01 provide?
A2: The module offers 16 optically isolated input channels to ensure reliable and noise-free signal acquisition.
Q3: What type of input signals can the NDSM01 handle?
A3: It supports both dry contact and DC voltage input types, making it adaptable to various industrial input configurations.
Q4: How does the NDSM01 ensure signal accuracy and integrity?
A4: The module features built-in noise filtering, debounce circuitry, and galvanic isolation to maintain stable and accurate signal readings.
Q5: What diagnostic functions are included in the NDSM01?
A5: It includes self-diagnostic routines, input channel fault detection, and LED-based status indication for rapid troubleshooting.
Q6: How is communication achieved between the NDSM01 and the system controller?
A6: Communication is established via the INFI-NET or Module Bus interface, ensuring seamless integration within ABB Bailey distributed control architectures.
Q7: What are the power requirements for the NDSM01 module?
A7: The module operates on a 24 VDC nominal power supply with a typical consumption of less than 10 watts.
Q8: In which applications is the NDSM01 commonly used?
A8: The module is widely used in industrial automation, power generation, and process control environments for acquiring digital input data from sensors, switches, and interlocks.
