Technical Specifications
| Parameter | Specification |
|---|---|

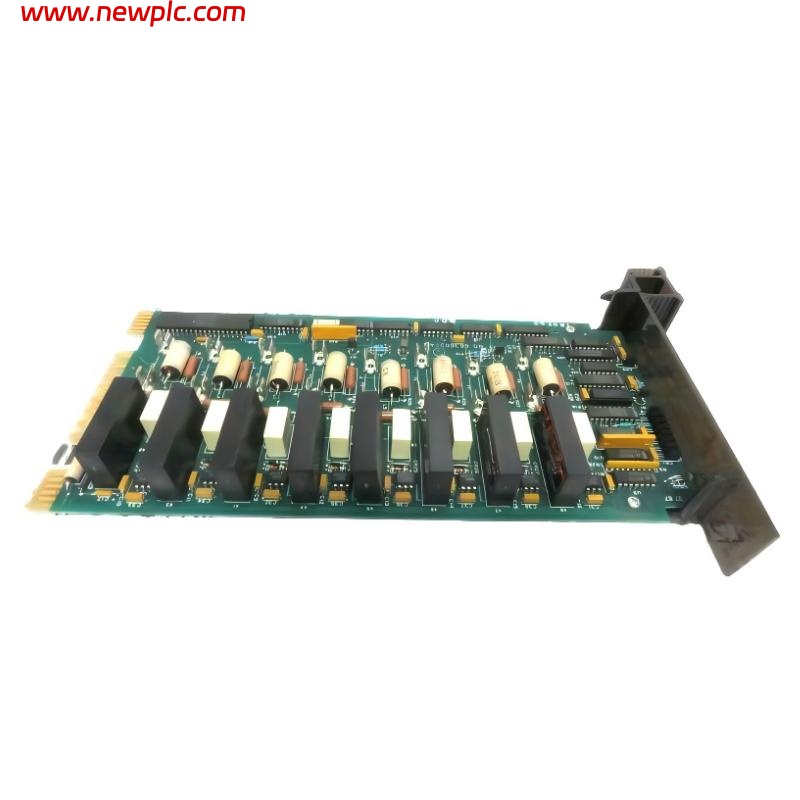

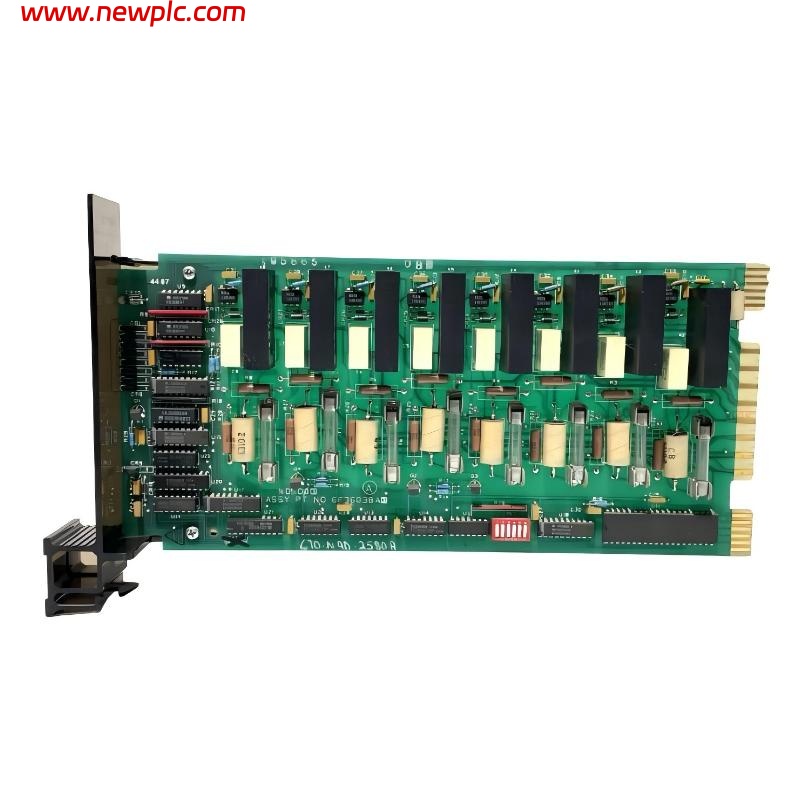

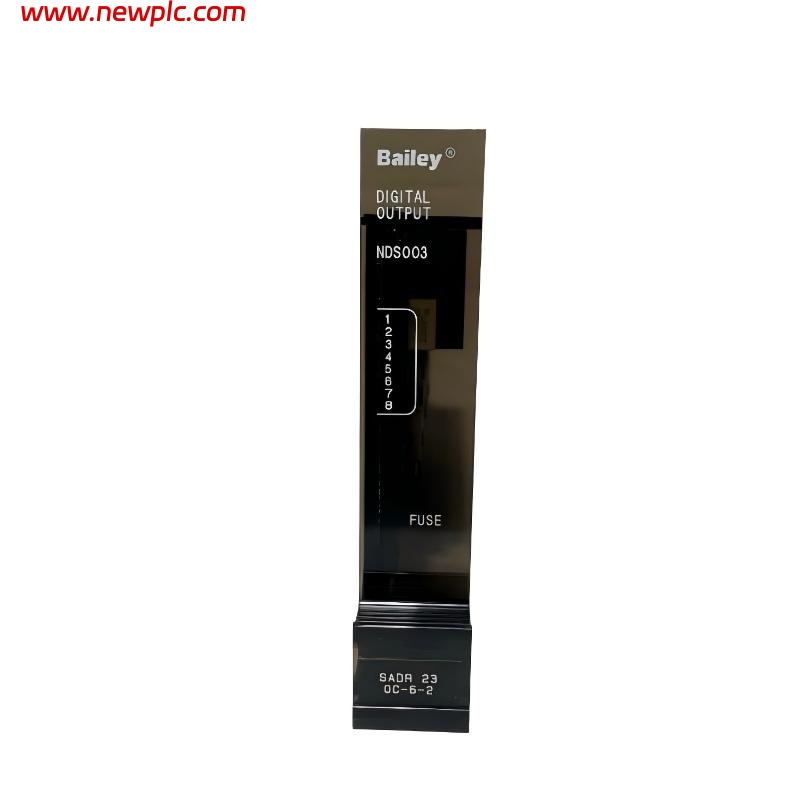

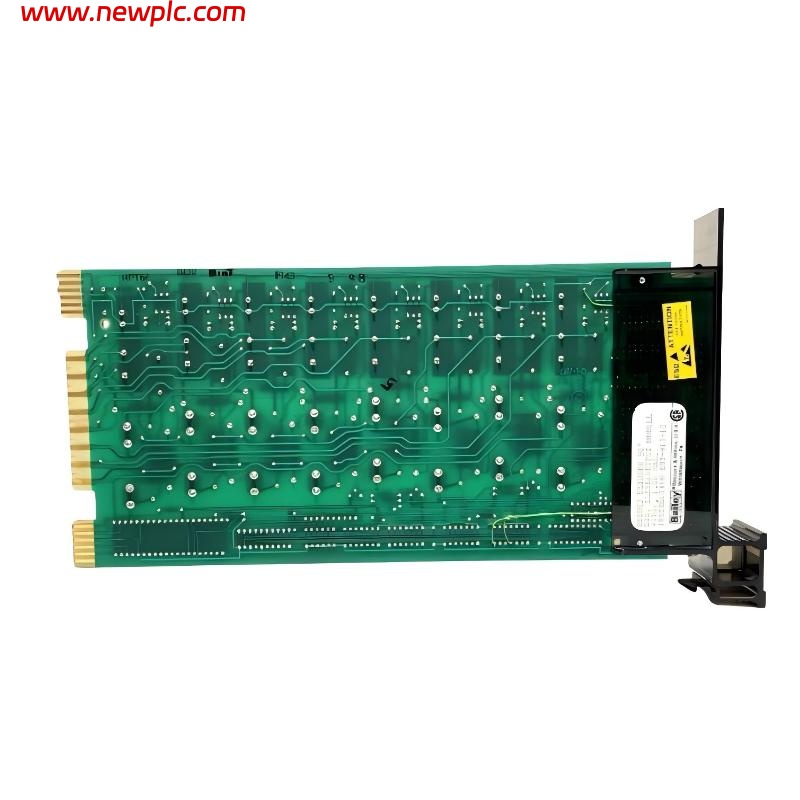

| Model | ABB Bailey NDSO03 |
| Type | Digital Output Module |
| Function | Provides discrete digital output signals from the INFI 90 control system to field devices |
| Number of Output Channels | 32 isolated digital output channels |
| Output Type | DC voltage or dry contact |
| Output Voltage Range | 0–32 VDC |
| Output Current | 0–500 mA per channel (typical) |
| Logic Level (ON/OFF) | ON > 15 VDC, OFF < 5 VDC |
| Isolation Voltage | 1500 V RMS channel-to-ground |
| Update Rate | 10 ms typical |
| Communication Interface | Module Bus compatible with INFI-NET |
| Power Supply Voltage | 24 VDC nominal |
| Power Consumption | <12 W |
| Signal Conditioning | Integrated short-circuit and overcurrent protection |
| Diagnostic Features | Channel fault detection, self-test diagnostics, LED fault indication |
| Status Indication | Individual LED indicators per output channel |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Cooling Method | Natural convection |
| Mounting Type | DIN-rail or card rack installation |
| Dimensions (HxWxD) | 150 × 150 × 50 mm |
| Weight | 0.5 kg |
FAQ
FAQ
Q1: What is the primary role of the NDSO03 module?
A1: The NDSO03 module provides discrete digital output signals from the INFI 90 system to control actuators, alarms, and other field devices.
Q2: How many output channels does the NDSO03 have?
A2: It has 32 isolated digital output channels.
Q3: What types of output signals are available on the NDSO03?
A3: It supports DC voltage outputs and dry contact signals.
Q4: Does the NDSO03 include channel protection features?
A4: Yes, each output channel has integrated protection against short circuits and overcurrent conditions.
Q5: Can the NDSO03 provide diagnostics for field devices?
A5: Yes, it offers channel fault detection, self-test diagnostics, and LED indicators for each output channel.
Q6: Which communication protocol is supported by the NDSO03?
A6: The module communicates via the INFI-NET Module Bus protocol, compatible with INFI 90 systems.
Q7: What is the power requirement for the NDSO03?
A7: It requires a 24 VDC nominal power supply and consumes less than 12 W.
Q8: In which applications is the NDSO03 typically deployed?
A8: It is used in industrial automation, process control, and power generation for controlling relays, valves, alarms, and other digital devices.
