Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Number | 3HAC17484-8/00 |

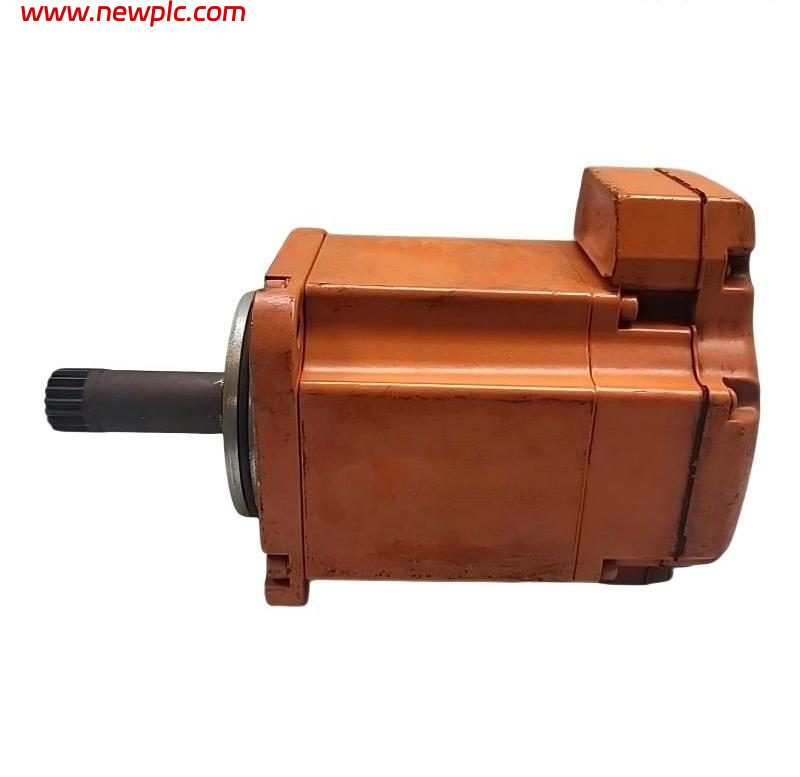

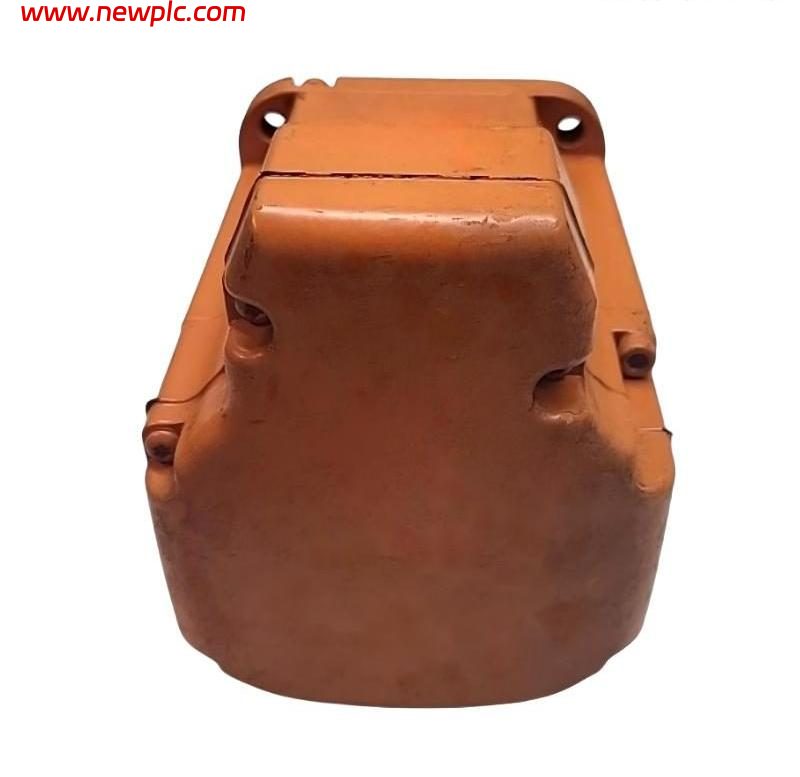

| Product Type | Rotational AC Servo Motor |
| Motor Designation | M8 |
| Axis | Axis 6 |
| Motor Type | Synchronous rotational AC servo motor |
| Application | ABB IRB 6600 robot |
| Controller Generation | M2000 / M2000A |
| Integrated Component | Pinion gear |
| Rated Power | Approx. 5 kW |
| Rated Voltage | 400 V AC |
| Brake Voltage | 24 V DC |
| Feedback | Resolver |
| Dimensions | Approx. 280 × 160 × 130 mm |
| Weight | Approx. 8.88–9.10 kg |
| Origin | Sweden / Switzerland |
| Product Status | Legacy / discontinued |
FAQ
FAQ
Q1: What is ABB 3HAC17484-8/00?
A: It is an ABB rotational AC servo motor, designated M8, used for Axis 6 of compatible IRB 6600 robots.
Q2: Which ABB robot uses this motor?
A: It is primarily associated with the ABB IRB 6600 robot and M2000/M2000A controller generation.
Q3: Which robot axis does 3HAC17484-8/00 drive?
A: It is the Axis 6 motor, responsible for the final wrist rotation of the robot.
Q4: Does the motor include a pinion?

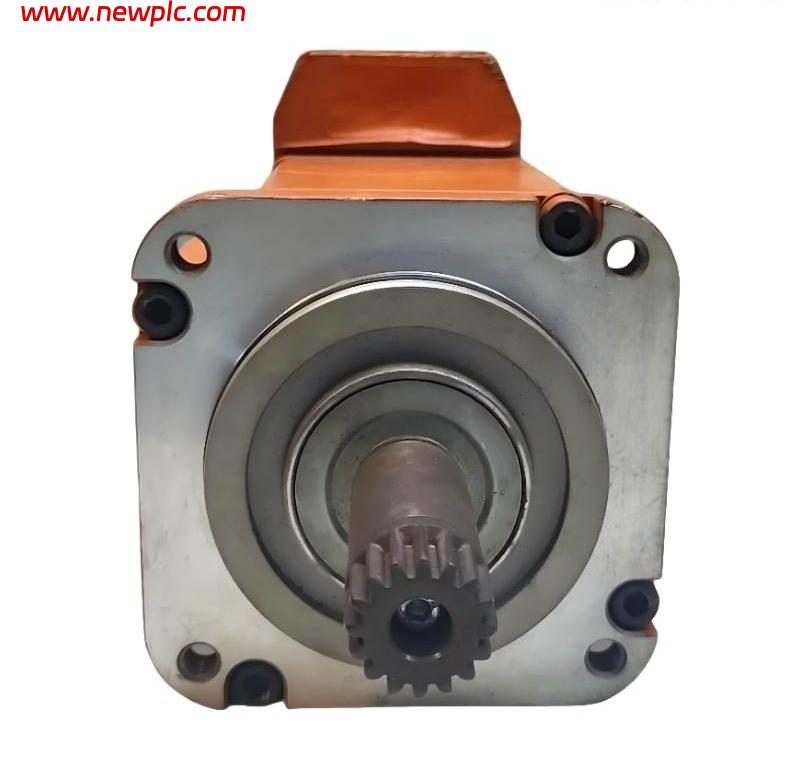

A: Yes. The 3HAC17484-8 is listed as a servo motor with pinion, with the pinion identified as 3HAC033234-001.
Q5: What are the electrical specifications?
A: Available service information identifies the motor as a 5 kW, 400 V AC ABB/Tamagawa servo motor with a 24 V DC brake and resolver feedback.
Q6: What are the dimensions of 3HAC17484-8/00?
A: Supplier specifications list approximately 280 × 160 × 130 mm.
Q7: How much does 3HAC17484-8/00 weigh?
A: ABB-derived product data lists a net weight of 8.88 kg; other supplier listings give approximately 8.88–9.10 kg.
Q8: What should be checked before replacing this motor?
A: Confirm the complete 3HAC17484-8/00 part number, Axis 6 application, motor voltage, brake, resolver configuration, mounting arrangement, and pinion. Several revisions such as /00, /01, /06 and /08 exist, so the exact suffix should be matched before replacement.
