Technical Specifications
| Parameter | Description |
|---|---|

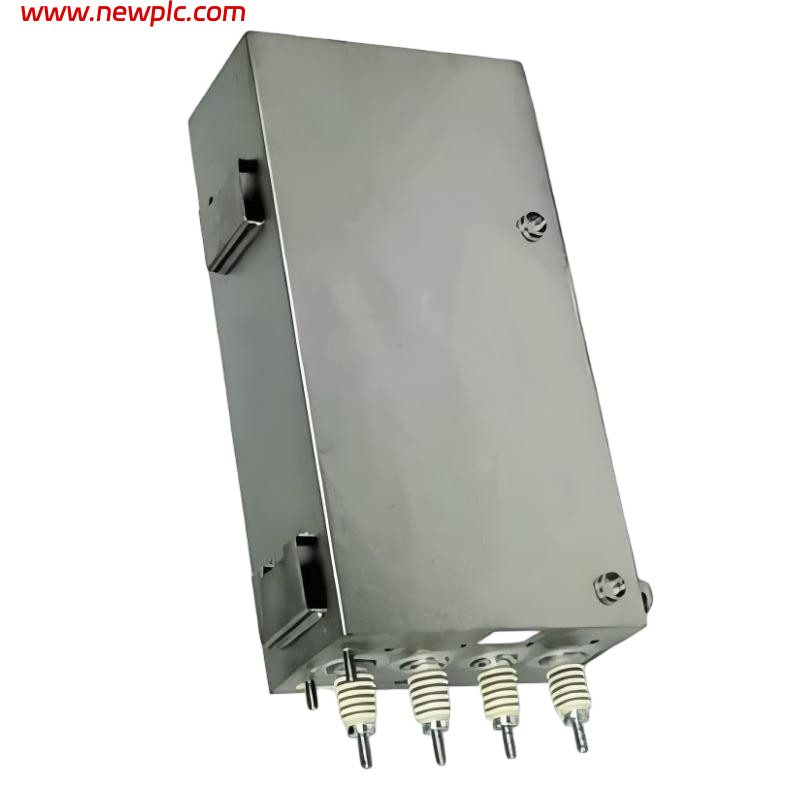

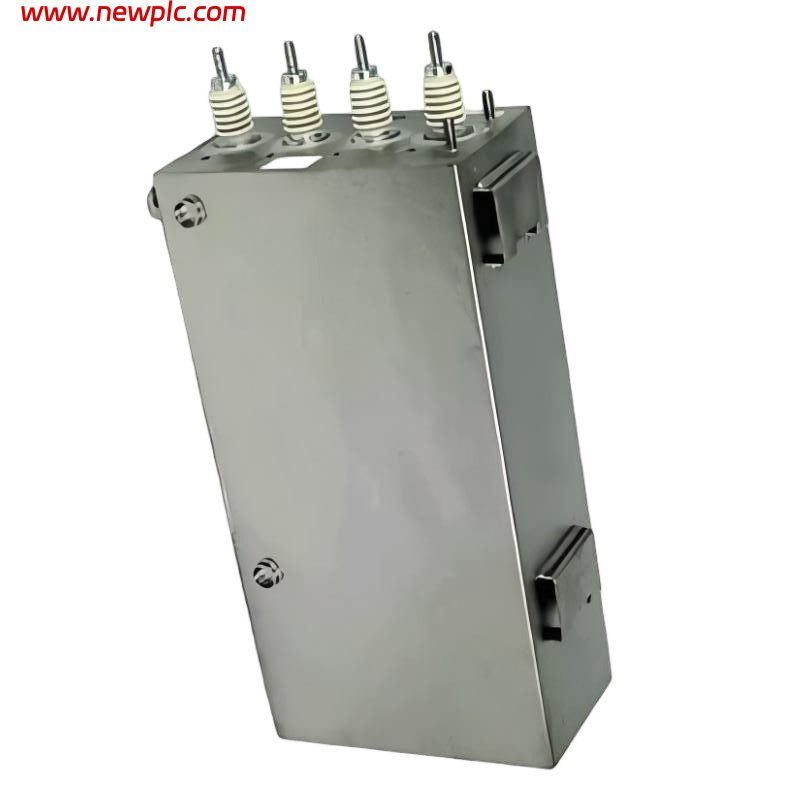

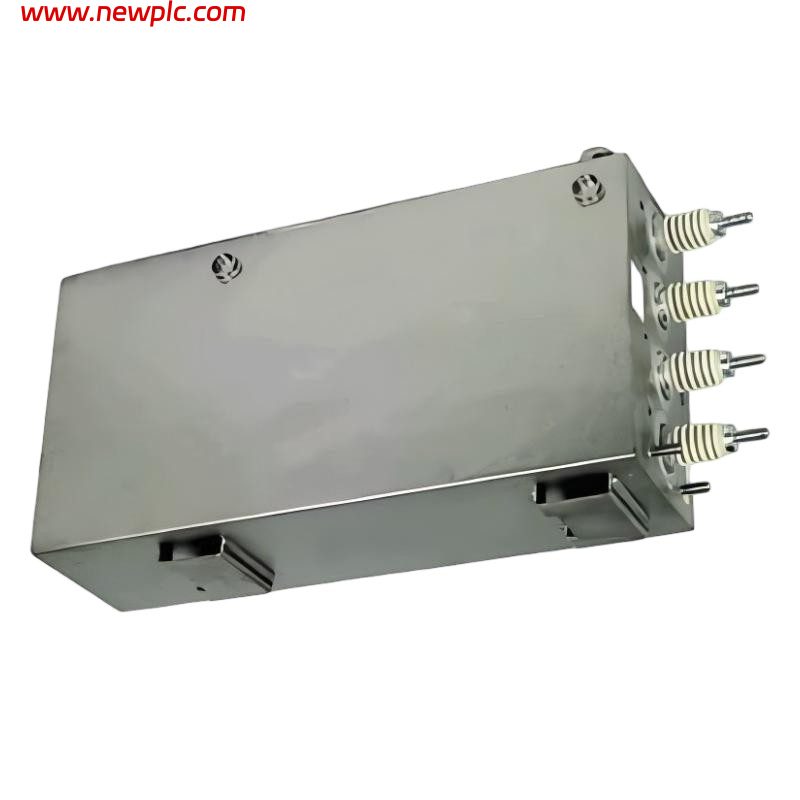

| Product Model | ABB 3BHL000250P0001 |
| ABB Type Designation | 3x85uF, 3350V |
| Manufacturer | ABB |
| Product Type | Filter Capacitor |
| Product Series | ACS1000 Medium Voltage Drive Spare Parts |
| Function | Provides DC/AC filtering and energy storage functions within ABB medium voltage drive systems |
| Application | ABB ACS1000 medium voltage AC drive systems, industrial motor control applications |
| Capacitance | 3 × 85 μF |
| Rated Voltage | 3350 V |
| Voltage Class | Approx. 4.0 kV RMS phase-to-phase |
| Capacitor Type | Fixed Filter Capacitor |
| Configuration | Three capacitor elements integrated as a filter capacitor assembly |
| Main Function | Reduces voltage ripple, stabilizes power conversion circuits, and supports drive performance |
| Compatible Equipment | ABB ACS1000 medium voltage AC drives |
| Installation Type | Internal installation inside medium voltage drive cabinet |
| Mounting Method | Fixed mechanical mounting inside drive assembly |
| Dielectric / Construction | Industrial high-voltage capacitor design |
| Protection Design | Designed for medium voltage power conversion applications |
| Replacement Part | Replaces ABB old part number HL000250P0001 |
| Country of Origin | Czech Republic |
| Dimensions | Approx. 420 × 180 × 180 mm |
| Weight | Approx. 61–70 kg |
FAQ
FAQ
Q1: What is the ABB 3BHL000250P0001 used for?
A: The ABB 3BHL000250P0001 is a high-voltage filter capacitor used in ABB ACS1000 medium voltage drive systems to improve power quality and stabilize the converter circuit.
Q2: What is the capacitance value of ABB 3BHL000250P0001?
A: The capacitor has a capacitance configuration of 3 × 85 μF with a rated voltage of 3350 V.
Q3: Which ABB equipment is compatible with 3BHL000250P0001?
A: This capacitor is mainly used in ABB ACS1000 medium voltage AC drive systems and related power conversion equipment.
Q4: Is ABB 3BHL000250P0001 a standard low-voltage capacitor?
A: No. It is a medium-voltage filter capacitor designed for high-power industrial drive applications.
Q5: What is the function of a filter capacitor in an ACS1000 drive?
A: The filter capacitor helps smooth electrical waveforms, reduce voltage fluctuations, and improve the stability and efficiency of the power conversion system.
Q6: What are the dimensions and weight of ABB 3BHL000250P0001?
A: The approximate dimensions are 420 × 180 × 180 mm, and the weight is around 61–70 kg depending on packaging and product configuration.
Q7: Can ABB 3BHL000250P0001 replace another capacitor directly?
A: Replacement should only be performed after confirming the complete part number, voltage rating, capacitance value, mechanical size, and compatibility with the existing ABB drive system.
Q8: What should be checked before installing ABB 3BHL000250P0001?
A: Check the drive model, capacitor specifications, mounting position, electrical connections, and ensure the medium voltage system is fully isolated before installation.
