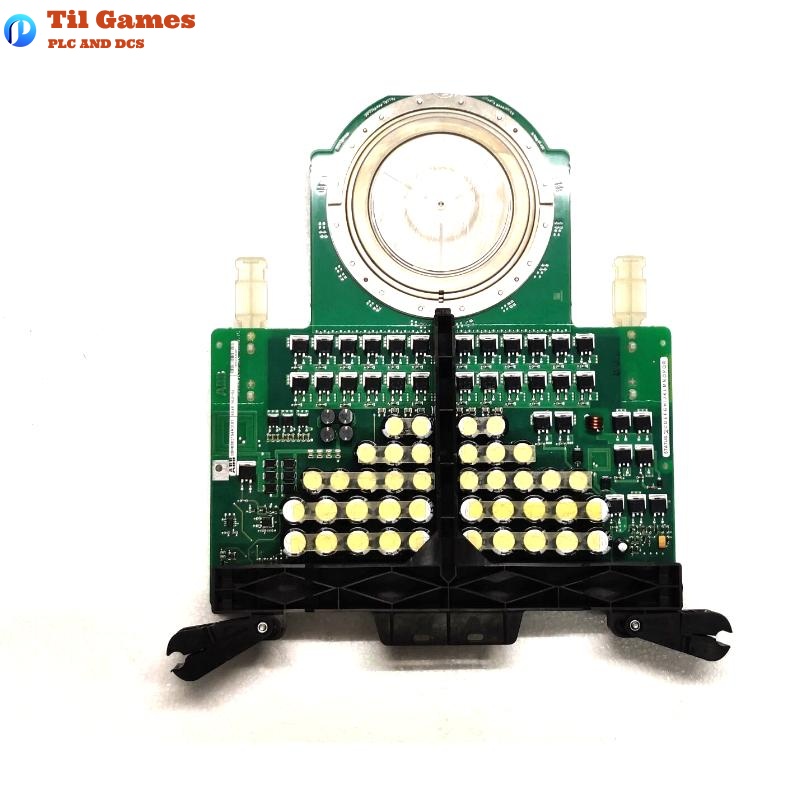

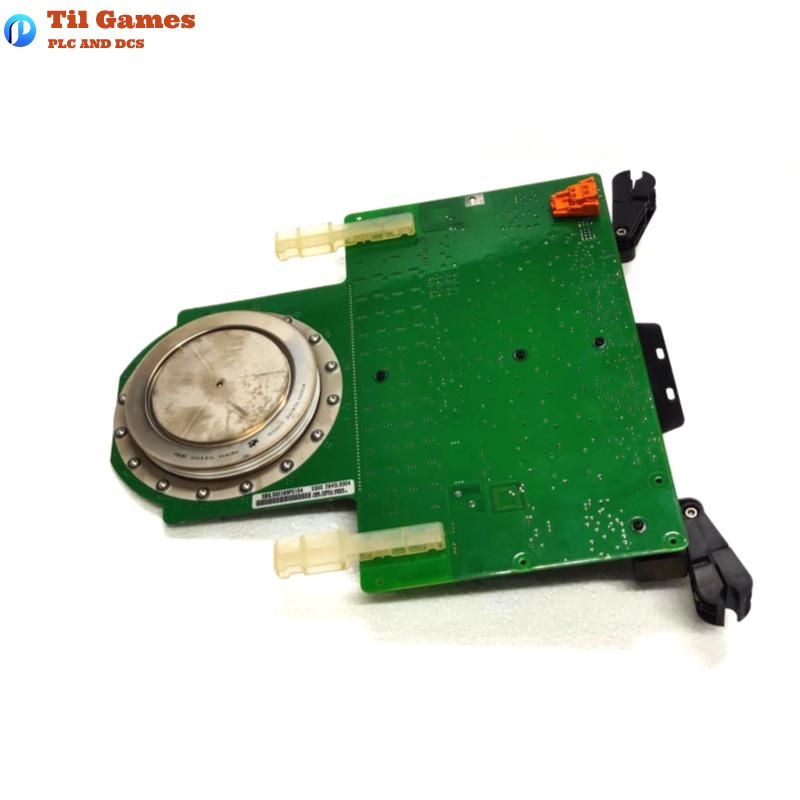

ABB 5SHX2645L0004 3BHL000389R0104 IGCT-RC Module

FAQ

Q1: What are the main applications of this IGCT module?
A1: It is mainly used in high-voltage, high-current industrial converters, grid commutators, and drive systems.

Q2: What is the voltage and current rating of the module?
A2: The rated voltage is 4500V and the rated current is 4000A.

Q3: What is the packaging and cooling method used?
A3: It uses a flat ceramic package and forced air cooling.

Q4: What is the mounting method for the module?
A4: The module is mounted using bolts, making it suitable for industrial fastening structures.

Q5: How does IGCT differ from traditional GTO or IGBT?
A5: IGCTs offer faster switching, higher voltage capacity, and better thermal stability than GTOs. Compared to IGBTs, IGCTs are better suited for high-voltage, heavy-duty applications.

Q6: What are the dimensions and weight of the module?
A6: The dimensions are 140 × 62 × 30 mm and the weight is 0.4 kg.

Q7: Can the module be used in redundant systems?
A7: Yes, it is suitable for power systems and drives that require high reliability and redundancy.

Q8: Does the product feature over-temperature protection?
A8: The module itself does not have built-in smart over-temperature protection. External temperature monitoring and control circuits are typically required in system design.
