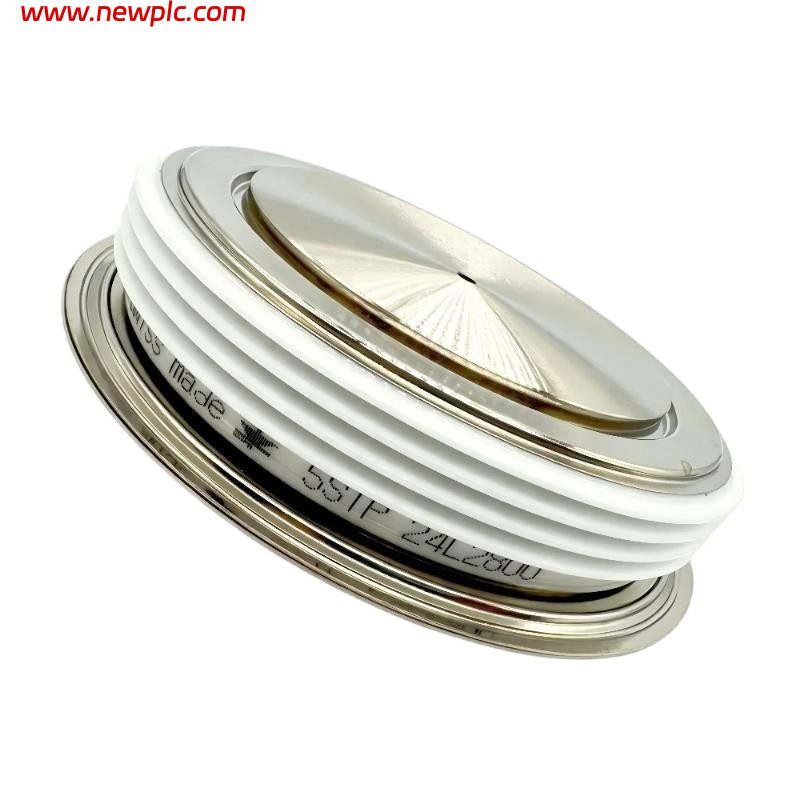

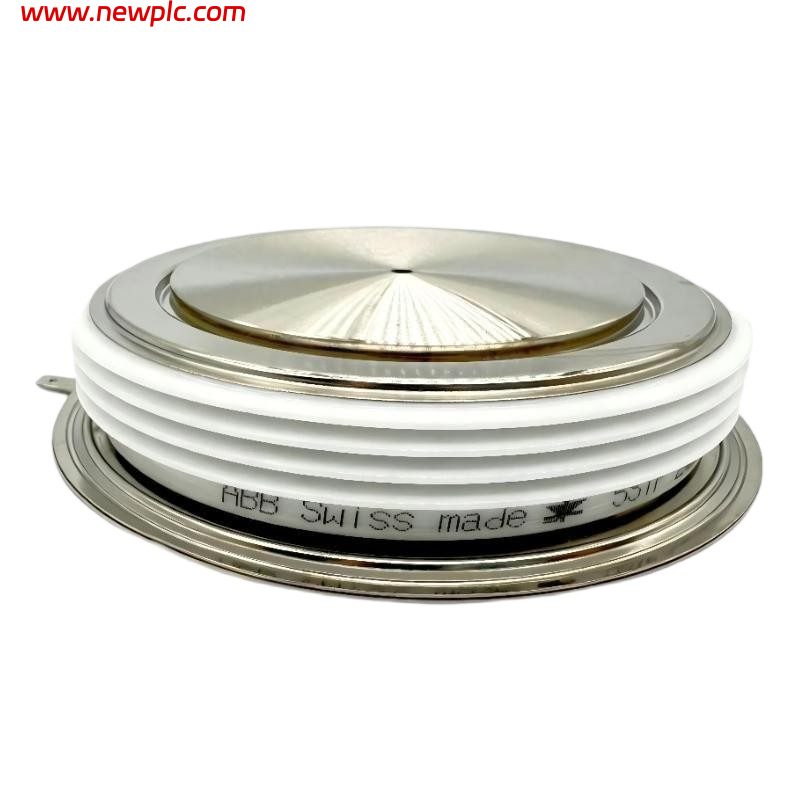

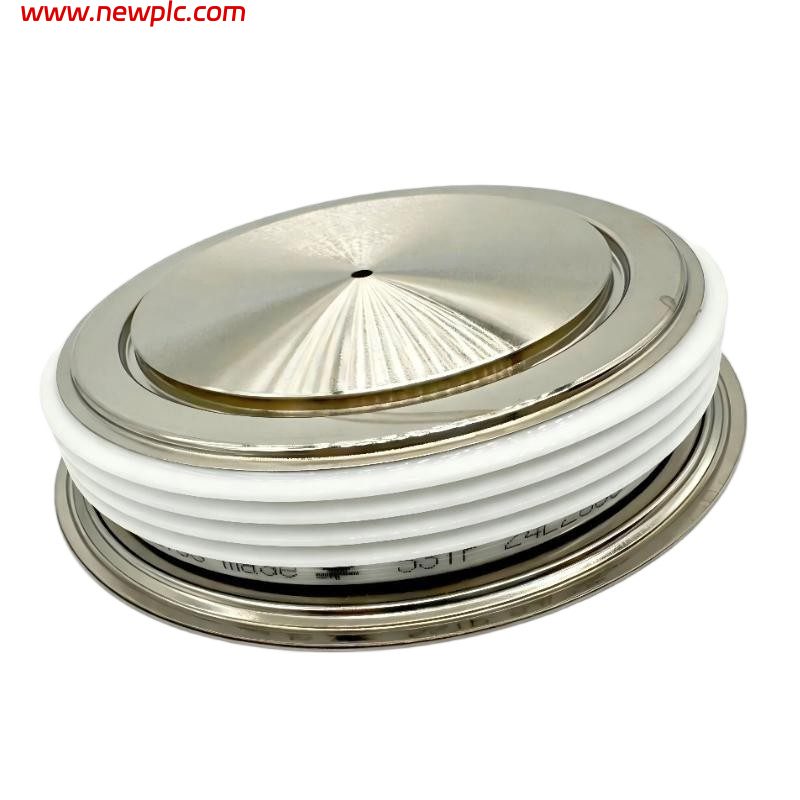

ABB 5STP24L2800 High Power Thyristor Module (PCT Thyristor)

FAQ

Q1: What is the ABB 5STP24L2800?
A1: The ABB 5STP24L2800 is a high-power phase control thyristor (PCT) module used in industrial power conversion and DC drive systems.

Q2: What is the main function of this thyristor module?
A2: It controls high-power electrical current switching in rectifier and converter circuits, allowing controlled conversion of AC power into DC power.

Q3: Is 5STP24L2800 an IGBT module?
A3: No. It is a thyristor module, not an IGBT. ABB documentation classifies this part as a THYRISTOR, PCT.

Q4: Which ABB systems use this thyristor module?
A4: It is used in ABB DCS500/DCS600 DC drive power converters, including converter modules such as DCSxxx-2500 and DCSxxx-3200.

Q5: What are the main electrical ratings of the 5STP24L2800?
A5: The module has a voltage rating of approximately 2800 V repetitive peak reverse voltage (VRRM) and a high current capability suitable for industrial power conversion applications.

Q6: How is the thyristor module cooled?
A6: It requires proper heatsink installation with forced-air or equivalent cooling to dissipate heat during high-current operation.

Q7: What is the replacement part number for 5STP24L2800?
A7: The ABB spare part replacement reference is DCA0016169P1.

Q8: What are the dimensions and weight of 5STP24L2800?
A8: The approximate dimensions are 190 × 140 × 70 mm, and the net weight is approximately 1.35 kg.

5STP24L2800 ABB
