Technical Specifications
| Parameter | Description |
|---|---|

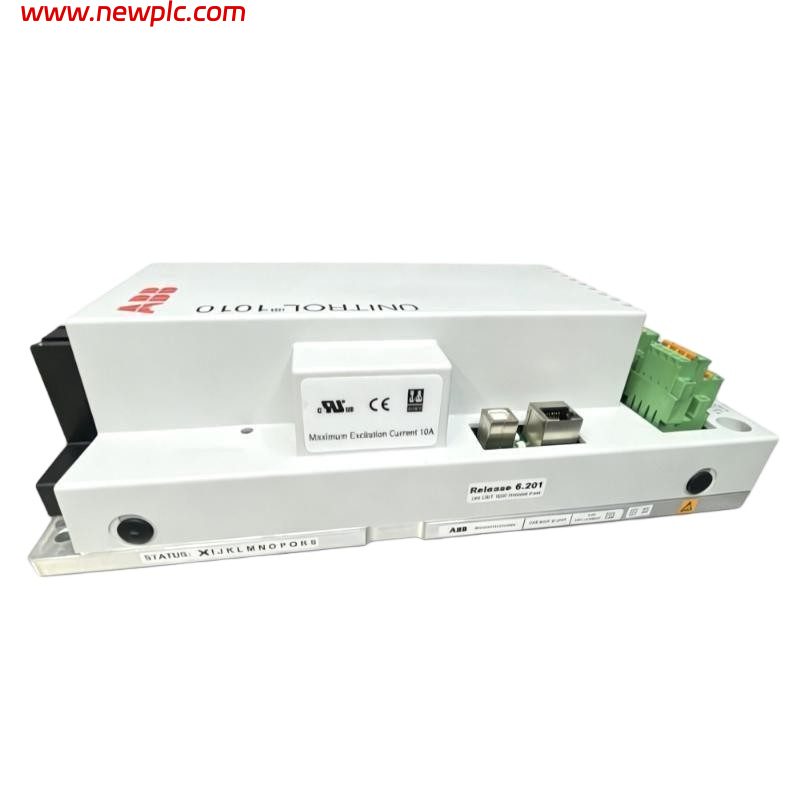

| Product Name | ABB UNITROL 1010 Automatic Voltage Regulator |

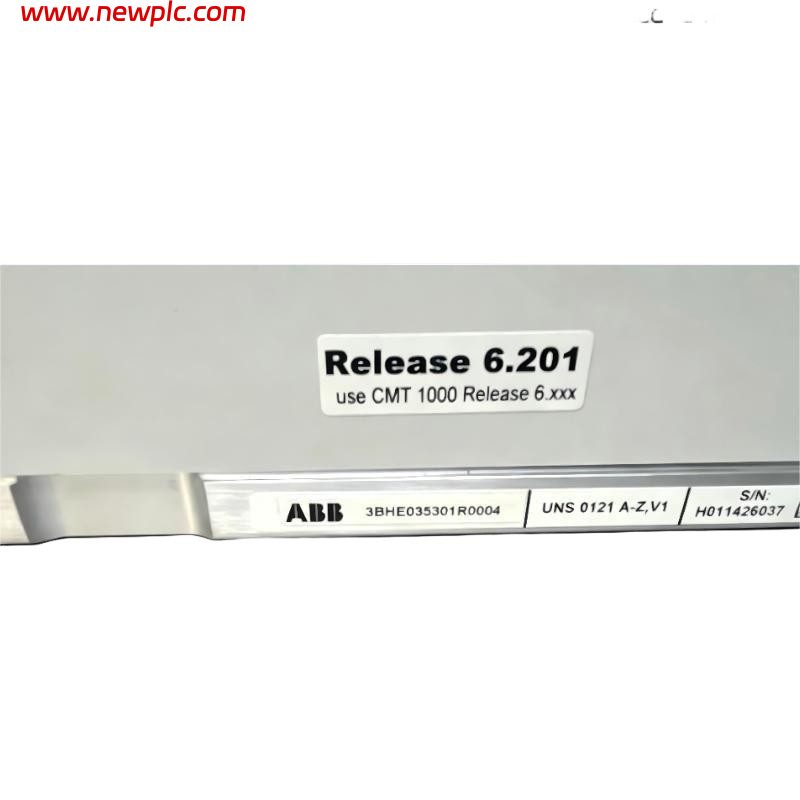

| Part Number | UNS 0121 A-Z, V1 |
| Product ID | 3BHE035301R0004 |
| Product Type | Digital Automatic Voltage Regulator (AVR) / Excitation Control Unit |
| Manufacturer | ABB |
| Series | UNITROL 1010 Excitation System |
| Function | Controls generator excitation current to maintain stable terminal voltage and provide automatic voltage regulation for synchronous generators |
| Application | Power Generation, Hydro Generators, Turbo Generators, Industrial Synchronous Machines, Small and Medium Generator Excitation Systems |
| Control Technology | DSP-based digital control with IGBT power electronics |
| Generator Voltage Input | 100–690 VAC, 50/60 Hz |
| Auxiliary Supply Input | 24–250 VAC/DC |
| Field Output Voltage | 10–250 V DC |
| Continuous Field Current | 8–10 A DC |
| Peak Field Current | Up to 16–20 A DC |
| Control Modes | Automatic Voltage Regulation (AVR), Power Factor Control, Reactive Power Control, Manual Excitation Control |
| Communication Interfaces | Ethernet, USB, and optional fieldbus communication |
| Protection Functions | Over-excitation protection, under-excitation protection, overload protection, short-circuit protection |
| Synchronization Function | Integrated synchronization support |
| Design | Compact modular excitation controller |
| Mounting Type | Cabinet mounting |
| Product Category | ABB Excitation System Spare Part |
| Dimensions | Approx. 210 × 120 × 260 mm |
| Weight | Approx. 3.0 kg |
FAQ
FAQ
Q1: What is the ABB UNS 0121 A-Z, V1 3BHE035301R0004?
A1: It is an ABB UNITROL 1010 automatic voltage regulator (AVR) used for digital excitation control and generator voltage regulation.
Q2: What is the main function of this unit?
A2: The unit controls the generator excitation current to maintain stable output voltage and improve generator performance under changing load conditions.
Q3: Is UNS 0121 A-Z, V1 a PLC module?
A3: No. It is not a PLC or DCS I/O module. It is an excitation controller / automatic voltage regulator used in generator excitation systems.
Q4: Which ABB system does this module belong to?
A4: It belongs to the ABB UNITROL 1010 excitation system platform.
Q5: What generators can use the UNITROL 1010 controller?
A5: It is designed for small and medium-sized synchronous generators and industrial rotating machines requiring precise excitation control.
Q6: What control modes are supported?
A6: It supports automatic voltage regulation (AVR), power factor control, reactive power control, and manual excitation control modes.
Q7: What protection functions are included?
A7: The controller provides generator protection functions including over-excitation, under-excitation, overload, and short-circuit protection.
Q8: What are the dimensions and weight of UNS 0121 A-Z, V1?
A8: The approximate dimensions are 210 × 120 × 260 mm, and the weight is approximately 3.0 kg.
