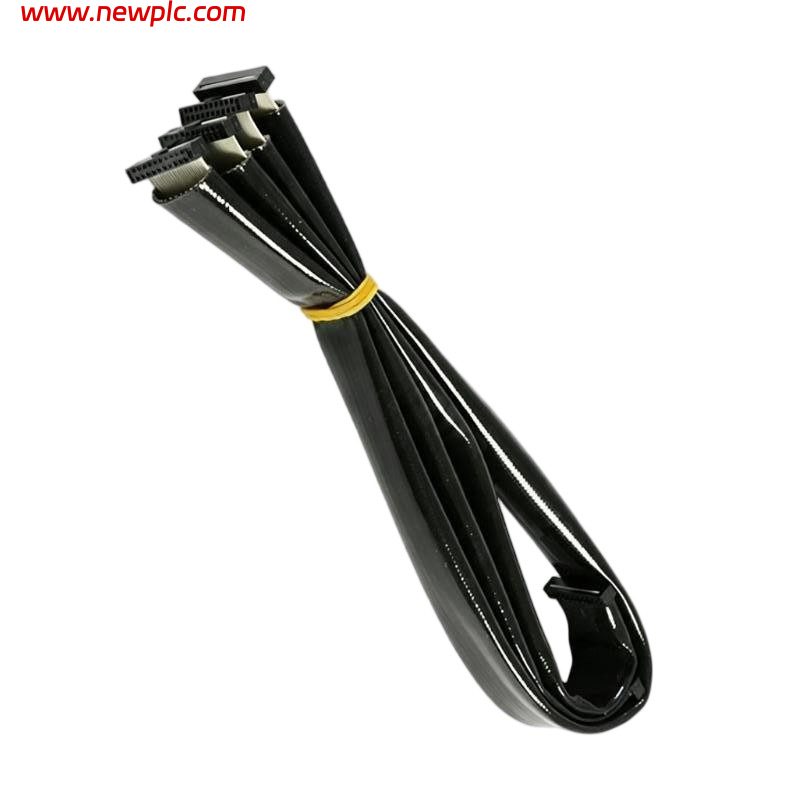

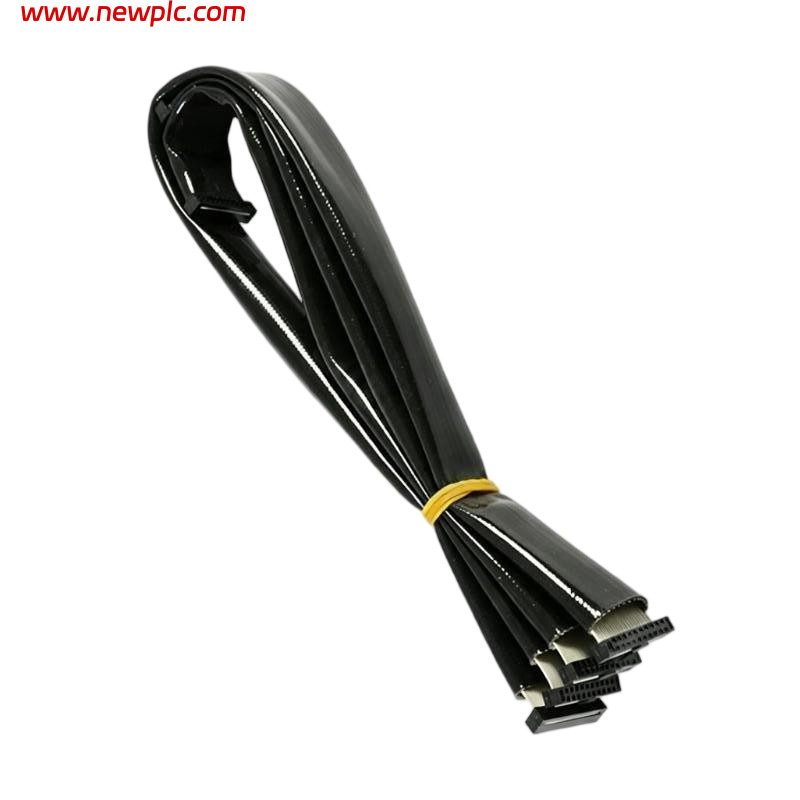

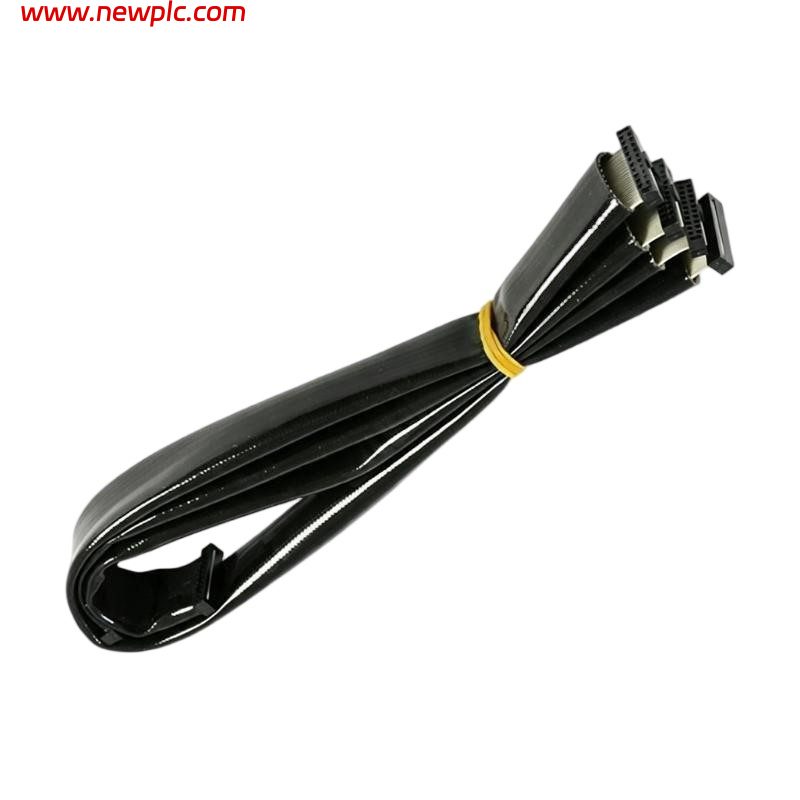

ABB 68692172 IGBT Ribbon Cable / Flat Cable Set

FAQ

Q1: What is ABB 68692172?
A: It is an IGBT control ribbon cable / flat cable set for ABB ACS800-104 R8i drive modules.

Q2: Which drive does it fit?
A: It is designed for ABB ACS800-104 multidrive modules, specifically the R8i 400–690 V, 3×IGBT configuration.

Q3: What is the function of this cable?
A: It carries the IGBT gate-control signals between the AINT interface board and AGDR gate-driver boards.

Q4: Is 68692172 a circuit board?
A: No. It is a flat ribbon cable / wire set, used as an internal connection between drive control hardware.

Q5: How many IGBT channels does it support?
A: The ABB designation specifies 3×IGBT.

Q6: What voltage class is it for?
A: It is specified for 400–690 V R8i ACS800-104 modules.

Q7: What are the dimensions and weight?
A: ABB’s public product sheet does not provide reliable overall cable dimensions. A supplier listing gives approximately 0.13 kg for the cable set.

Q8: Is 68692172 interchangeable with 68870089?
A: No, they should not be treated as interchangeable. ABB specifies 68692172 for R8i 400–690 V 3×IGBT, while 68870089 is for R8i 400–690 V 2×IGBT.
