Technical Specifications
| Parameter | Specification |
|---|---|

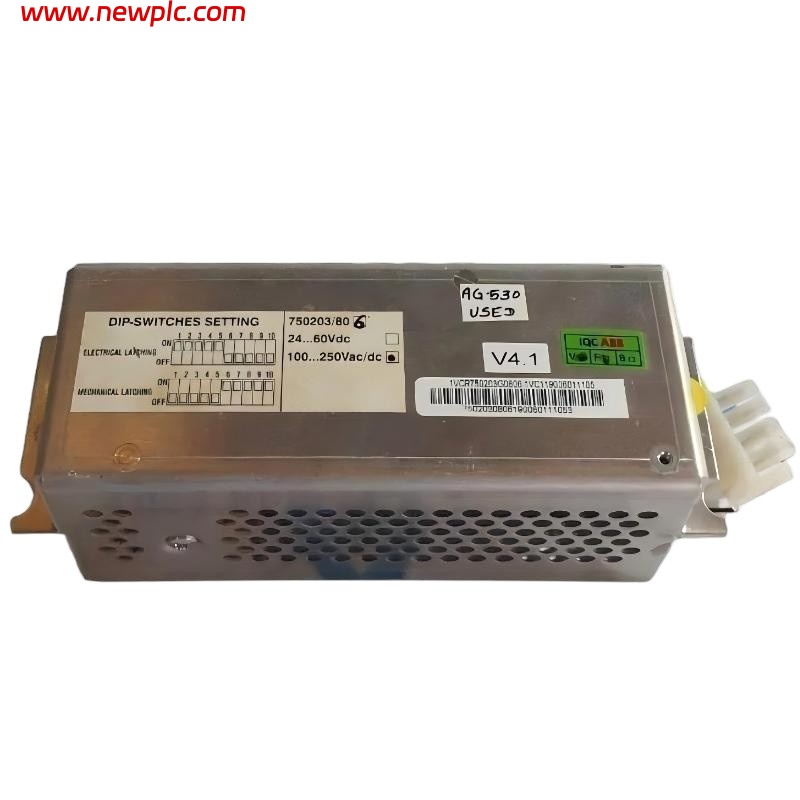

| Product Model | ABB 750203/806 |
| Product ID | 1VCR750203G0806 |
| Product Type | Control / Interface Module |
| Application | Used in ABB medium-voltage contactor and switchgear systems |
| Function | Signal interface and control for electrical switching operations |
| Compatible Equipment | ABB VSC / VCS medium-voltage contactors and switchgear |
| Control Voltage | Typically 24 V DC for control circuits |
| Signal Type | Digital control and feedback signals |
| Installation Type | Plug-in control module |
| Mounting Location | Inside control compartment of switchgear or contactor cabinet |
| Cooling Method | Passive, via enclosure airflow |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H × W × D) | Approximately 160 × 95 × 35 mm |
| Weight | Approximately 0.35 kg |
| Protection Class | Dependent on switchgear enclosure (typically IP20) |
| Compliance Standards | IEC switchgear standards, CE, RoHS |
FAQ
FAQ
Q1. What is the primary function of the ABB 750203/806 module?
It serves as a control and interface module, managing digital control and feedback signals for medium-voltage contactors and switchgear systems.
Q2. Which equipment is compatible with this module?
The module is used with ABB VSC and VCS medium-voltage contactors and associated switchgear.
Q3. What control voltage does it use?
It typically operates with a 24 V DC control voltage.
Q4. Can the module be replaced independently?
Yes. It is designed as a modular component and can be replaced without replacing the entire switchgear unit.
Q5. Where is the module installed?
The module is mounted inside the control compartment of the switchgear or contactor cabinet.
Q6. Does it require active cooling?
No. It relies on passive cooling via airflow within the switchgear enclosure.
Q7. What environmental conditions is it rated for?
The module operates in industrial conditions with temperatures from -25°C to +70°C and can be stored at -40°C to +85°C.
Q8. What precautions should be taken during installation?
Power to the switchgear must be completely disconnected, and proper electrostatic discharge (ESD) protection should be used when handling the module.
