Technical Specifications
| Parameter | Specification |
|---|---|

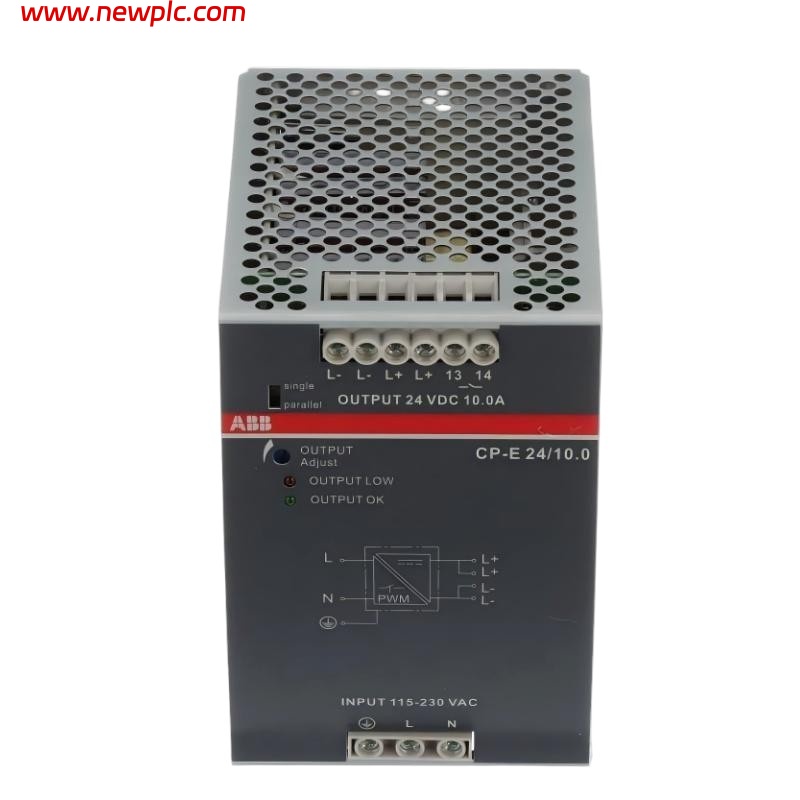

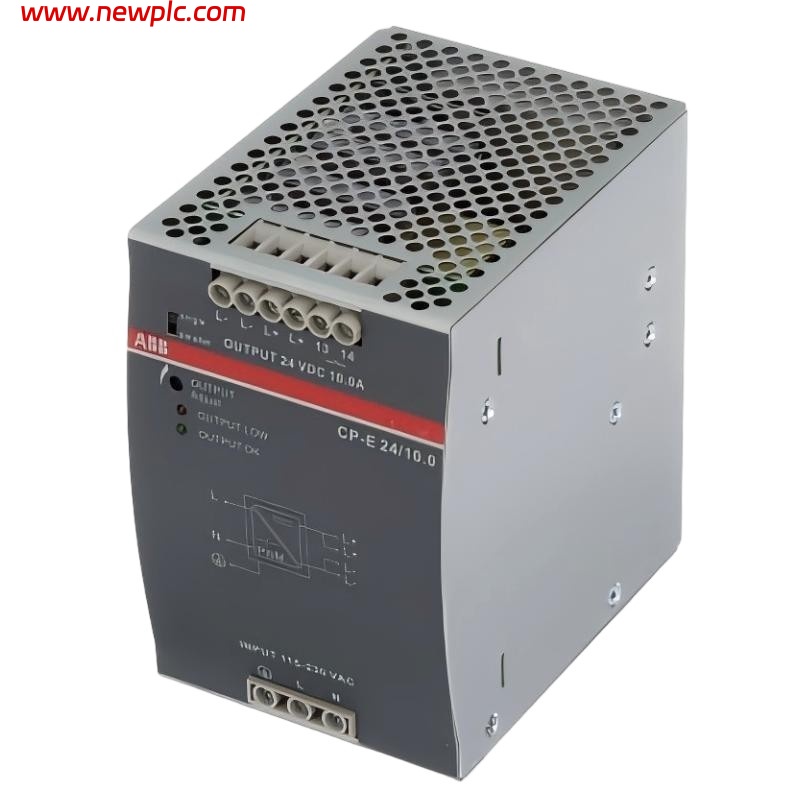

| Product Model | ABB CP-E 24/10.0 |
| Product ID | 1SVR427035R0000 |
| Product Type | Switch Mode Power Supply |
| Product Series | CP-E Power Supply Series |
| Input Voltage | 90–132 V AC / 180–264 V AC / 210–375 V DC |
| Rated Input Voltage | 115 / 230 V AC (auto-select) |
| Input Frequency | 47–63 Hz |
| Output Voltage | 24 V DC |
| Adjustable Output Voltage | 22.5 – 28.5 V DC |
| Rated Output Current | 10 A |
| Rated Output Power | 240 W |
| Efficiency | Up to about 90% |
| Output Characteristic | U/I characteristic |
| Parallel Operation | Up to 3 units can be connected in parallel |
| Cooling Method | Natural convection (fanless) |
| Mounting Type | DIN-rail mounting (TH35) |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W × H × D) | 83 × 123.6 × 123.6 mm |
| Weight | Approximately 1.334 kg |
| Compliance Standards | UL 508, UL 60950, IEC/EN 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, CE, RoHS |
FAQ
FAQ
Q1. What is the main function of the CP-E 24/10.0 power supply?
It converts AC or DC input power into a stable 24 V DC output for industrial control systems, PLCs, sensors, and automation equipment.
Q2. What input voltage range does this power supply support?
The unit supports a wide input range of 90–132 V AC, 180–264 V AC, or 210–375 V DC, allowing it to operate in different global power systems.
Q3. What output power can the device deliver?
It provides up to 240 W output power with a rated output current of 10 A at 24 V DC.
Q4. Is the output voltage adjustable?
Yes. The output voltage can be adjusted between 22.5 V and 28.5 V DC to suit different control applications.
Q5. How is the power supply installed in a control cabinet?

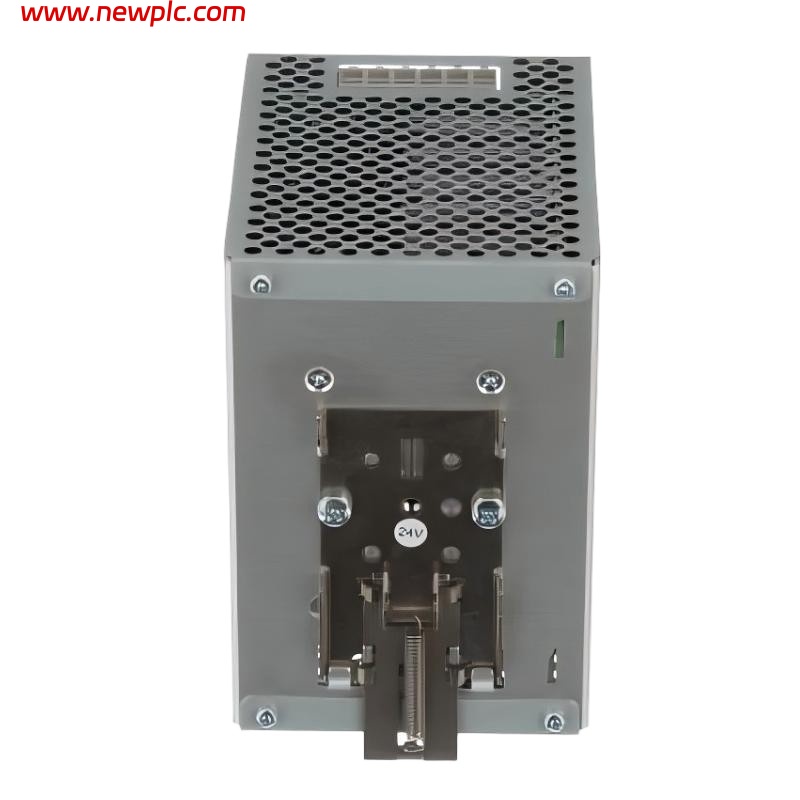

It is designed for snap-on installation on a standard DIN rail, which is common in industrial control panels.
Q6. Can multiple CP-E 24/10.0 units operate together?
Yes. Up to three units can be connected in parallel to increase the available output capacity.
Q7. Does the power supply require active cooling?
No. It uses fanless natural convection cooling, which reduces noise and maintenance requirements.
Q8. What types of protection features are included?
The unit includes protection against short circuits, overload, and overvoltage, helping maintain stable operation in industrial environments.
