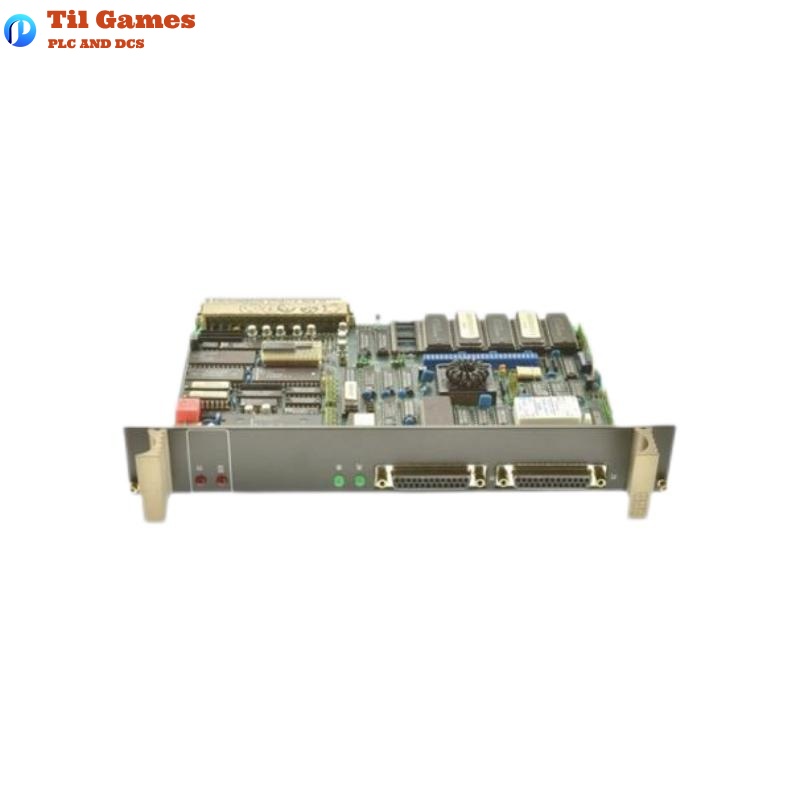

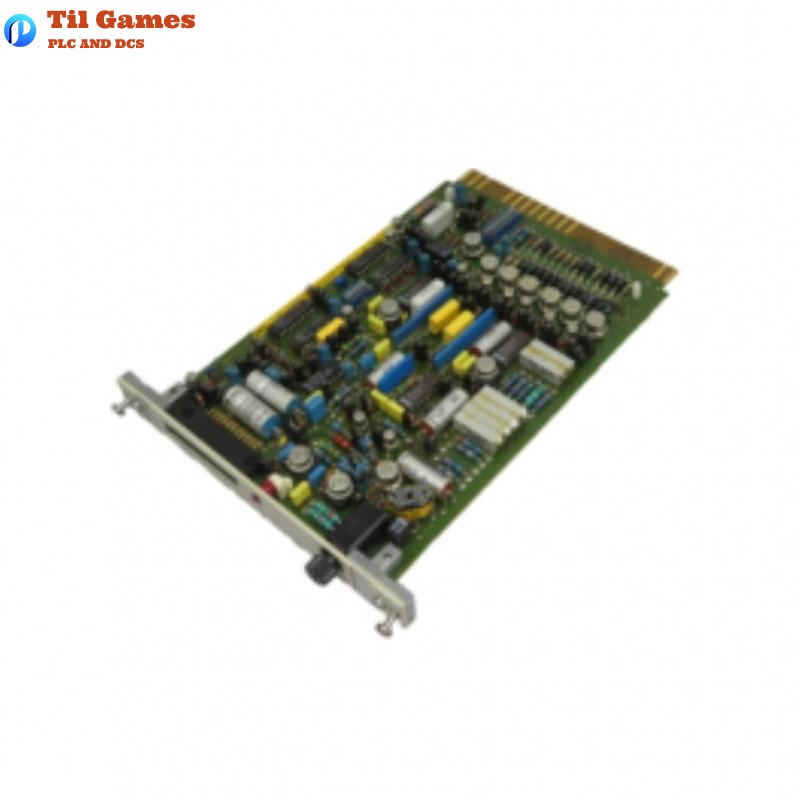

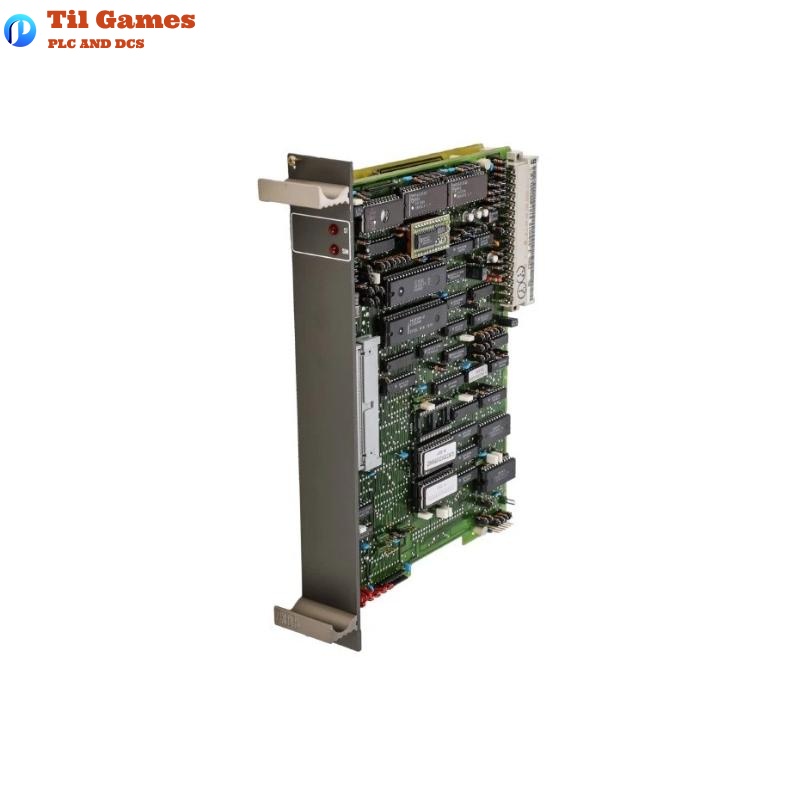

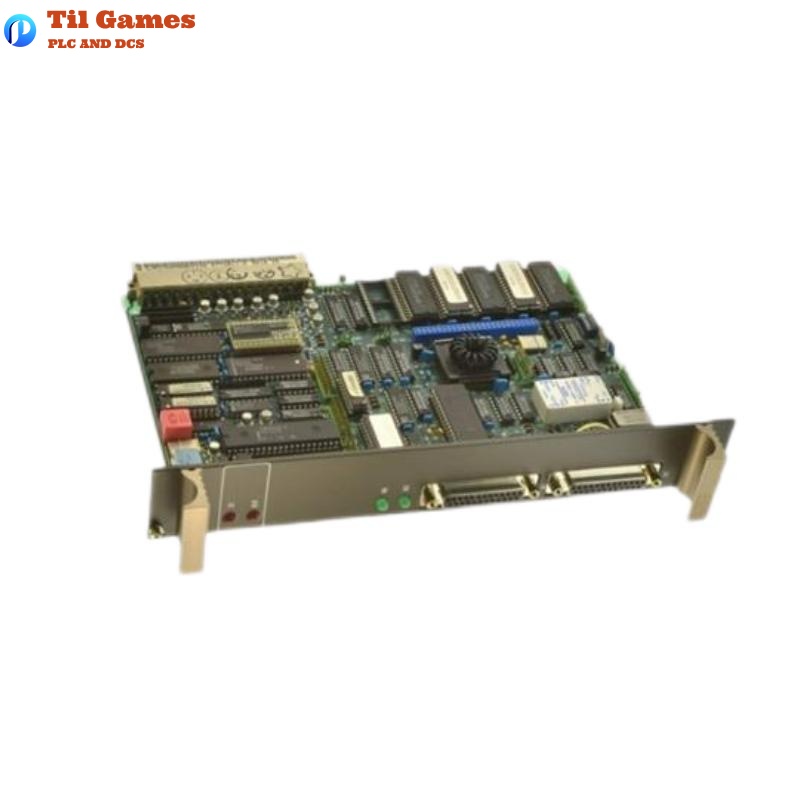

ABB 81AA02E GJR2385200R1010 Procontrol P14 Analog Signals Output Module

Frequently Asked Questions (FAQ)

Q1: What types of analog signals does this module support?
A1: It supports both ±20 mA and 0…+20 mA current outputs, configurable via DIP switches.

Q2: Are the outputs electrically isolated?
A2: Yes, each channel is isolated from the others and from the system side.

Q3: How does the module behave if the source signal fails?
A3: It can be configured to output 0 mA, 20 mA, retain the last value, or a fault value, with an ST LED indication.

Q4: Does the module support signal simulation?
A4: Yes, signal simulation can be triggered from the operator station, with the SIM LED showing simulation status.

Q5: Is remote diagnosis possible?
A5: Yes, diagnostic registers can be accessed by the operator station for real-time monitoring and analysis.

Q6: What is the module’s total output error?
A6: ±0.42% in ±20 mA mode, and ±0.31% in 0…20 mA mode.

Q7: Are the output channels short-circuit and open-circuit protected?
A7: Yes, the outputs are both short-circuit-proof and open-circuit-proof.

Q8: Where can this module be installed?
A8: It is suitable for multipurpose stations in the PROCONTROL P system and supports hot swapping.

81AA02E ABB Analog Signals Output Module GJR2385200R1010 Procontrol P14
