Technical Specifications
| Parameter | Description |
|---|---|

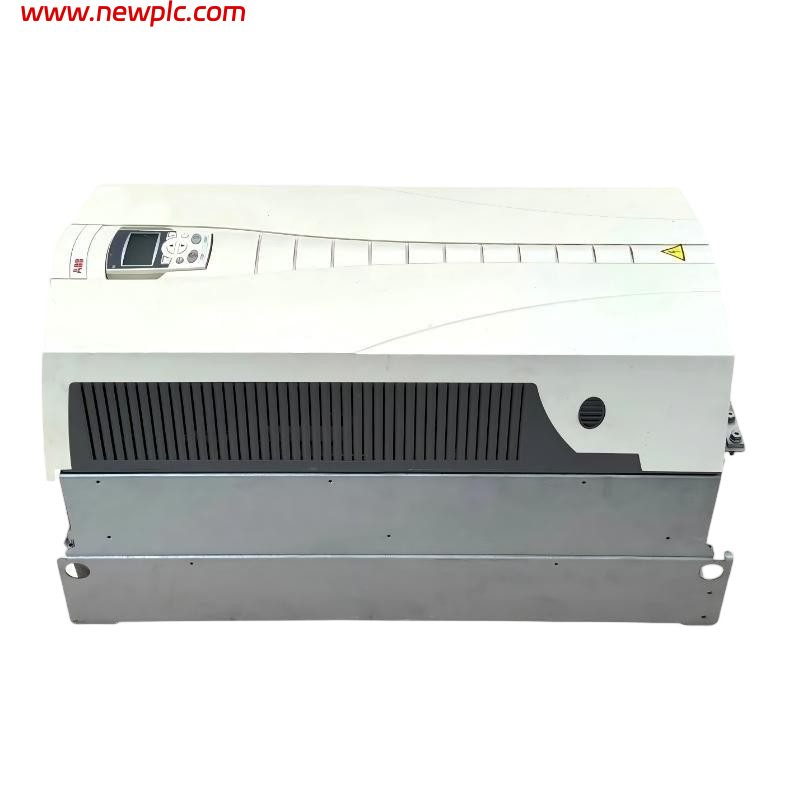

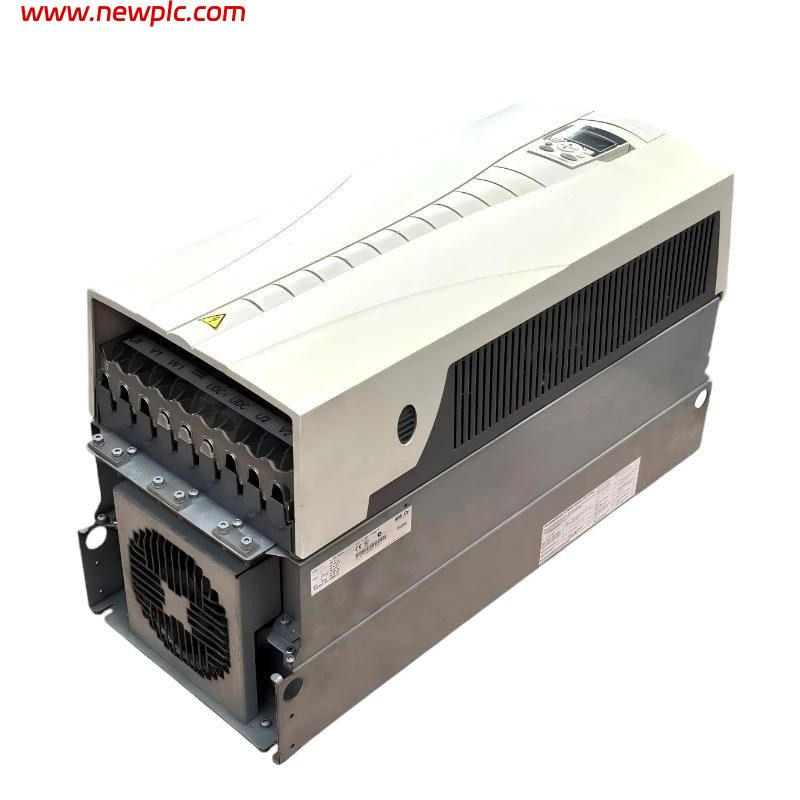

| Product Name | ABB ACS550 General Purpose Drive |
| Part Number | ACS550-01-180A-4 |
| Product ID | 3ABD64726838 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS550 |
| Function | General-purpose AC drive for speed control of standard induction motors in industrial applications |
| Application | Pumps, Fans, Conveyors, Compressors, Mixers, Material Handling, HVAC, Water Treatment, and General Industrial Automation |
| Rated Motor Power (Normal Duty) | 90 kW (125 HP) |
| Rated Output Current | 180 A |
| Heavy-Duty Motor Power | 75 kW (100 HP) |
| Heavy-Duty Output Current | 156 A |
| Input Voltage | 3 × 380–480 VAC |
| Input Frequency | 50/60 Hz (±5%) |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Scalar (V/Hz) Control and Sensorless Vector Control |
| Communication | Built-in RS-485 Modbus RTU |
| Control Interface | 2 Analog Inputs, 6 Digital Inputs, 2 Analog Outputs, Relay Outputs |
| Built-in Features | PID Controller, Flying Start, Automatic Torque Boost, Energy Optimizer, Brake Chopper Option |
| Protection Rating | IP21 (UL Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R6 |
| Operating Temperature | -15°C to +40°C (without derating) |
| Certifications | CE, UL, cUL, RoHS |
| Dimensions | 1090 × 410 × 550 mm (H × W × D) |
| Weight | 69 kg |
FAQ
FAQ
Q1: What is the ABB ACS550-01-180A-4?
A1: The ABB ACS550-01-180A-4 is a general-purpose low-voltage AC drive designed for controlling the speed and torque of induction motors in industrial applications.
Q2: What does Product ID 3ABD64726838 represent?
A2: 3ABD64726838 is the ABB Product ID for the ACS550-01-180A-4, a 380–480 VAC, 180 A general-purpose frequency converter.
Q3: What motor size can this drive control?
A3: The drive supports 90 kW (125 HP) motors in normal-duty operation with a rated output current of 180 A. For heavy-duty applications, it supports approximately 75 kW (100 HP) motors.
Q4: What input power supply is required?
A4: The ACS550-01-180A-4 requires a three-phase 380–480 VAC power supply with a frequency range of 50/60 Hz.
Q5: Which motor control methods are supported?
A5: It supports both Scalar (V/Hz) control and Sensorless Vector Control, providing stable speed regulation for a wide range of industrial applications.
Q6: Does it support industrial communication?
A6: Yes. The drive includes built-in RS-485 Modbus RTU communication and provides standard control I/O interfaces for industrial automation systems.
Q7: What are the physical dimensions of the drive?
A7: The ACS550-01-180A-4 has approximate dimensions of 1090 × 410 × 550 mm (H × W × D).
Q8: What is the weight of the drive?
A8: The drive has an approximate net weight of 69 kg.
