Technical Specifications
| Parameter | Description |
|---|---|

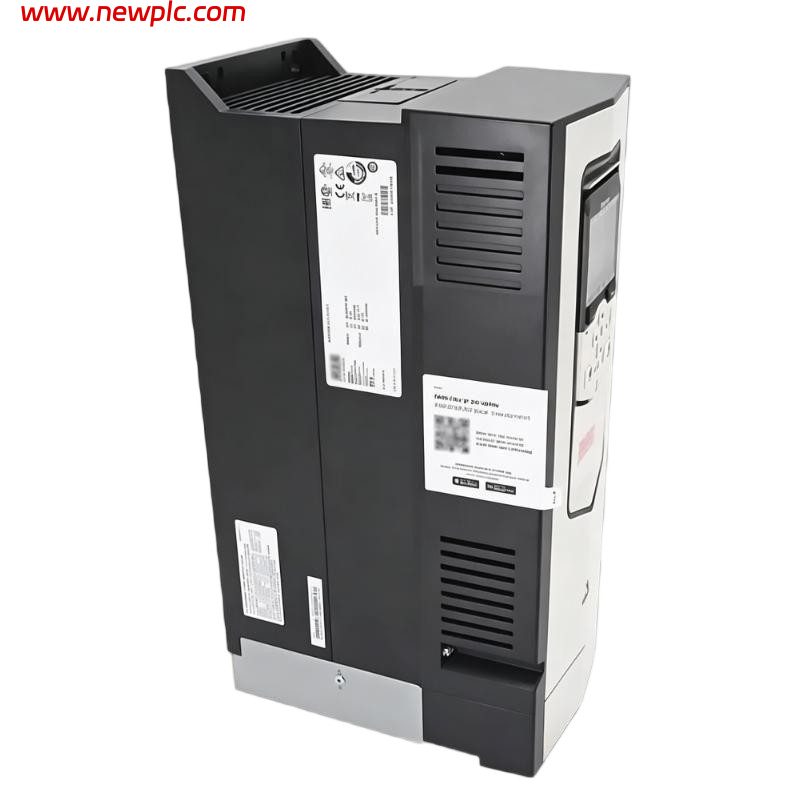

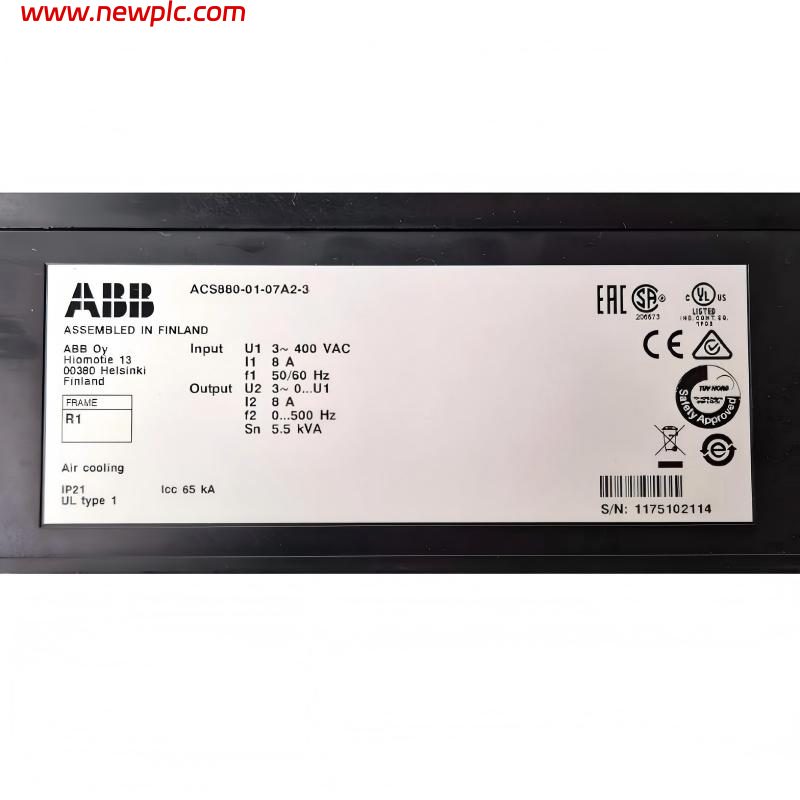

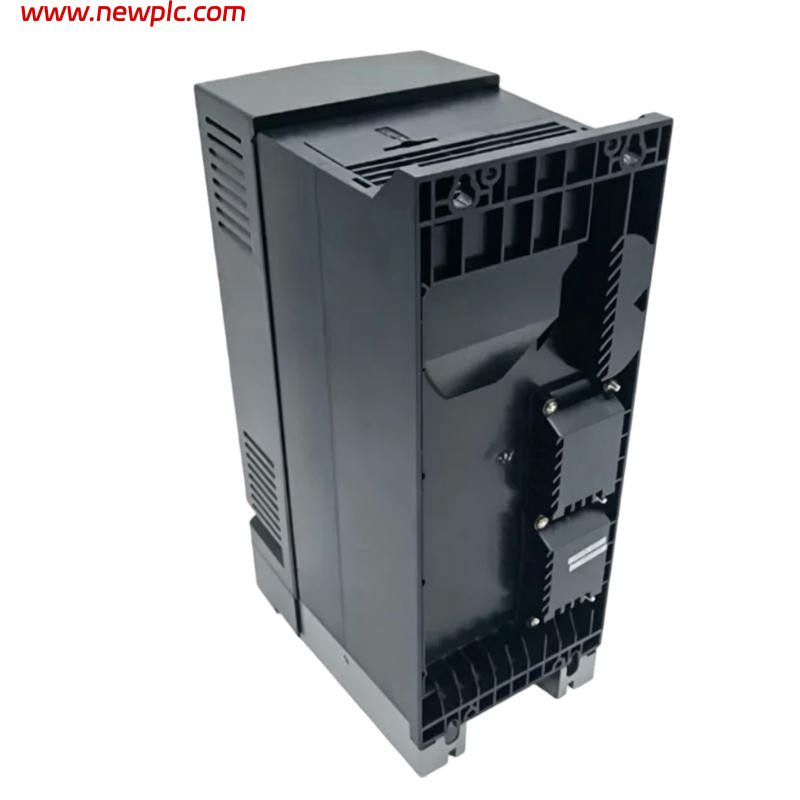

| Product Name | ABB ACS880 Industrial Drive |
| Part Number | ACS880-01-07A2-3 |
| Product ID | 3AUA0000107988 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS880 |
| Function | High-performance industrial AC drive for precise speed and torque control of induction motors, permanent magnet motors, and synchronous reluctance motors |
| Application | Pumps, Fans, Conveyors, Compressors, Mixers, Extruders, Cranes, Hoists, Material Handling, Marine, Mining, Metals, Chemical, Oil & Gas, Food & Beverage, Water Treatment, and General Industrial Automation |
| Rated Motor Power (Normal Duty) | 3 kW (4 HP) |
| Rated Output Current (Normal Duty) | 8.0 A |
| Light-Overload Output Current | 7.6 A |
| Heavy-Duty Output Current | 5.6 A |
| Heavy-Duty Motor Power | 2.2 kW |
| Input Voltage | 3 × 380–415 VAC |
| Input Frequency | 50/60 Hz (±5%) |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Direct Torque Control (DTC) and Scalar (V/Hz) Control |
| Built-in Communication | USB, RS-485 (Modbus RTU) |
| Optional Communication | PROFINET IO, EtherNet/IP, PROFIBUS DP, CANopen, DeviceNet, Modbus TCP |
| Built-in Features | Safe Torque Off (STO), Integrated Harmonic Filtering Choke, PID Controller, Energy Optimizer, Adaptive Programming, Optional Brake Chopper and EMC Filter |
| Protection Rating | IP21 (UL Type 1) |
| Cooling Method | Air-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R2 |
| Operating Temperature | -15°C to +40°C (without derating) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 409 × 155 × 226 mm (H × W × D) |
| Weight | 7 kg |
FAQ
FAQ
Q1: What is the ABB ACS880-01-07A2-3?
A1: The ABB ACS880-01-07A2-3 is a low-voltage industrial wall-mounted AC drive designed for precise speed and torque control of induction motors, permanent magnet motors, and synchronous reluctance motors. It belongs to the ACS880 series, which is designed for demanding industrial applications.
Q2: What does Product ID 3AUA0000107988 represent?
A2: 3AUA0000107988 is the ABB Product ID for the ACS880-01-07A2-3. It identifies a 400 V class, 3 kW, 8 A industrial drive model.
Q3: What motor size can this drive control?
A3: The drive is suitable for motors up to 3 kW in normal-duty operation, with a rated output current of 8.0 A. For heavy-duty applications, it supports approximately 2.2 kW motors.
Q4: What input power supply is required?
A4: The ACS880-01-07A2-3 requires a three-phase 380–415 VAC power supply with a frequency range of 50/60 Hz.
Q5: Which motor control technology does it use?
A5: It uses ABB’s Direct Torque Control (DTC) technology and supports Scalar (V/Hz) control, providing accurate motor speed and torque regulation.
Q6: What communication options are available?
A6: The ACS880 series supports industrial communication options through optional fieldbus adapters, including PROFINET IO, EtherNet/IP, PROFIBUS DP, CANopen, DeviceNet, and Modbus TCP.
Q7: What are the physical dimensions of the drive?
A7: The ACS880-01-07A2-3 has approximate dimensions of 409 × 155 × 226 mm (H × W × D).
Q8: What is the weight of the drive?
A8: The ACS880-01-07A2-3 has a net weight of approximately 7 kg.
