Technical Specifications
| Parameter | Description |
|---|---|

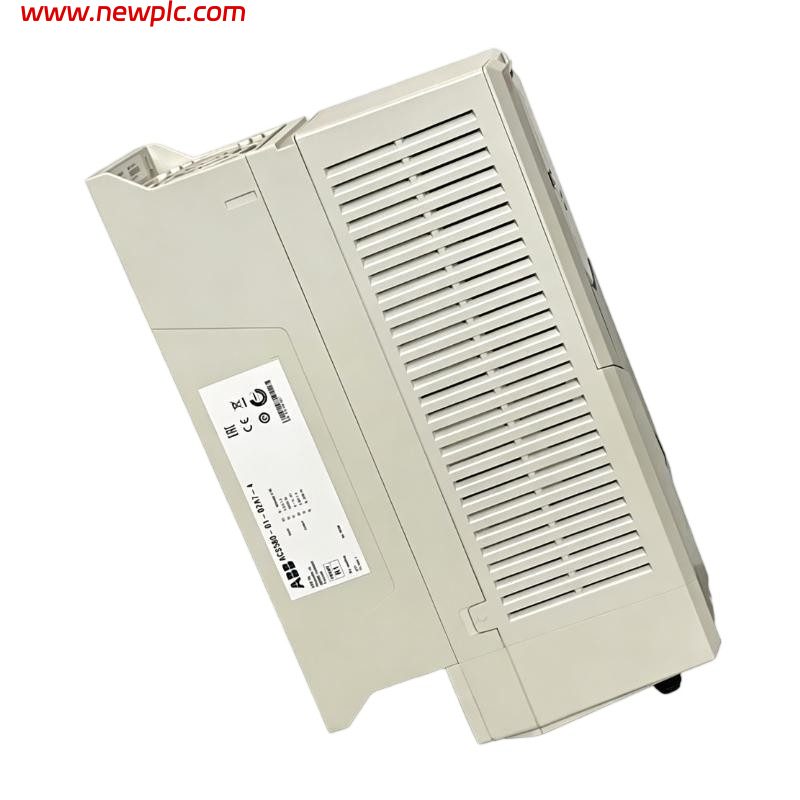

| Product Name | ABB ACS580 General Purpose Drive |
| Part Number | ACS580-01-02A7-4 |
| Product ID | 3ABD50000038937 |
| Equivalent Product ID | 3AXD50000038937 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | General-purpose AC drive for variable and constant torque applications |
| Application | Pumps, Fans, Compressors, Conveyors, Mixers, Extruders, Centrifuges, Material Handling, HVAC, Food & Beverage, Textile, Agriculture |
| Rated Motor Power | 0.75 kW (1 HP) |
| Rated Output Current | 2.6 A |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Built-in Communication | Modbus RTU (RS-485) |
| Optional Communication | PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen |
| Built-in Features | Safe Torque Off (STO), PID Controller, EMC Filter, DC Choke, Energy Optimizer, Adaptive Programming, Assistant Control Panel |
| Protection Rating | IP21 (NEMA Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R1 |
| Operating Temperature | -15°C to +50°C (derating may apply above +40°C) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 373 × 125 × 223 mm (H × W × D) |
| Weight | 5.7 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-01-02A7-4?
A1: The ABB ACS580-01-02A7-4 is a wall-mounted low-voltage general-purpose AC drive designed for pumps, fans, compressors, conveyors, mixers, and other industrial applications requiring variable- or constant-torque motor control.
Q2: What does Product ID 3ABD50000038937 represent?
A2: 3ABD50000038937 is the earlier ABB Product ID for the ACS580-01-02A7-4. The current equivalent Product ID is 3AXD50000038937, while the drive specifications and functionality remain the same.
Q3: What motor size can this drive control?
A3: The drive is rated for 0.75 kW (1 HP) three-phase motors and provides a continuous output current of 2.6 A.
Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz.
Q5: Which motor control methods are supported?
A5: The drive supports Sensorless Vector Control and Scalar (V/Hz) Control, providing reliable speed regulation and high-efficiency motor operation.
Q6: What communication options are available?
A6: Standard communication includes Modbus RTU (RS-485), with optional adapters available for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen networks.
Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-02A7-4 measures 373 × 125 × 223 mm (H × W × D).
Q8: What is the weight of the drive?
A8: The net weight of the drive is 5.7 kg.
