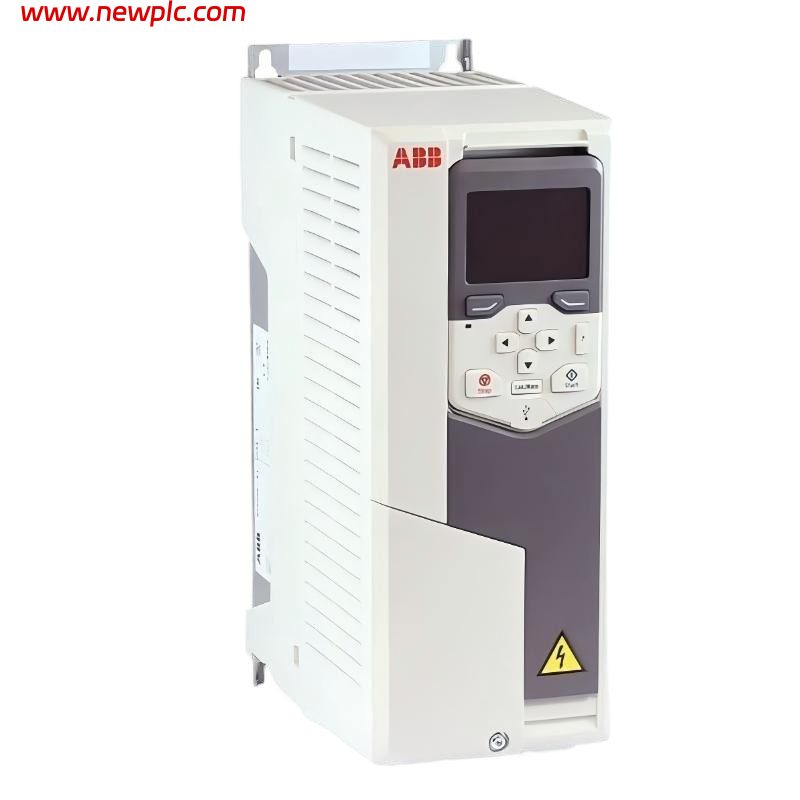

ABB ACS580-01-02A7-4 3AXD50000038937 Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS580-01-02A7-4?
A1: The ABB ACS580-01-02A7-4 is a wall-mounted general-purpose AC variable frequency drive designed for pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and many other variable- and constant-torque industrial applications. All essential functions are built in for simplified installation and operation.

Q2: What does Product ID 3AXD50000038937 represent?
A2: 3AXD50000038937 is the current ABB Product ID for the ACS580-01-02A7-4. It replaces the earlier Product ID 3ABD50000038937, while maintaining the same electrical ratings, mechanical dimensions, and core functionality.

Q3: What motor size can this drive control?
A3: The drive is rated for 0.75 kW (1 HP) motors with a normal-duty output current of 2.6 A. In heavy-duty operation, the continuous output current is 1.8 A.

Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz.

Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control, providing reliable speed regulation and efficient motor operation across a wide range of industrial applications.

Q6: What communication options are available?
A6: Standard communication includes Modbus RTU (RS-485), with optional fieldbus adapters for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.

Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-02A7-4 measures 373 × 125 × 223 mm (H × W × D).

Q8: What is the weight of the drive?
A8: The net weight of the drive is 4.6 kg. Earlier distributor listings may show 5.7 kg, but ABB’s current official product data specifies a 4.6 kg net weight.

3AXD50000038937 ABB ACS580-01-02A7-4
