Manufacturer：ABB
Product Number：ACS580-01-033A-4
Product Type：Low Voltage AC Variable Frequency Drive (VFD)
Origin：Sweden
Dimensions：490 × 203 × 229 mm
Weight：11.8 kg
Order number：3AXD50000038961
FAQ
FAQ

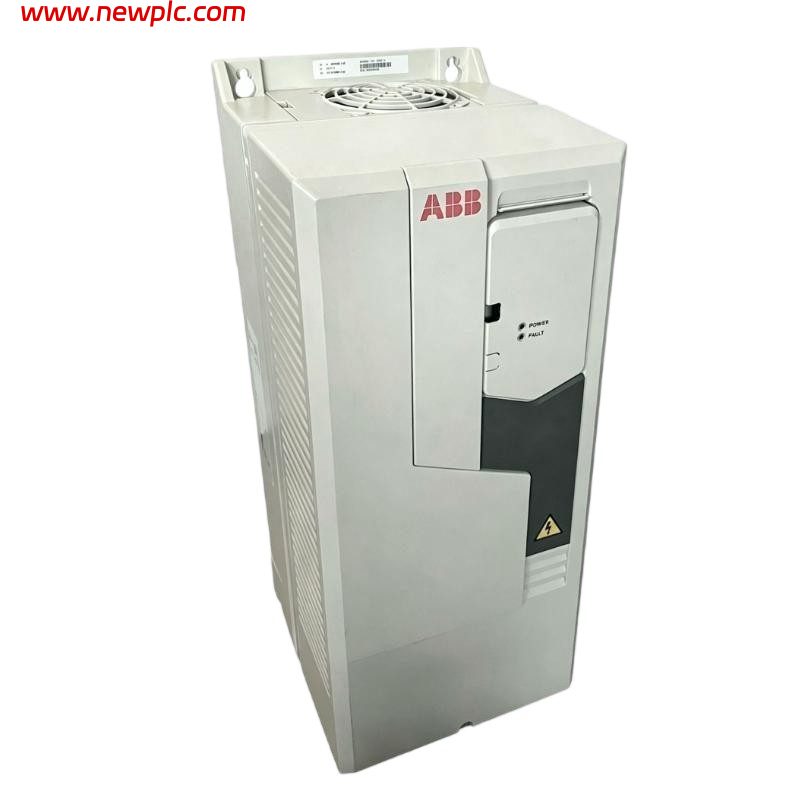

Q1: What is the ABB ACS580-01-033A-4?
A1: The ABB ACS580-01-033A-4 is a wall-mounted low-voltage AC variable frequency drive designed for pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and other variable- and constant-torque industrial applications. It includes built-in features that simplify installation and commissioning.
Q2: What does Product ID 3AXD50000038961 represent?
A2: 3AXD50000038961 is the current ABB Product ID for the ACS580-01-033A-4. It supersedes the earlier Product ID 3ABD50000038961 while maintaining the same electrical specifications and functionality.
Q3: What motor size can this drive control?
A3: The drive is rated for 15 kW (20 HP) motors with a normal-duty output current of 32 A. For heavy-duty applications, the continuous output current is 24.6 A.
Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz.
Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control, providing precise speed regulation for both variable- and constant-torque applications.
Q6: What communication options are available?
A6: The drive features built-in Modbus RTU (RS-485) communication and supports optional fieldbus adapters for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.
Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-033A-4 measures 490 × 203 × 229 mm (H × W × D) and uses the R3 frame size.
Q8: What is the weight of the drive?
A8: The net weight of the ACS580-01-033A-4 is 11.8 kg.
