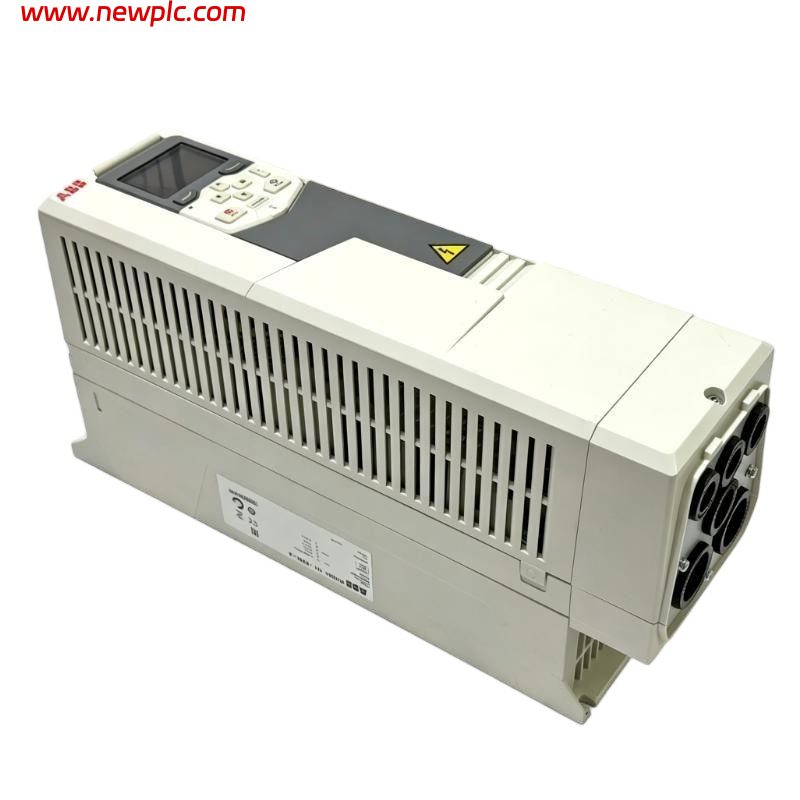

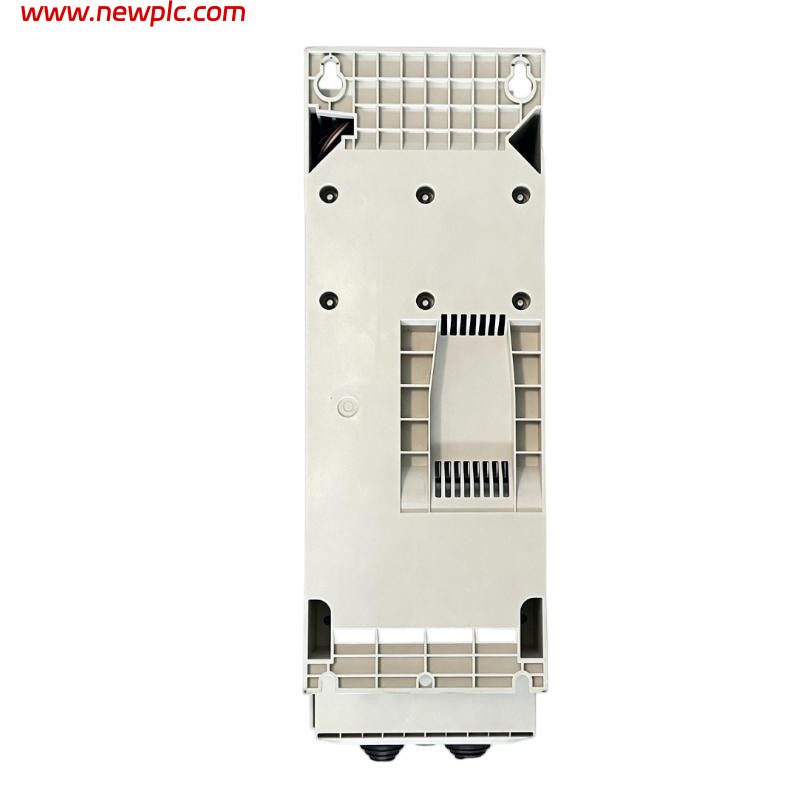

ABB ACS580-01-039A-4 3ABD50000038962 Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS580-01-039A-4?
A1: The ABB ACS580-01-039A-4 is a wall-mounted low-voltage AC variable frequency drive designed for pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and other industrial motor control applications. It includes all essential functions as standard for fast commissioning.

Q2: What does Product ID 3ABD50000038962 represent?
A2: 3ABD50000038962 is the earlier ABB Product ID for the ACS580-01-039A-4. The current equivalent Product ID is 3AXD50000038962, with identical electrical ratings and functionality.

Q3: What motor size can this drive control?
A3: The drive is rated for 18.5 kW (25 HP) motors and provides a continuous output current of 38 A in normal-duty applications. For heavy-duty operation, the continuous output current is 31 A.

Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz.

Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control, providing accurate speed regulation and reliable performance for both variable- and constant-torque applications.

Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional communication adapters for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.

Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-039A-4 measures 490 × 203 × 229 mm (H × W × D) and uses the R3 frame size.

Q8: What is the weight of the drive?
A8: The net weight of the ACS580-01-039A-4 is 13.8 kg. Earlier references may list slightly different values due to packaging or older revisions, but ABB’s current product data and authorized distributors specify 13.8 kg.

3ABD50000038962 ABB ACS580-01-039A-4

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
