Technical Specifications
| Parameter | Description |
|---|---|

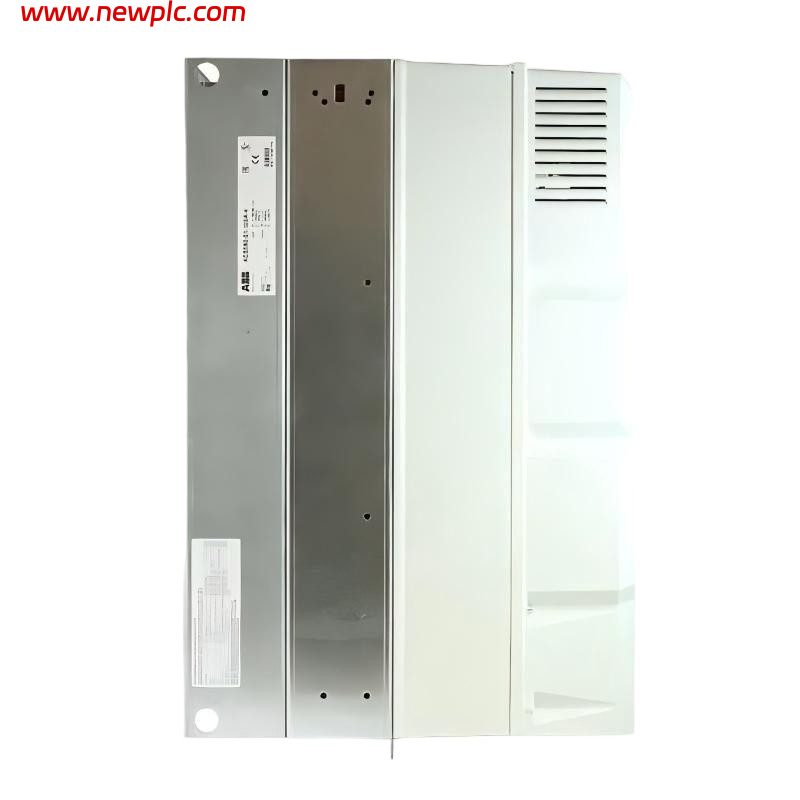

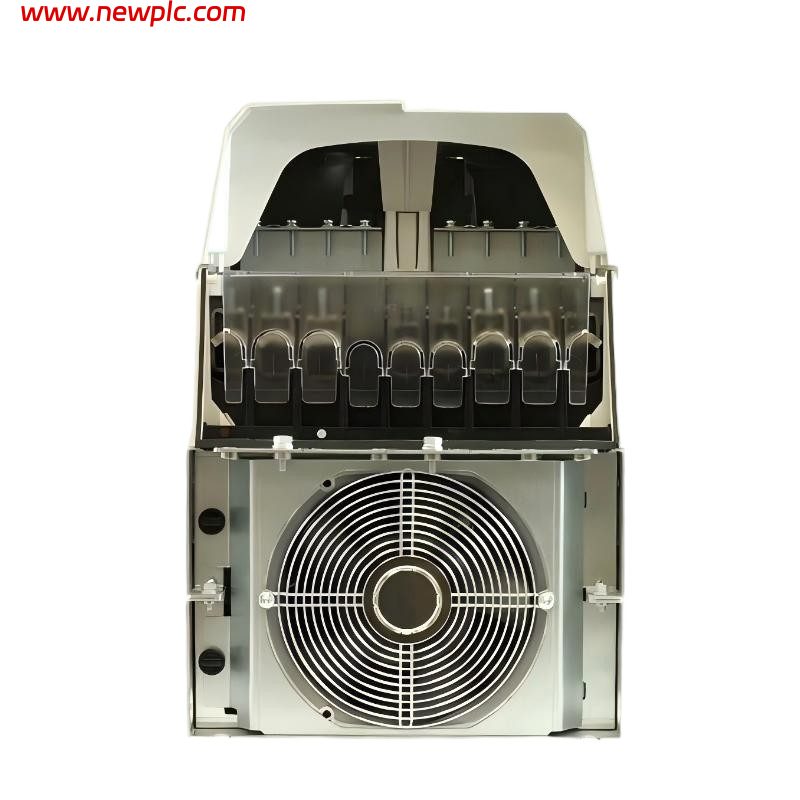

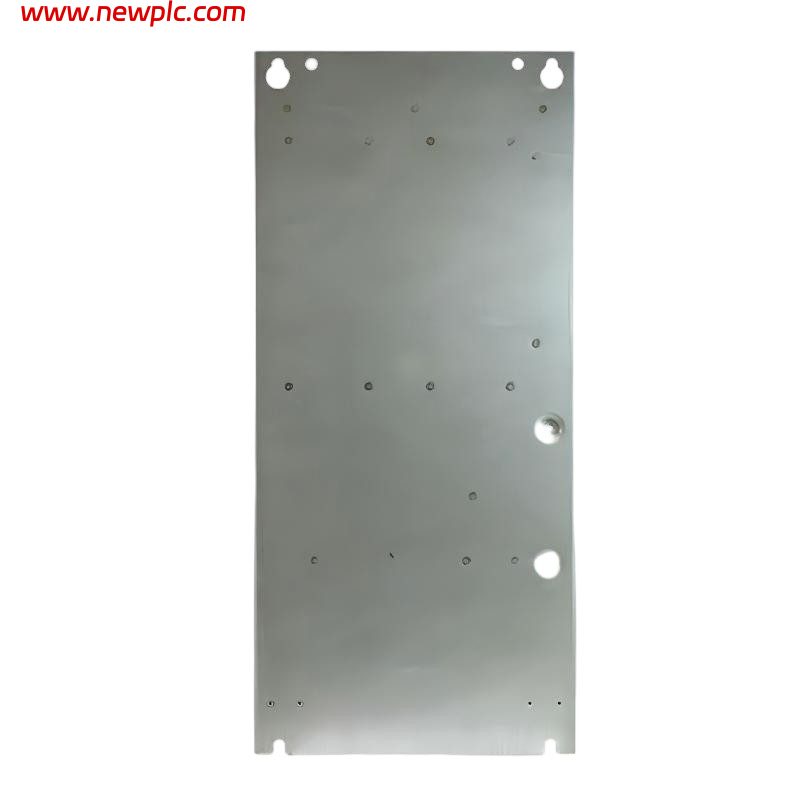

| Product Name | ABB ACS580 General Purpose Drive |
| Part Number | ACS580-01-039A-4 |
| Product ID | 3AXD50000038962 |
| Equivalent Product ID | 3ABD50000038962 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | General-purpose AC drive for variable and constant torque applications |
| Application | Pumps, Fans, Compressors, Conveyors, Mixers, Extruders, Centrifuges, Material Handling, HVAC, Food & Beverage, Textile, and General Industrial Automation |
| Rated Motor Power | 18.5 kW (25 HP) |
| Rated Output Current | 38 A |
| Heavy-Duty Output Current | 31 A |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Built-in Communication | Modbus RTU (RS-485) |
| Optional Communication | PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen |
| Built-in Features | Safe Torque Off (STO), PID Controller, EMC Filter, DC Choke, Energy Optimizer, Adaptive Programming, Assistant Control Panel |
| Protection Rating | IP21 (NEMA Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R3 |
| Operating Temperature | -15°C to +50°C (derating may apply above +40°C) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 490 × 203 × 229 mm (H × W × D) |
| Weight | 13.75 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-01-039A-4?
A1: The ABB ACS580-01-039A-4 is a wall-mounted low-voltage AC variable frequency drive designed for controlling pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and other variable- and constant-torque industrial applications. All essential functions are built in to simplify installation and commissioning.
Q2: What does Product ID 3AXD50000038962 represent?
A2: 3AXD50000038962 is the current ABB Product ID for the ACS580-01-039A-4. It supersedes the earlier Product ID 3ABD50000038962, while maintaining the same electrical ratings and core functionality.
Q3: What motor size can this drive control?
A3: The drive is rated for 18.5 kW (25 HP) motors with a continuous output current of 38 A in normal-duty operation. In heavy-duty applications, the continuous output current is 31 A.
Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz.
Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control, providing precise speed regulation and efficient operation for both variable- and constant-torque applications.
Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional fieldbus adapters for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.
Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-039A-4 measures 490 × 203 × 229 mm (H × W × D) and uses the R3 frame size.
Q8: What is the weight of the drive?
A8: The net weight of the ACS580-01-039A-4 is 13.75 kg. Some distributor listings round this value to 13.8 kg, but ABB’s official product data specifies 13.75 kg.
