ABB ACS580-01-03A4-4 3ABD50000038938 Low Voltage AC Variable Frequency Drive (VFD)

FAQ

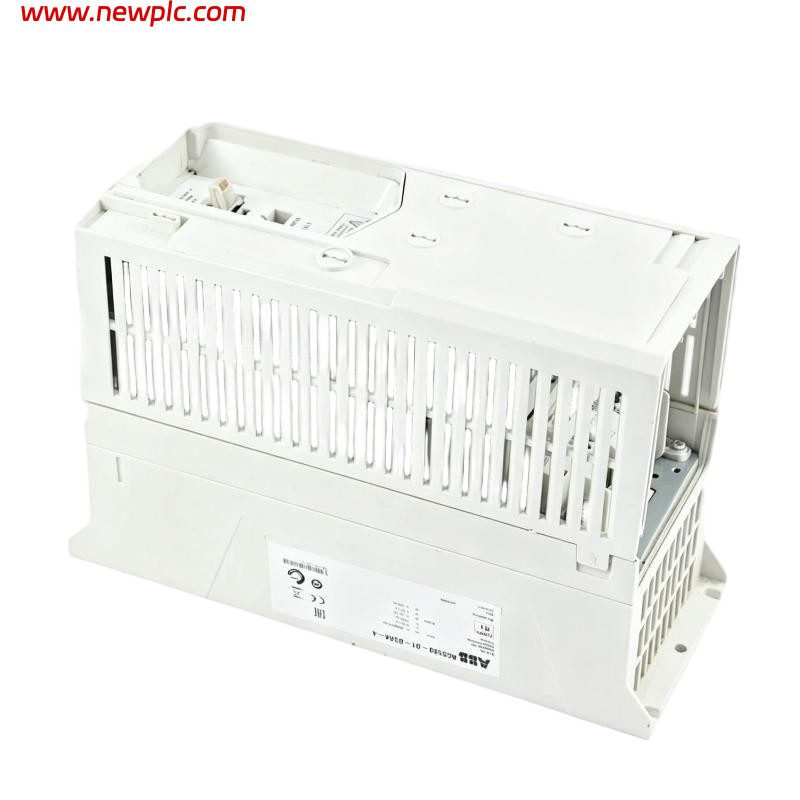

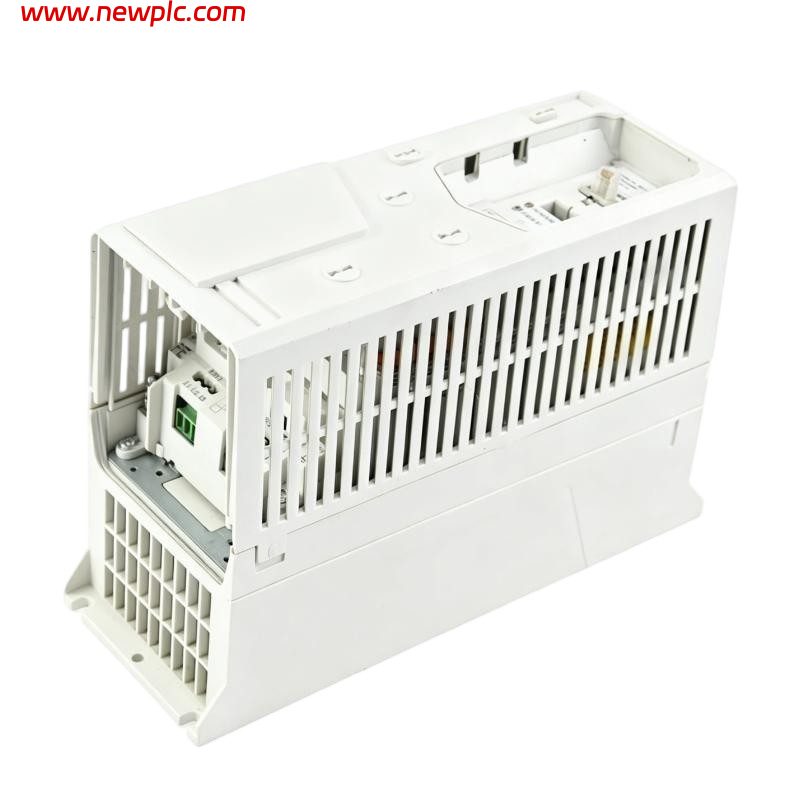

Q1: What is the ABB ACS580-01-03A4-4?
A1: The ABB ACS580-01-03A4-4 is a wall-mounted low-voltage AC variable frequency drive designed for pumps, fans, compressors, conveyors, mixers, and other industrial applications requiring variable- or constant-torque motor control.

Q2: What does Product ID 3ABD50000038938 represent?
A2: 3ABD50000038938 is the earlier ABB Product ID for the ACS580-01-03A4-4. The current equivalent Product ID is 3AXD50000038938, with identical electrical ratings and functionality.

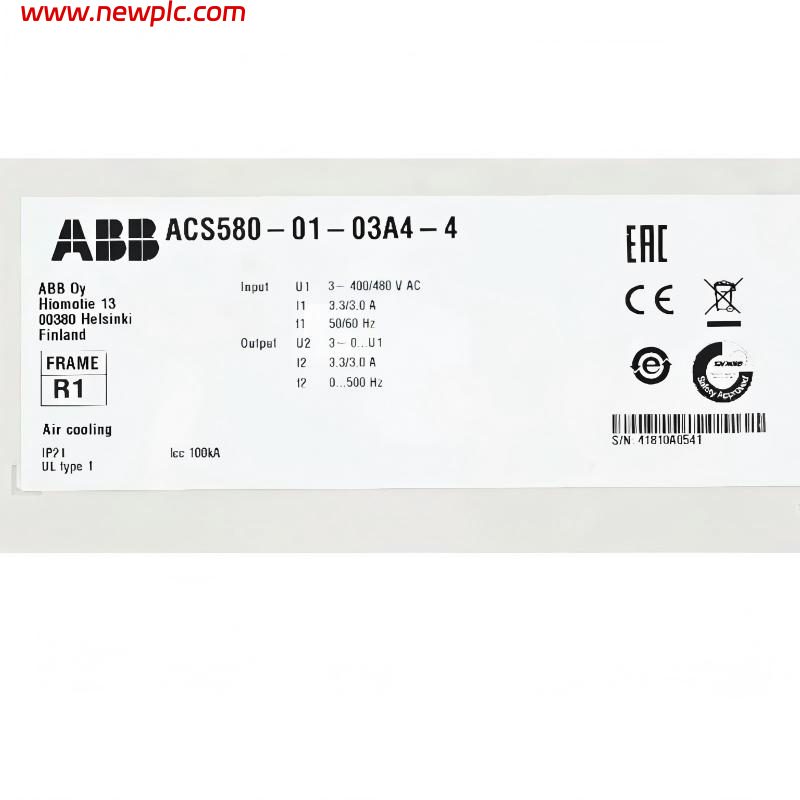

Q3: What motor size can this drive control?
A3: The drive is rated for 1.1 kW (1.5 HP) motors and provides a continuous output current of 3.3 A under normal-duty operation. The heavy-duty continuous output current is 2.6 A.

Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz.

Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control, providing accurate speed regulation and reliable performance across a wide range of industrial applications.

Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional fieldbus adapters for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.

Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-03A4-4 measures 373 × 125 × 223 mm (H × W × D) and uses the R1 frame size.

Q8: What is the weight of the drive?
A8: The net weight is 4.6 kg according to the current ABB product data. Some older distributor documents list 5.7 kg, which generally refers to earlier revisions or shipping-related values.

3ABD50000038938 ABB ACS580-01-03A4-4
