Technical Specifications
| Parameter | Description |
|---|---|

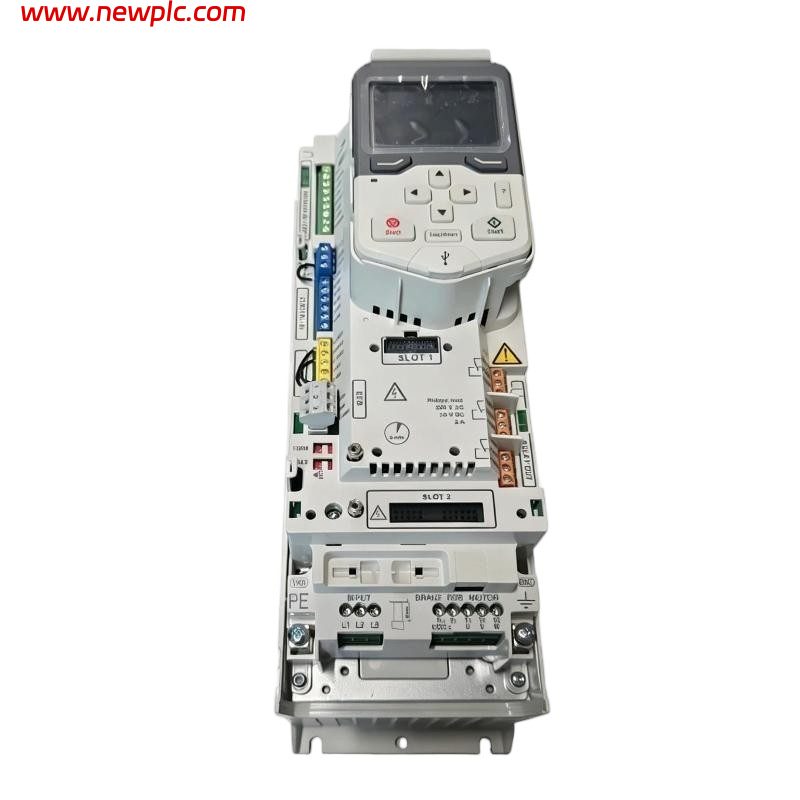

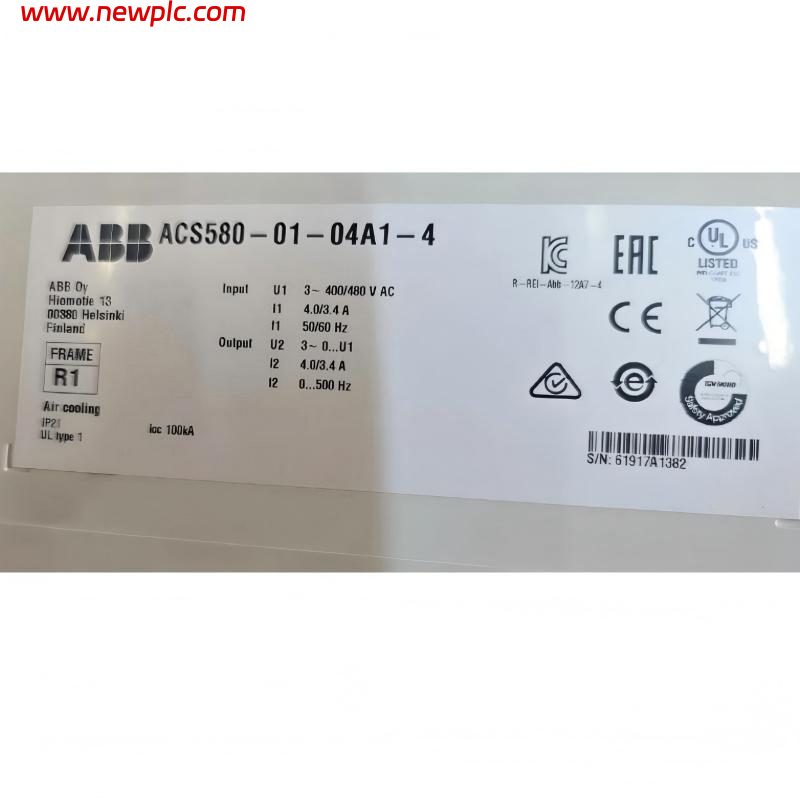

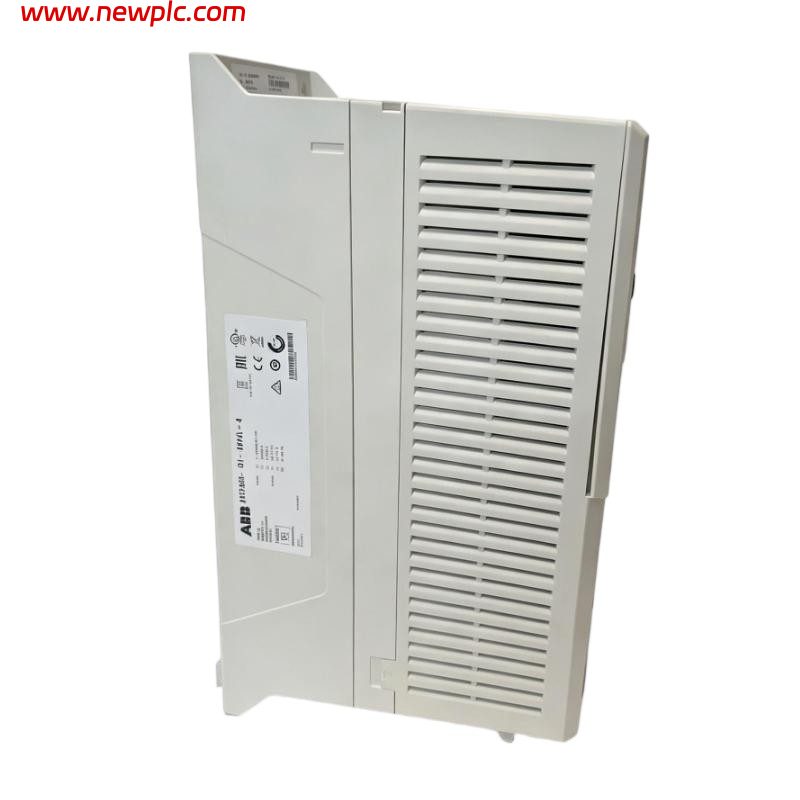

| Product Name | ABB ACS580 General Purpose Drive |
| Part Number | ACS580-01-04A1-4 |
| Product ID | 3AXD50000038939 |
| Equivalent Product ID | 3ABD50000038939 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | General-purpose AC drive for variable and constant torque applications |
| Application | Pumps, Fans, Compressors, Conveyors, Mixers, Extruders, Centrifuges, Material Handling, HVAC, Food & Beverage, Textile, and Agriculture |
| Rated Motor Power | 1.5 kW (2 HP) |
| Rated Output Current | 4.0 A |
| Heavy-Duty Output Current | 3.3 A |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Built-in Communication | Modbus RTU (RS-485) |
| Optional Communication | PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen |
| Built-in Features | Safe Torque Off (STO), PID Controller, EMC Filter, DC Choke, Energy Optimizer, Adaptive Programming, Assistant Control Panel |
| Protection Rating | IP21 (NEMA Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R1 |
| Operating Temperature | -15°C to +50°C |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 373 × 125 × 223 mm (H × W × D) |
| Weight | 4.6 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-01-04A1-4?
A1: The ABB ACS580-01-04A1-4 is a wall-mounted general-purpose AC drive designed for compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable- and constant-torque industrial applications. It includes all essential functions as standard, simplifying installation and commissioning.
Q2: What does Product ID 3AXD50000038939 represent?
A2: 3AXD50000038939 is the current ABB Product ID for the ACS580-01-04A1-4. It replaces the earlier Product ID 3ABD50000038939, while maintaining the same electrical ratings, dimensions, and functionality.
Q3: What motor size can this drive control?
A3: The drive is designed for 1.5 kW (2 HP) motors with a 4.0 A continuous output current under normal-duty conditions. For heavy-duty operation, the continuous output current is 3.3 A.
Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz and provides an adjustable output frequency from 0 to 500 Hz.
Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control, providing stable speed regulation and efficient operation for both variable- and constant-torque applications.
Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional communication adapters for PROFINET IO, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen, and other industrial fieldbus protocols.
Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-04A1-4 has net dimensions of 373 × 125 × 223 mm (H × W × D) and is housed in the compact R1 frame for wall-mounted installation.
Q8: What is the weight of the drive?
A8: The official ABB specification lists a net weight of 4.6 kg for Product ID 3AXD50000038939. Some older distributor listings may show higher values due to shipping or earlier revisions, but 4.6 kg is the current net product weight.
