Technical Specifications
| Parameter | Description |
|---|---|

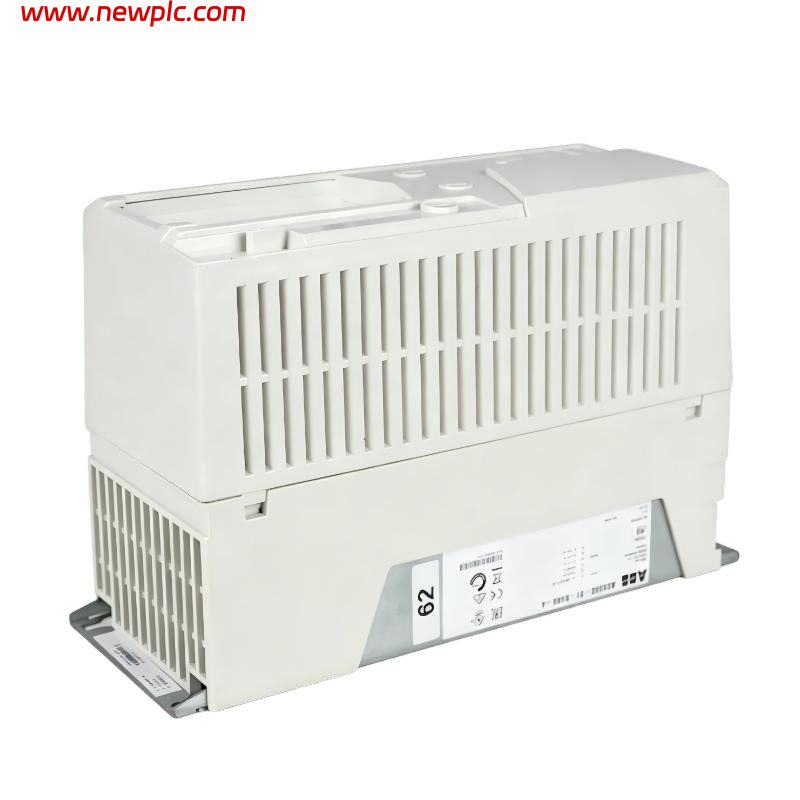

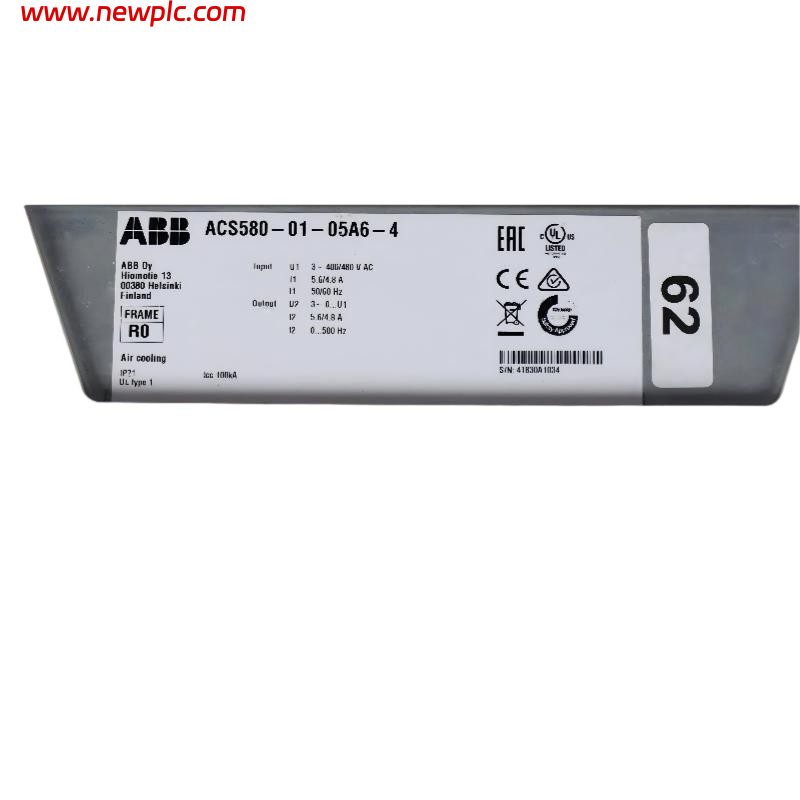

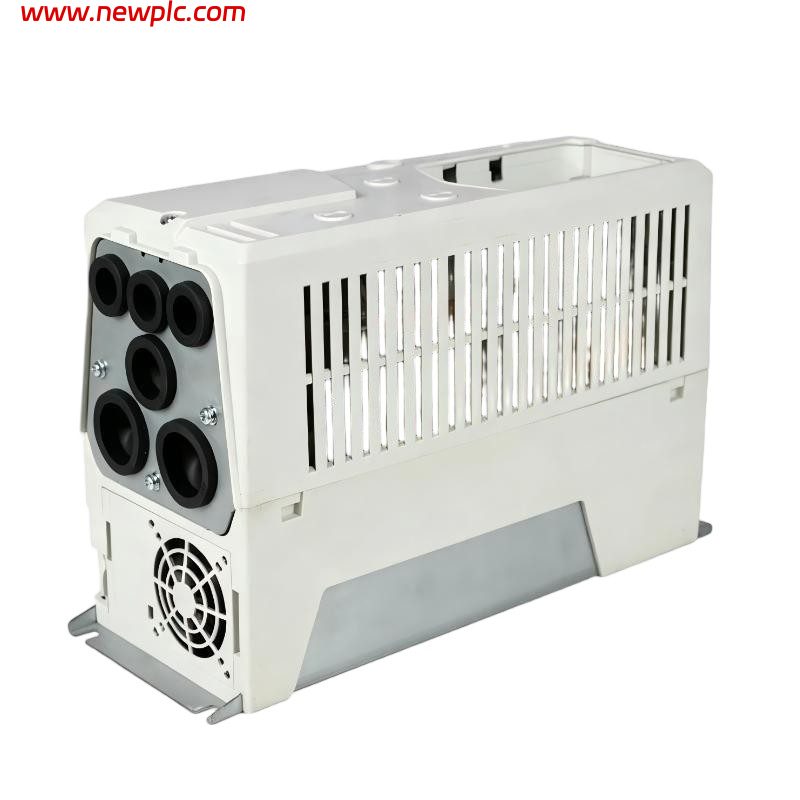

| Product Name | ABB ACS580 General Purpose Drive |
| Part Number | ACS580-01-05A6-4 |
| Product ID | 3AUA0000080489 |
| Equivalent Product ID | 3AXD50000038940 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | General-purpose AC drive for variable and constant torque applications |
| Application | Pumps, Fans, Compressors, Conveyors, Mixers, Extruders, Centrifuges, Material Handling, Food & Beverage, Textile, and Agriculture |
| Rated Motor Power | 2.2 kW (3 HP) |
| Rated Output Current | 5.6 A |
| Heavy-Duty Output Current | 4.0 A |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Built-in Communication | Modbus RTU (RS-485) |
| Optional Communication | PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen |
| Built-in Features | Safe Torque Off (STO), PID Controller, EMC Filter (Class C2), Assistant Control Panel, DC Choke, Energy Optimizer, Adaptive Programming |
| Protection Rating | IP21 (UL Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R1 |
| Operating Temperature | -15°C to +50°C (derating above +40°C) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 330 × 125 × 223 mm (H × W × D) |
| Weight | 4.8 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-01-05A6-4?
A1: The ABB ACS580-01-05A6-4 is a low-voltage, wall-mounted general-purpose AC drive designed for controlling pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and other industrial motor applications. It includes all essential features as standard for simplified installation and commissioning.
Q2: What does Product ID 3AUA0000080489 represent?
A2: 3AUA0000080489 is the original ABB Product ID for the ACS580-01-05A6-4. The current replacement Product ID is 3AXD50000038940, with equivalent specifications and functionality.
Q3: What motor size can this drive control?
A3: The drive is rated for 2.2 kW (3 HP) motors with a normal-duty output current of 5.6 A. In heavy-duty applications, it provides a continuous output current of 4.0 A.
Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz, providing an adjustable output frequency from 0 to 500 Hz.
Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control, delivering reliable speed regulation and efficient operation for both variable- and constant-torque applications.
Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional communication adapters for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.
Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-05A6-4 has net dimensions of 330 × 125 × 223 mm (H × W × D) and is housed in the compact R1 frame for wall-mounted installation.
Q8: What is the weight of the drive?
A8: The official ABB product data specifies a net weight of 4.8 kg for Product ID 3AUA0000080489.
