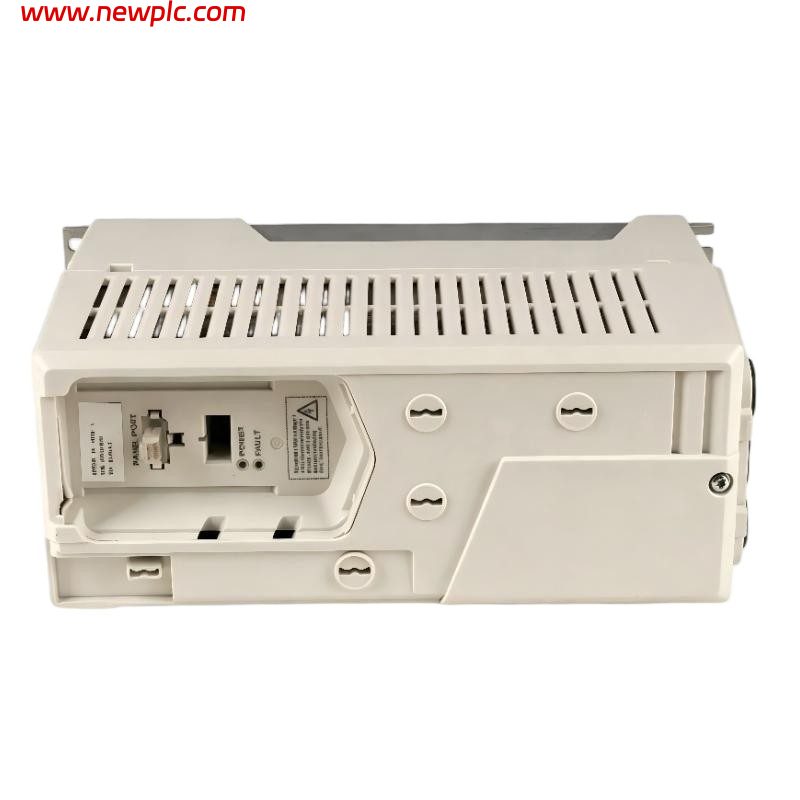

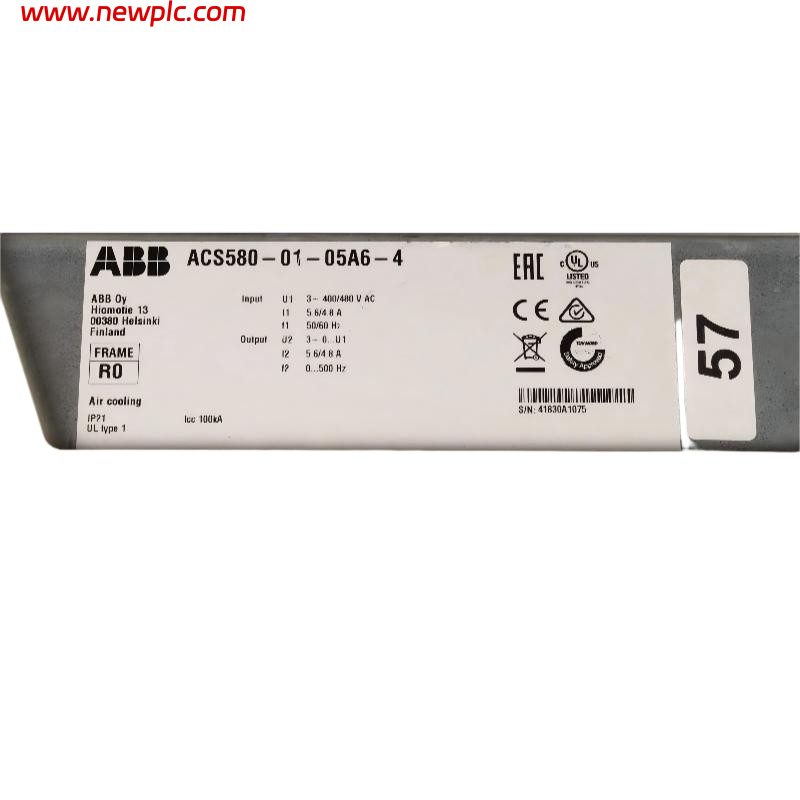

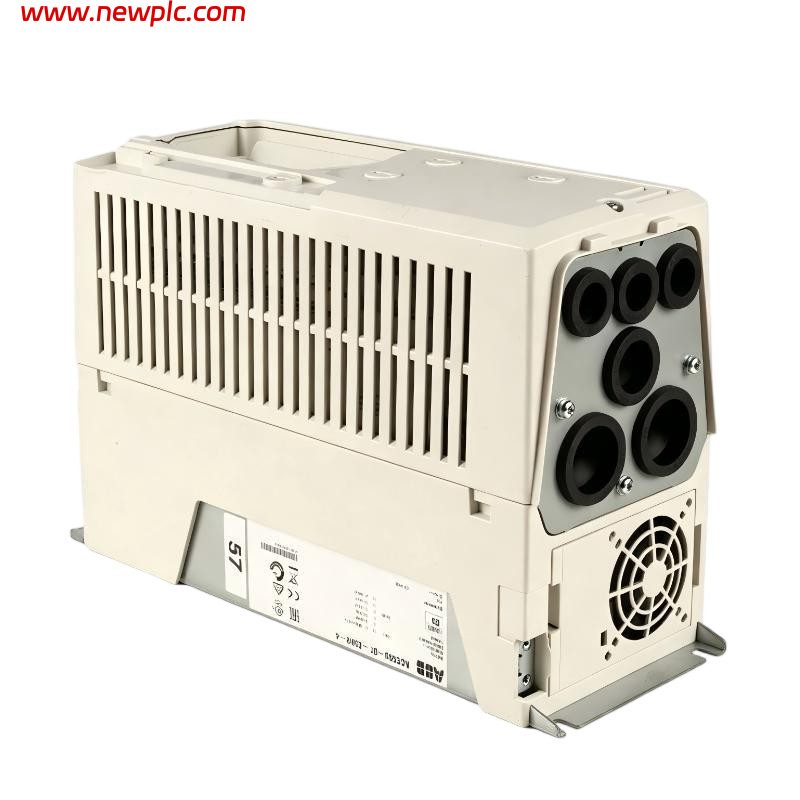

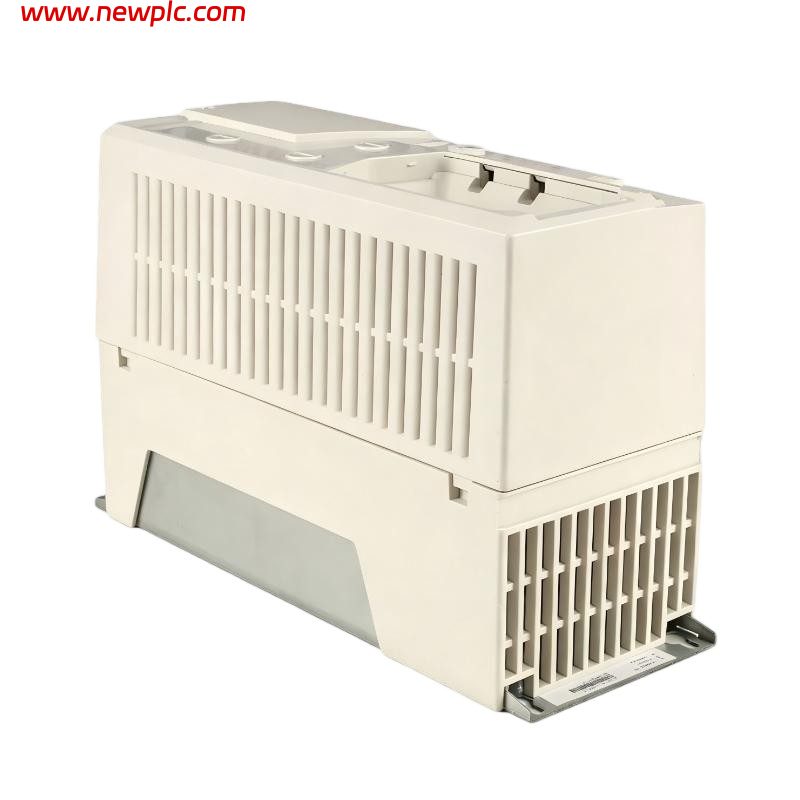

Manufacturer：ABB
Product Number：ACS580-01-05A6-4
Product Type：Low Voltage AC Variable Frequency Drive (VFD)
Origin：Sweden
Dimensions：468 × 228 × 345 mm
Weight：4.8 kg
Order number：3AUA0000190555
FAQ
FAQ
Q1: What is the ABB ACS580-01-05A6-4 (3AUA0000190555)?
A1: It is an ABB ACS580 general-purpose AC drive based on the ACS580-01-05A6-4 platform. Product ID 3AUA0000190555 identifies the +V992 variant of the standard drive.
Q2: What does the +V992 suffix mean?
A2: The +V992 suffix indicates a factory-configured product variant. The electrical ratings remain the same as the standard ACS580-01-05A6-4, while the variant includes ABB factory-specific configuration or options.
Q3: What motor size can this drive control?
A3: The drive is rated for 2.2 kW (3 HP) motors with a normal-duty output current of 5.6 A. Under heavy-duty operation, the continuous output current is 4.0 A.
Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC supply with an input frequency range of 47.5–63 Hz and an adjustable output frequency from 0 to 500 Hz.
Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control, providing stable and efficient motor control for both variable- and constant-torque applications.
Q6: What communication options are available?
A6: The drive includes Modbus RTU (RS-485) as standard and supports optional communication modules for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.
Q7: What are the physical dimensions of the drive?
A7: The drive measures 468 × 228 × 345 mm (H × W × D) and uses the R0 frame size.
Q8: What is the weight of the drive?
A8: The net weight is 4.8 kg, while the gross shipping weight is approximately 5.39 kg.
