Technical Specifications
| Parameter | Description |
|---|---|

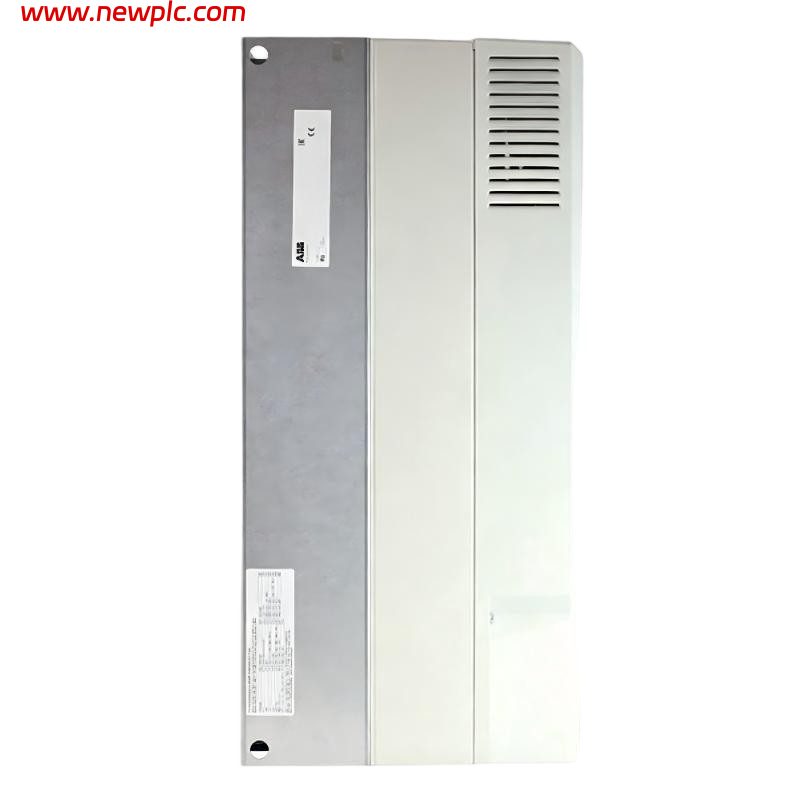

| Product Name | ABB ACS580 General Purpose Drive |
| Part Number | ACS580-01-088A-4 |
| Product ID | 3AUA0000080502 |
| Equivalent Product ID | 3ABD00045435-D |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | General-purpose AC drive for variable and constant torque applications |
| Application | Pumps, Fans, Compressors, Conveyors, Mixers, Extruders, Centrifuges, Material Handling, Food & Beverage, Textile, HVAC, and Agriculture |
| Rated Motor Power | 45 kW (60 HP) |
| Rated Output Current | 88 A |
| Light-Overload Output Current | 83 A |
| Heavy-Duty Output Current | 72 A |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Built-in Communication | Modbus RTU (RS-485) |
| Optional Communication | PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen |
| Built-in Features | Safe Torque Off (STO), EMC Filter, DC Choke, PID Controller, Energy Optimizer, Adaptive Programming, Assistant Control Panel |
| Protection Rating | IP21 (NEMA Type 1) |

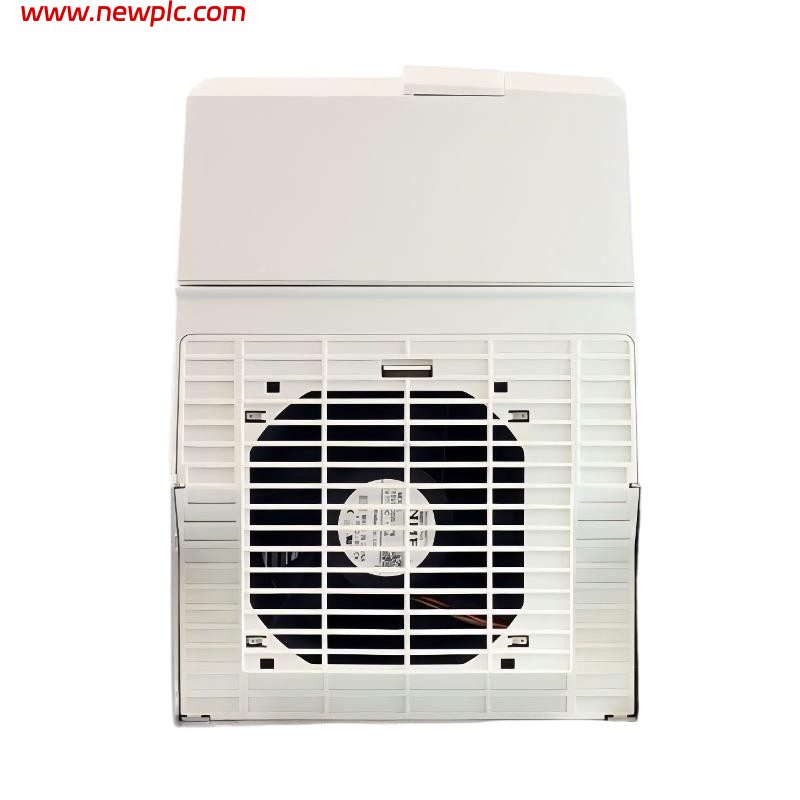

| Cooling Method | Fan-cooled |

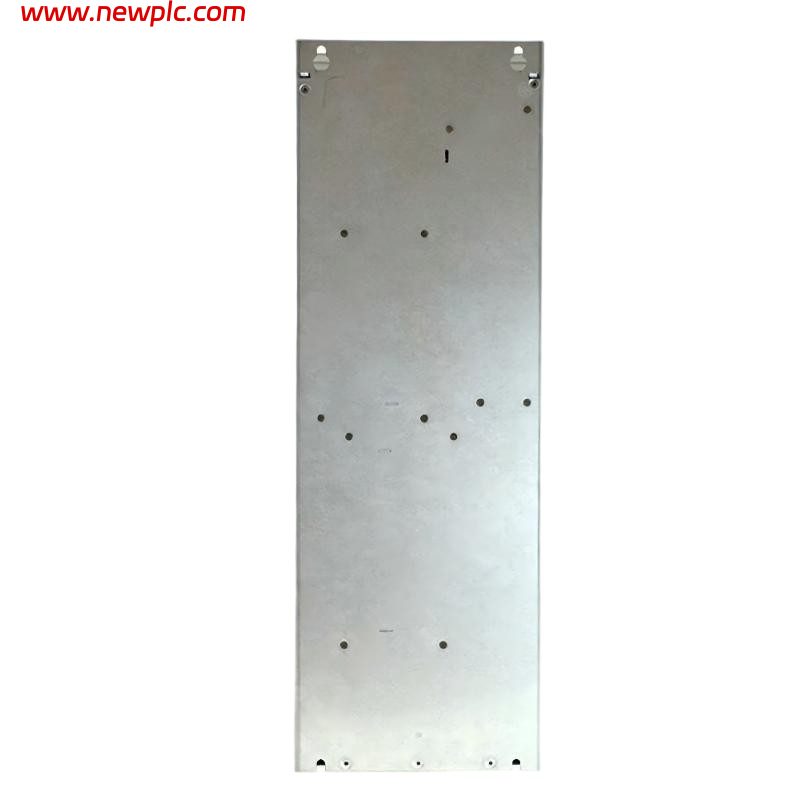

| Mounting Type | Wall-mounted |
| Frame Size | R5 |
| Operating Temperature | -15°C to +50°C |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 732 × 203 × 295 mm (H × W × D) |
| Weight | 28.3 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-01-088A-4?
A1: The ABB ACS580-01-088A-4 is a low-voltage general-purpose wall-mounted AC drive designed for controlling motors in applications such as pumps, fans, compressors, conveyors, mixers, extruders, and centrifuges.
Q2: What does Product ID 3AUA0000080502 represent?
A2: 3AUA0000080502 is the ABB Product ID for the ACS580-01-088A-4. The drive is rated at 45 kW with a rated output current of 88 A at 400 V class operation.
Q3: What motor size can this drive control?
A3: This drive is suitable for motors up to 45 kW (60 HP) under normal-duty operation, with an output current rating of 88 A. It supports 83 A for light-overload applications and 72 A for heavy-duty applications.
Q4: What input power supply is required?
A4: The ACS580-01-088A-4 requires a three-phase 380–480 VAC power supply and supports 50/60 Hz input frequency.
Q5: Which motor control methods are supported?
A5: The ACS580 series supports Sensorless Vector Control and Scalar (V/Hz) Control, providing stable motor speed and torque management for industrial applications.
Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional fieldbus modules including PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.
Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-088A-4 has dimensions of 732 × 203 × 295 mm (H × W × D) and uses the R5 frame size for wall-mounted installation.
Q8: What is the weight of the drive?
A8: The net weight of the ABB ACS580-01-088A-4 is 28.3 kg. The shipping weight will be higher due to packaging materials.
