Technical Specifications
| Parameter | Description |
|---|---|

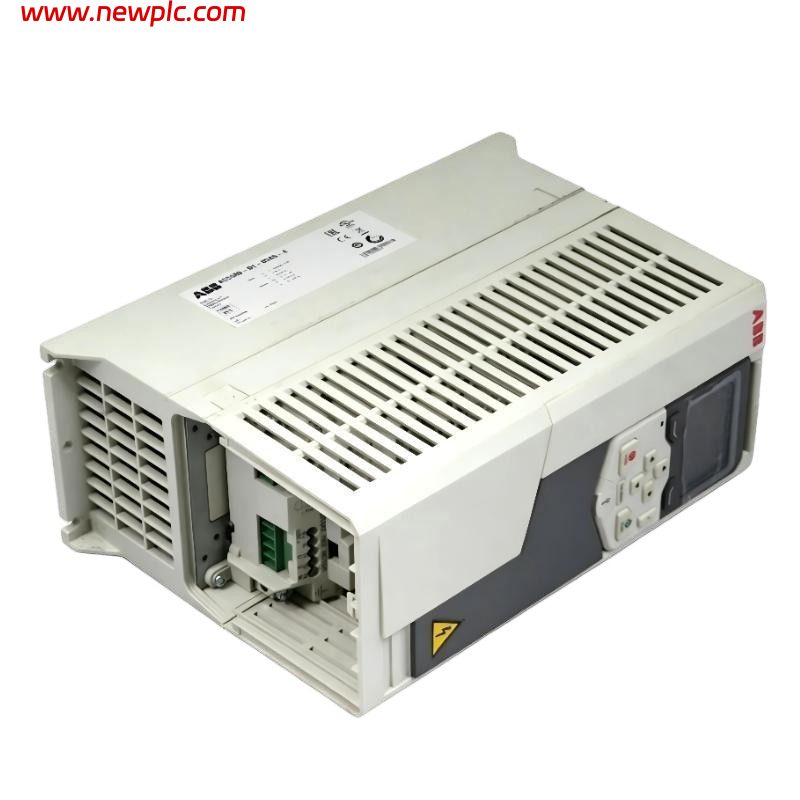

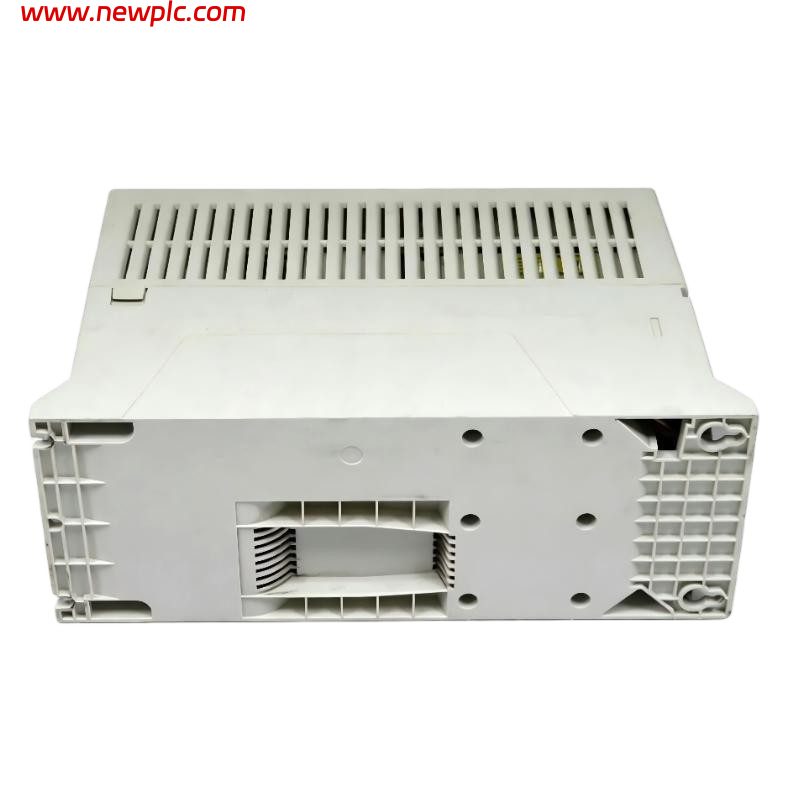

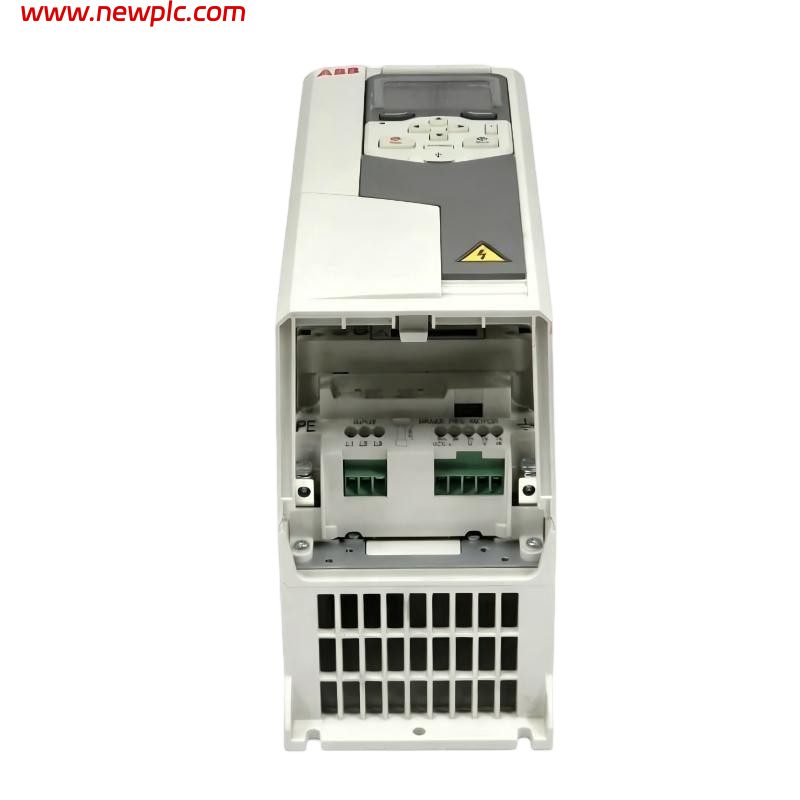

| Product Name | ABB ACS580 General Purpose Drive |
| Part Number | ACS580-01-09A5-4 |
| Product ID | 3ABD50000038952 |
| Equivalent Product ID | 3AXD50000038952 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | General-purpose AC drive for variable and constant torque applications |
| Application | Pumps, Fans, Compressors, Conveyors, Mixers, Extruders, Centrifuges, Material Handling, Food & Beverage, Textile, HVAC, and Agriculture |
| Rated Motor Power | 4 kW (5 HP) |
| Rated Output Current | 9.4 A |
| Light-Overload Output Current | 8.9 A |
| Heavy-Duty Output Current | 7.2 A |
| Heavy-Duty Motor Power | 3 kW |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Built-in Communication | Modbus RTU (RS-485) |
| Optional Communication | PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen |
| Built-in Features | Safe Torque Off (STO), EMC Filter (Class C2), DC Choke, PID Controller, Energy Optimizer, Adaptive Programming, Assistant Control Panel |
| Protection Rating | IP21 (UL Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R1 |
| Operating Temperature | -15°C to +50°C |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 373 × 125 × 223 mm (H × W × D) |
| Weight | 5.7 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-01-09A5-4?
A1: The ABB ACS580-01-09A5-4 is a low-voltage general-purpose AC drive designed for controlling motors in applications such as pumps, fans, compressors, conveyors, mixers, extruders, and centrifuges. It belongs to the ACS580 series of wall-mounted drives.
Q2: What does Product ID 3ABD50000038952 represent?
A2: 3ABD50000038952 is the ABB product identification code for the ACS580-01-09A5-4. The equivalent global Product ID is 3AXD50000038952.
Q3: What motor size can this drive control?
A3: The drive is rated for 4 kW (5 HP) motors with a normal-duty output current of 9.4 A. For heavy-duty applications, it supports 3 kW motor power with a continuous output current of 7.2 A.
Q4: What input power supply is required?
A4: The ACS580-01-09A5-4 requires a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz.
Q5: Which motor control methods are supported?
A5: The ACS580 supports both Sensorless Vector Control and Scalar (V/Hz) Control, providing accurate speed and torque control for industrial motor applications.
Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional fieldbus adapters including PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.
Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-09A5-4 has dimensions of 373 × 125 × 223 mm (H × W × D) and uses the compact R1 frame size for wall-mounted installation.
Q8: What is the weight of the drive?
A8: The net weight of the ABB ACS580-01-09A5-4 is 5.7 kg. The shipping weight may be higher depending on packaging materials.
