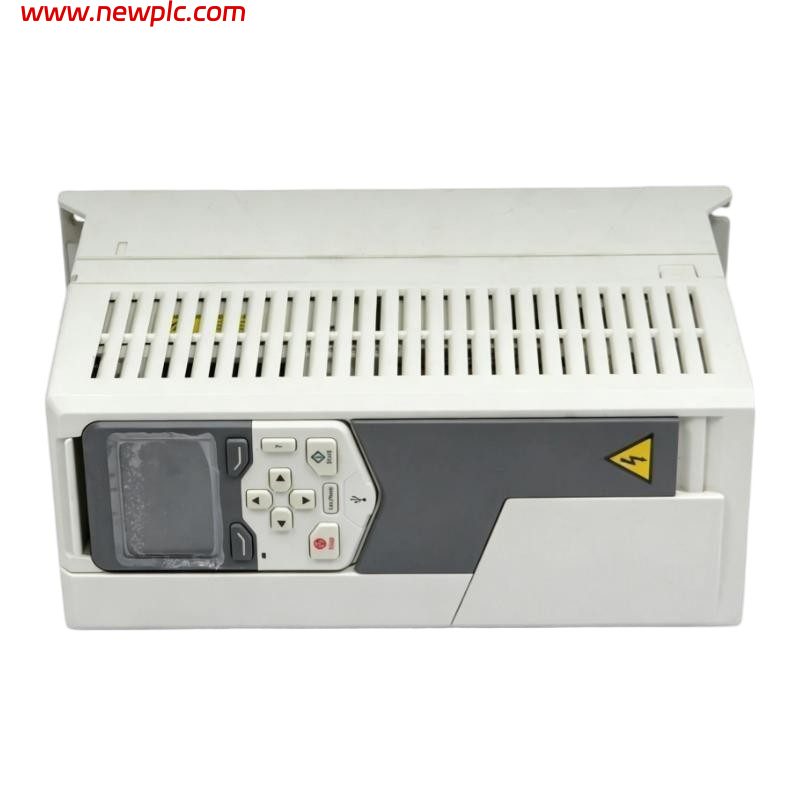

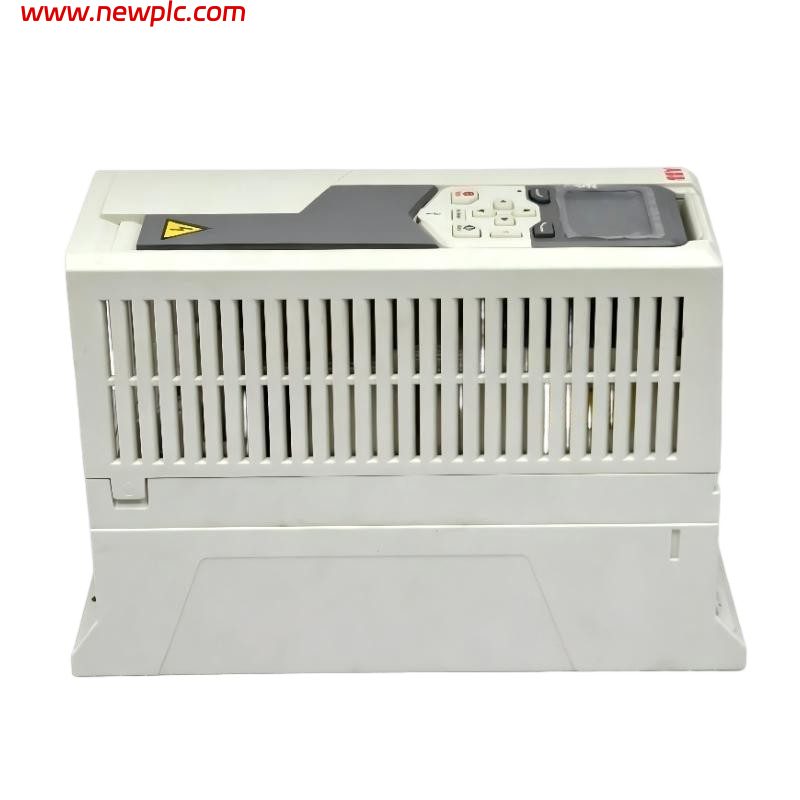

ABB ACS580-01-09A5-4 3AXD50000038952 Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS580-01-09A5-4?
A1: The ABB ACS580-01-09A5-4 is a low-voltage general-purpose AC drive designed for controlling motors in applications such as pumps, fans, compressors, conveyors, mixers, extruders, and centrifuges. It is part of the ACS580 wall-mounted drive series.

Q2: What does Product ID 3AXD50000038952 represent?
A2: 3AXD50000038952 is the ABB Product ID for the ACS580-01-09A5-4. The product is rated at 4 kW with a nominal output current of 9.4 A and uses an IP21 enclosure.

Q3: What motor size can this drive control?
A3: The drive is suitable for motors up to 4 kW (5 HP) under normal-duty operation, with a rated output current of 9.4 A. For heavy-duty applications, it supports approximately 3 kW motor power with 7.2 A output current.

Q4: What input power supply is required?
A4: The ACS580-01-09A5-4 requires a three-phase 380–480 VAC power supply with 50/60 Hz input frequency.

Q5: Which motor control methods are supported?
A5: The ACS580 series supports Sensorless Vector Control and Scalar (V/Hz) Control, providing reliable speed and torque control for industrial motor applications.

Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional fieldbus adapters such as PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.

Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-09A5-4 has dimensions of 373 × 125 × 223 mm (H × W × D) and uses the compact R1 frame size for wall-mounted installation.

Q8: What is the weight of the drive?
A8: The net weight of the ABB ACS580-01-09A5-4 is 5.7 kg. Packaging weight will be higher depending on the shipping method and packing materials.
