Technical Specifications
| Parameter | Description |
|---|---|

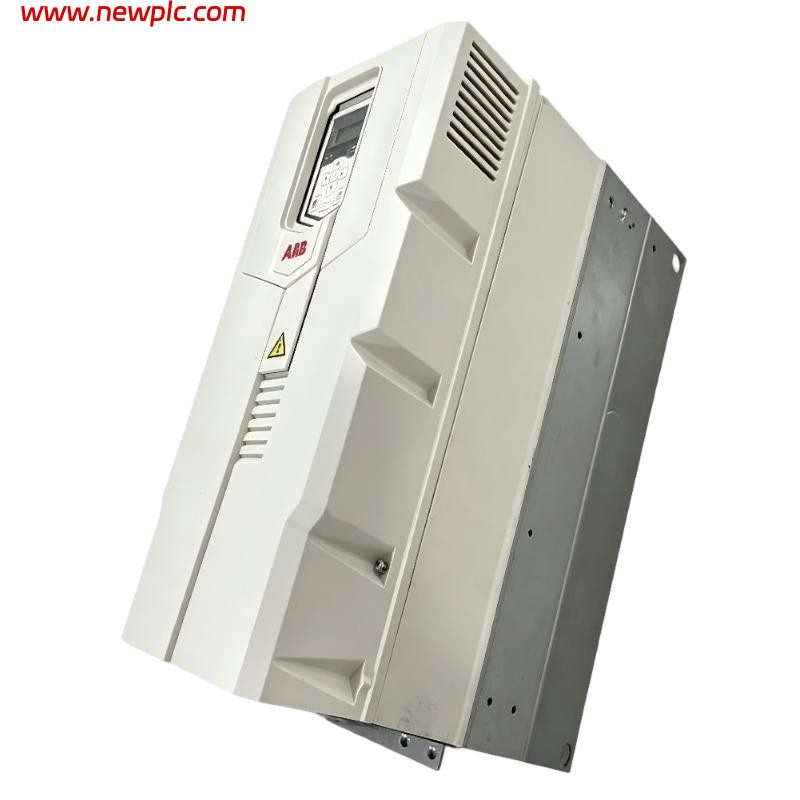

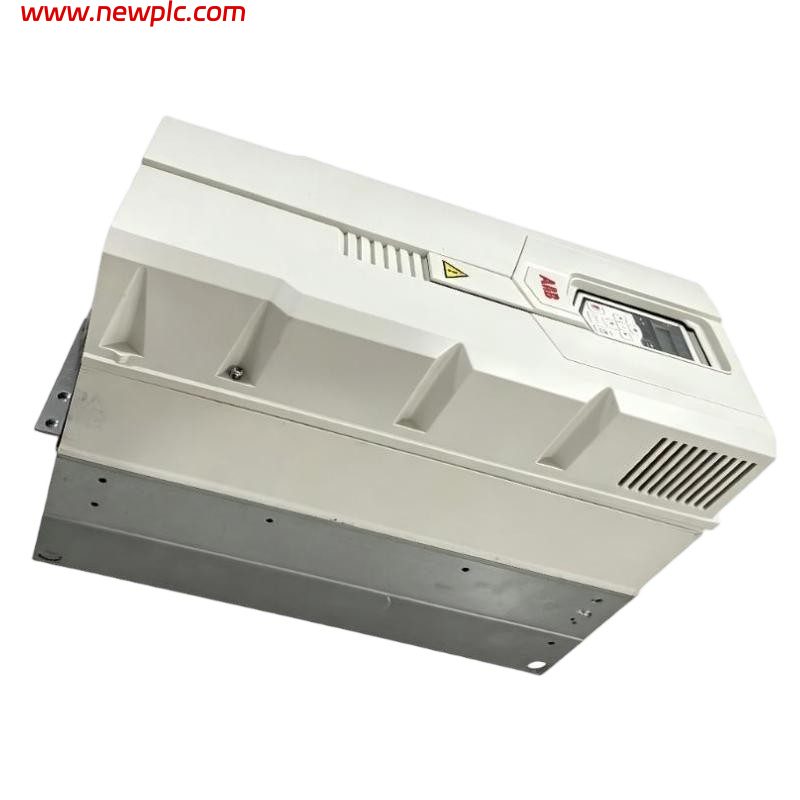

| Product Name | ABB ACS580 General Purpose Drive |
| Part Number | ACS580-01-145A-4 |
| Product ID | 3ABD00045437-D |
| Equivalent Product ID | 3AUA0000080504 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | General-purpose AC drive for variable and constant torque applications |
| Application | Pumps, Fans, Compressors, Conveyors, Mixers, Extruders, Centrifuges, Material Handling, Food & Beverage, Textile, HVAC, and Agriculture |
| Rated Motor Power | 75 kW (100 HP) |
| Rated Output Current | 145 A |
| Light-Overload Output Current | 136 A |
| Heavy-Duty Output Current | 119 A |
| Input Voltage | 3 × 380–480 VAC (±10%) |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Built-in Communication | Modbus RTU (RS-485) |
| Optional Communication | PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen |
| Built-in Features | Safe Torque Off (STO), EMC Filter (Class C2), DC Choke, PID Controller, Energy Optimizer, Adaptive Programming, Assistant Control Panel |
| Protection Rating | IP21 (UL Type 1) |
| Cooling Method | Fan-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R6 |
| Operating Temperature | -15°C to +50°C (derating above +40°C) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 727 × 252 × 369 mm (H × W × D) |
| Weight | 42.4 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-01-145A-4?
A1: The ABB ACS580-01-145A-4 is a wall-mounted, low-voltage AC variable frequency drive designed for general-purpose industrial motor control. It is suitable for pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and many other variable- and constant-torque applications.
Q2: What does Product ID 3ABD00045437-D represent?
A2: 3ABD00045437-D is the original ABB ordering code for the ACS580-01-145A-4. The equivalent current product ID is 3AUA0000080504, with identical electrical ratings and functionality.
Q3: What motor size can this drive control?
A3: The drive is rated for 75 kW (100 HP) motors with a normal-duty output current of 145 A. It also supports 136 A in light-overload operation and 119 A in heavy-duty applications.
Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz and provides an adjustable output frequency from 0 to 500 Hz.
Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control, delivering accurate speed and torque control for a wide range of industrial applications. Standard features include Safe Torque Off (STO), an EMC filter, and a DC choke.
Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional communication modules for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.
Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-145A-4 uses the R6 frame and measures 727 × 252 × 369 mm (H × W × D), making it suitable for wall-mounted industrial installations.
Q8: What is the weight of the drive?
A8: The official ABB specification lists a net weight of 42.4 kg for Product ID 3ABD00045437-D. The gross shipping weight will be higher because it includes the packaging materials.
