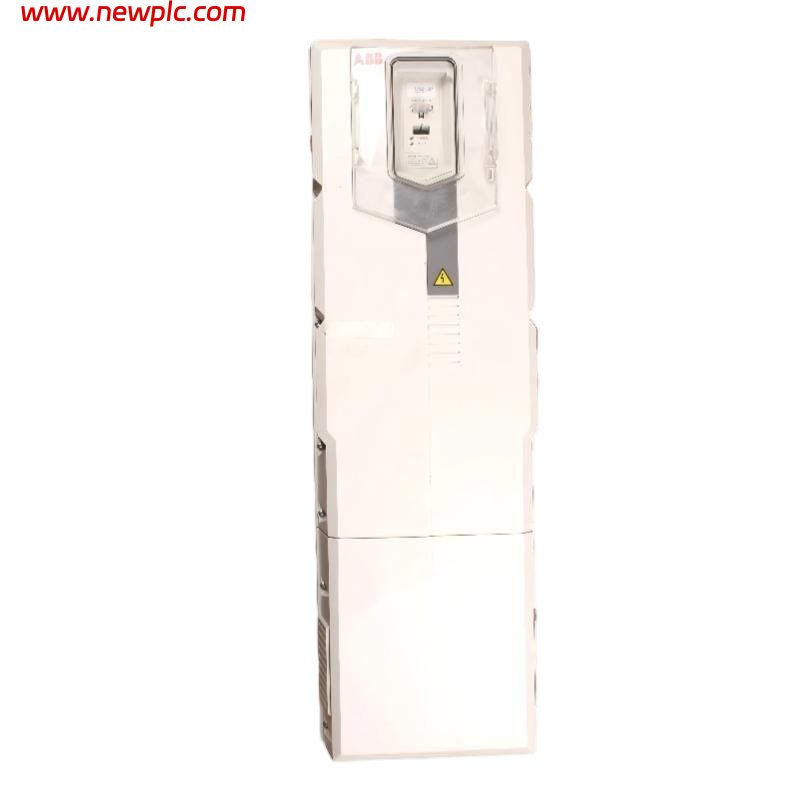

ABB ACS580-01-169A-4 3ABD00045438-D Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS580-01-169A-4?
A1: The ABB ACS580-01-169A-4 is a low-voltage, wall-mounted AC variable frequency drive designed for general-purpose industrial motor control. It is suitable for pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and other variable- and constant-torque applications.

Q2: What does Product ID 3ABD00045438-D represent?
A2: 3ABD00045438-D is the original ABB ordering code for the ACS580-01-169A-4. The current equivalent Product ID is 3AUA0000080505, with the same electrical specifications and functionality.

Q3: What motor size can this drive control?
A3: The drive is rated for 90 kW (125 HP) motors with a normal-duty output current of 169 A. It also supports 159 A in light-overload operation and 145 A in heavy-duty applications.

Q4: What input power does the drive require?
A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz and provides an adjustable output frequency from 0 to 500 Hz.

Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control. Standard features include Safe Torque Off (STO), an integrated EMC filter, a DC choke, adaptive programming, and an assistant control panel.

Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional communication modules for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.

Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-169A-4 uses the R6 frame and measures 727 × 252 × 369 mm (H × W × D), making it suitable for wall-mounted industrial installations.

Q8: What is the weight of the drive?
A8: The official ABB specification lists a net weight of 42.4 kg. The gross shipping weight will be higher because it includes the packaging materials.

3ABD00045438-D ABB ACS580-01-169A-4
