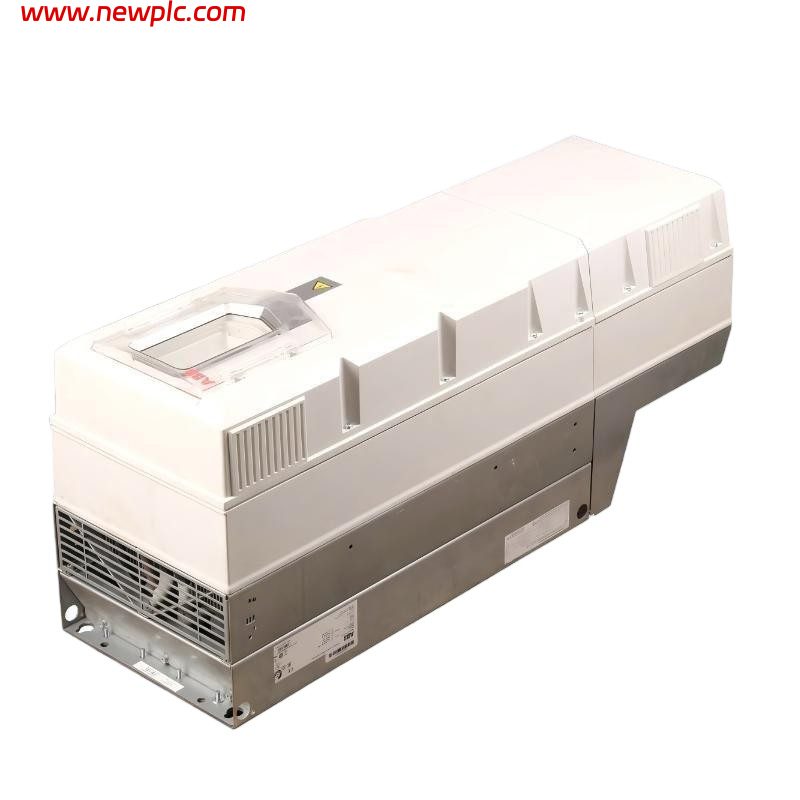

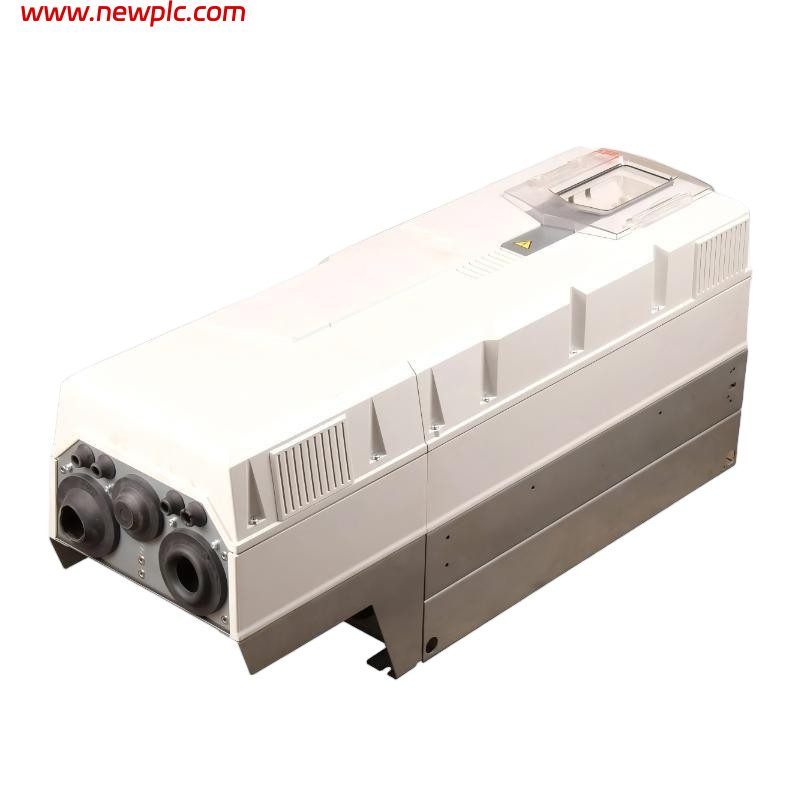

ABB ACS580-01-169A-4 3AUA0000080505 Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS580-01-169A-4?
A1: The ABB ACS580-01-169A-4 is a wall-mounted, low-voltage AC variable frequency drive designed for general-purpose industrial motor control. It is suitable for pumps, fans, compressors, conveyors, mixers, extruders, centrifuges, and many other variable- and constant-torque applications.

Q2: What does Product ID 3AUA0000080505 represent?
A2: 3AUA0000080505 is the current ABB Product ID for the ACS580-01-169A-4. It is equivalent to the earlier Product ID 3ABD00045438-D and has identical electrical specifications and functionality.

Q3: What motor size can this drive control?
A3: The drive is rated for 90 kW (125 HP) motors with a normal-duty output current of 169 A. In light-overload mode it delivers 161 A, while heavy-duty operation is rated at 145 A for 75 kW (100 HP) motors.

Q4: What input power does the drive require?

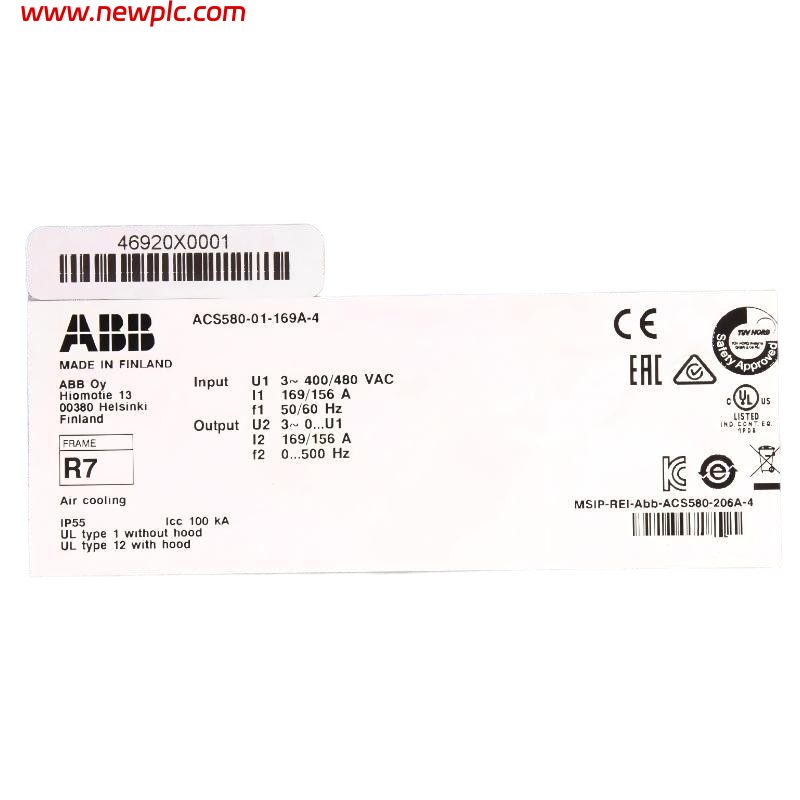

A4: It operates from a three-phase 380–480 VAC power supply with an input frequency range of 47.5–63 Hz and provides an adjustable output frequency from 0 to 500 Hz.

Q5: Which motor control methods are supported?
A5: The ACS580 supports Sensorless Vector Control and Scalar (V/Hz) Control. Standard integrated features include Safe Torque Off (STO), an EMC filter, DC choke, PID controller, energy optimizer, and adaptive programming.

Q6: What communication options are available?
A6: The drive includes built-in Modbus RTU (RS-485) communication and supports optional communication modules for PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.

Q7: What are the physical dimensions of the drive?
A7: The ACS580-01-169A-4 uses the R7 frame and measures 880 × 284 × 370 mm (H × W × D).

Q8: What is the weight of the drive?
A8: The official ABB product specification lists a net weight of 54 kg for Product ID 3AUA0000080505. Shipping weight will be higher depending on the packaging configuration.
