Technical Specifications
| Parameter | Description |
|---|---|

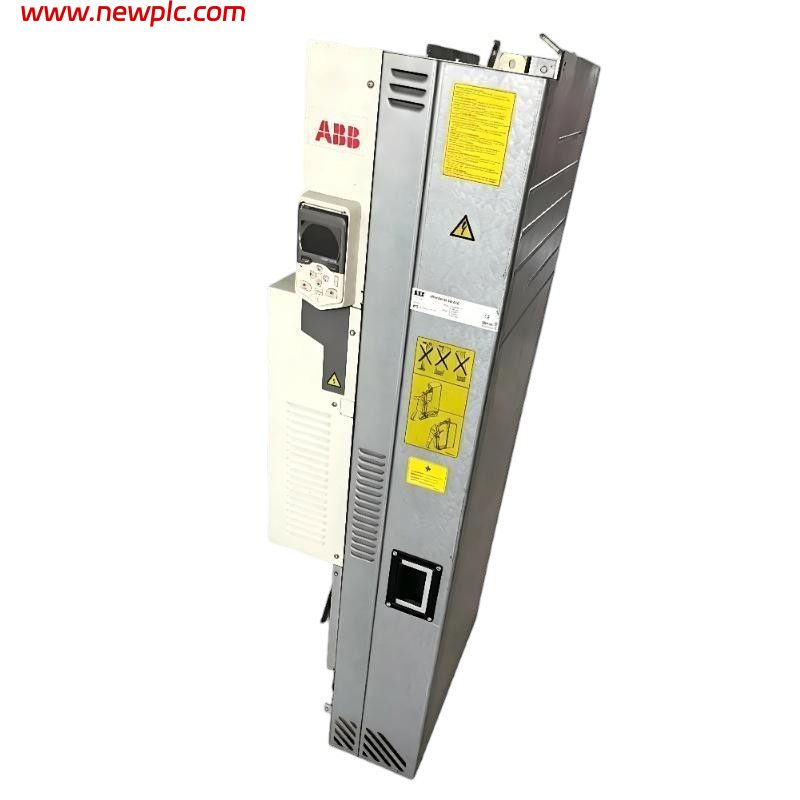

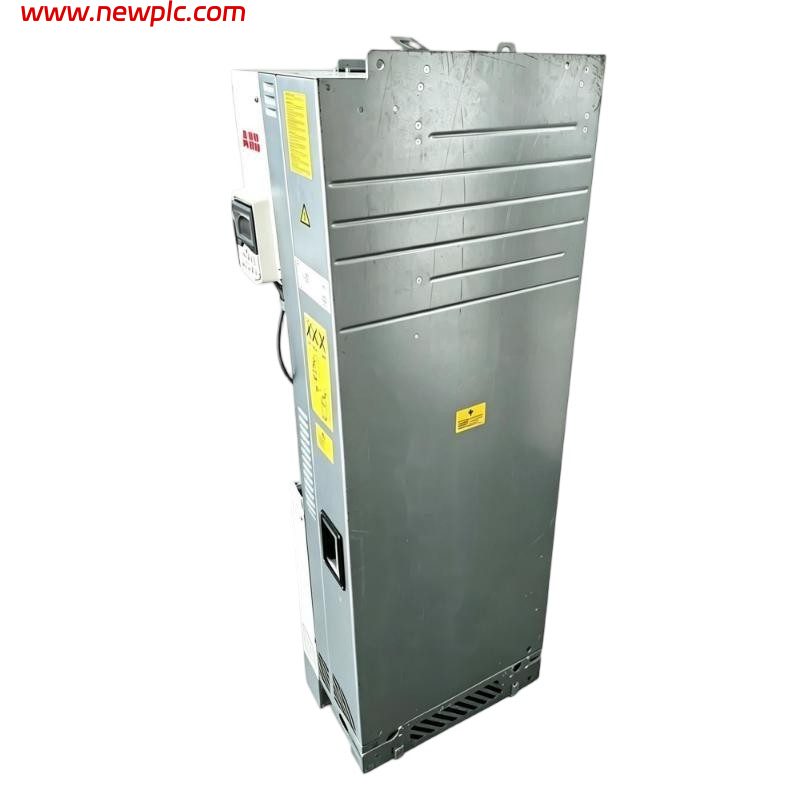

| Product Name | ABB ACS580 General Purpose Drive Module |
| Part Number | ACS580-04-505A-4 |
| Product ID | 3ABD00036867-D |
| Equivalent Product ID | 3AUA0000170509 |
| Product Type | Low Voltage AC Variable Frequency Drive Module (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | Cabinet-installed drive module for controlling AC motors in variable and constant torque applications |
| Application | Compressors, Conveyors, Pumps, Extruders, Centrifuges, Mixers, Fans, Material Handling, Food & Beverage, Plastics, Textile, and Agriculture |

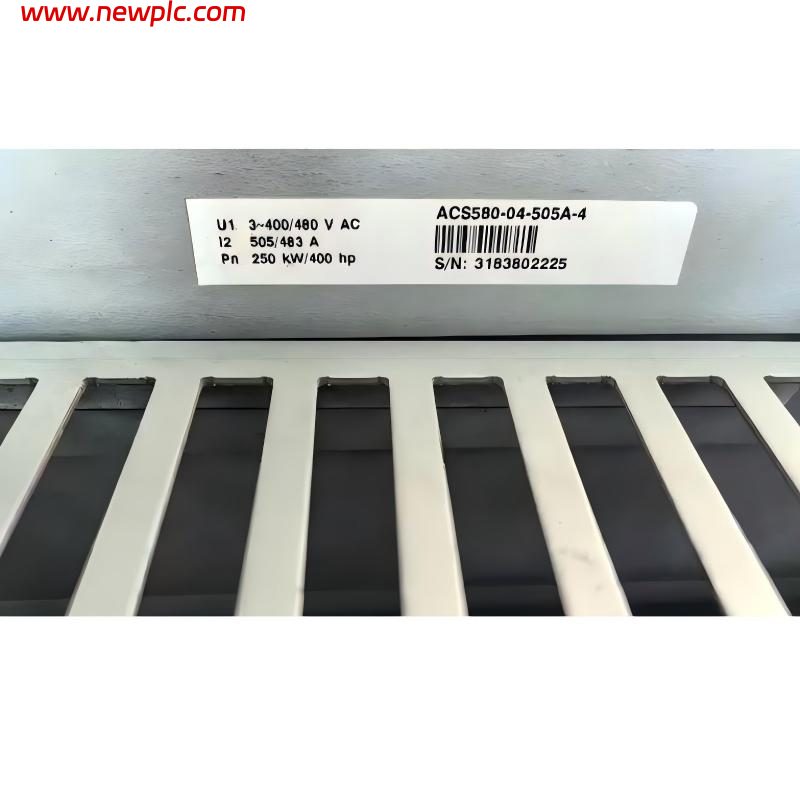

| Rated Motor Power | 250 kW |
| Rated Output Current | 505 A |
| Light-Overload Output Current | 485 A |
| Heavy-Duty Output Current | 361 A |
| Heavy-Duty Motor Power | 200 kW |
| Input Voltage | 3 × 380–480 VAC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–500 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Communication | Built-in Modbus RTU (RS-485); optional fieldbus adapters |
| Protection Rating | IP00 (UL Open Type) |
| Optional Protection Rating | IP20 with enclosure accessories |
| Cooling Method | Air-cooled |
| Mounting Type | Cabinet installation (drive module) |
| Frame Size | R10 |
| Built-in Features | Safe Torque Off (STO), EMC solutions, DC choke, PID controller, energy optimizer, adaptive programming |
| Operating Temperature | -15°C to +40°C (with derating above rated temperature) |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 1462 × 350 × 529 mm (H × W × D) |
| Weight | 161 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-04-505A-4?
A1: The ABB ACS580-04-505A-4 is a low-voltage AC general-purpose drive module designed for cabinet installation. It provides speed and torque control for industrial AC motors used in applications such as pumps, compressors, conveyors, fans, mixers, and extruders.
Q2: What does Product ID 3ABD00036867-D represent?
A2: 3ABD00036867-D is the ABB ordering code for the ACS580-04-505A-4 drive module. The equivalent newer Product ID is 3AUA0000170509.
Q3: What motor size can this drive control?
A3: The drive is rated for 250 kW motors with a nominal output current of 505 A. For heavy-duty applications, it supports approximately 200 kW motor loads with 361 A output current.
Q4: What input power supply is required?
A4: The ACS580-04-505A-4 operates from a three-phase 380–480 VAC power supply with a frequency range of 50/60 Hz.
Q5: What control methods are supported?
A5: It supports Sensorless Vector Control and Scalar (V/Hz) Control, providing accurate motor speed and torque management without requiring an encoder.
Q6: Does the drive include communication functions?
A6: Yes. The ACS580 series includes built-in Modbus RTU (RS-485) communication and supports optional fieldbus communication modules for industrial networks.
Q7: What is the protection rating of this drive module?
A7: The standard ACS580-04-505A-4 drive module has an IP00 / UL Open Type enclosure rating and is designed to be installed inside a cabinet. An IP20 enclosure option is available.
Q8: What are the dimensions and weight of the drive module?
A8: The ACS580-04-505A-4 uses the R10 frame, with dimensions of 1462 × 350 × 529 mm (H × W × D) and a weight of approximately 161 kg.
