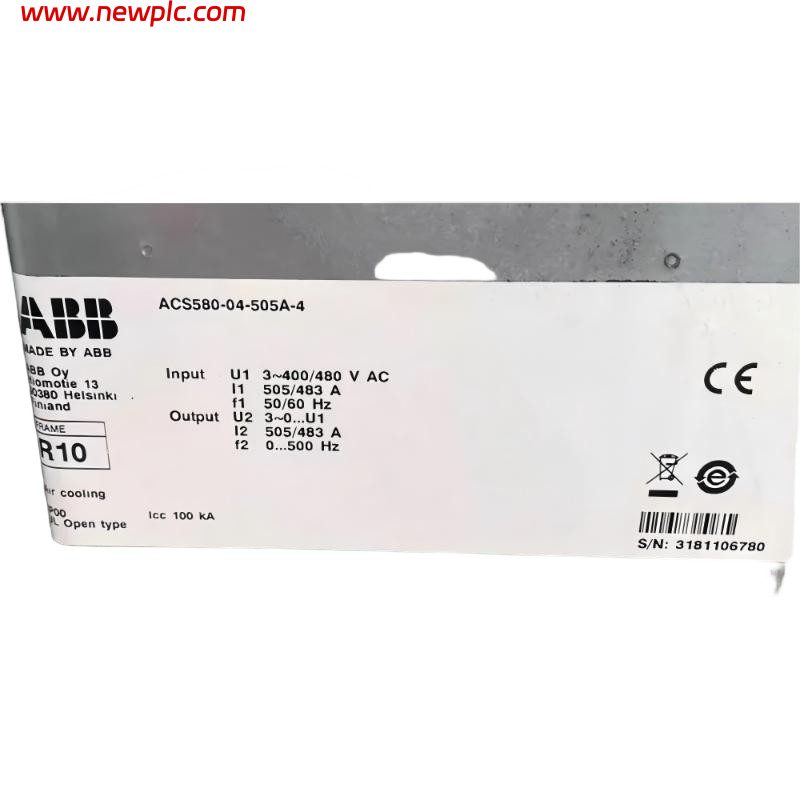

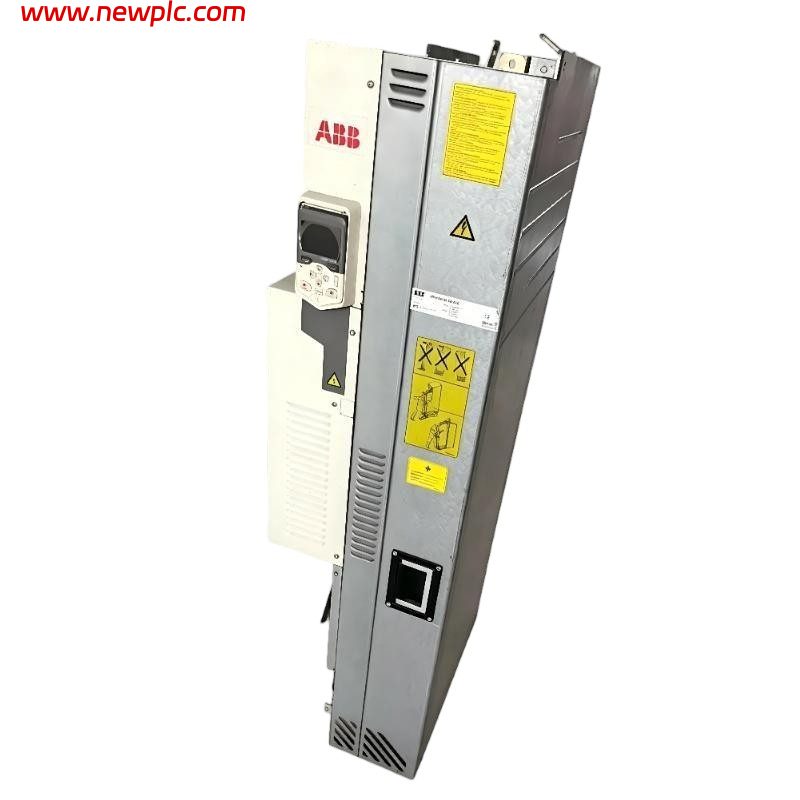

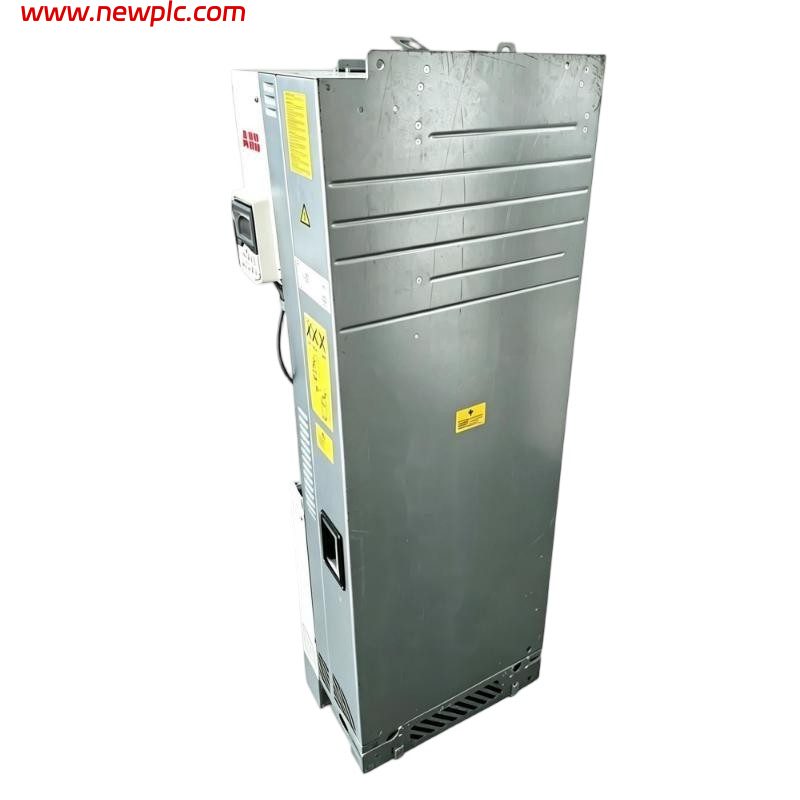

ABB ACS580-04-505A-4 3AUA0000170509 Low Voltage AC Variable Frequency Drive Module (VFD)

FAQ

Q1: What is the ABB ACS580-04-505A-4?
A1: The ABB ACS580-04-505A-4 is a low-voltage AC general-purpose drive module designed for cabinet installation. It provides reliable motor speed and torque control for industrial applications such as pumps, compressors, conveyors, mixers, extruders, fans, and material handling systems.

Q2: What does Product ID 3AUA0000170509 represent?
A2: 3AUA0000170509 is the ABB Product ID for the ACS580-04-505A-4 drive module. The previous ordering code 3ABD00036867-D refers to the same drive model.

Q3: What motor size can this drive control?
A3: The drive is rated for 250 kW motors with a normal-duty output current of 505 A. It supports 485 A for light-overload operation and 361 A for heavy-duty applications with approximately 200 kW motor power.

Q4: What input power supply is required?
A4: The ACS580-04-505A-4 operates with a three-phase 380–480 VAC input supply and supports an input frequency range of 47.5–63 Hz.

Q5: Which motor control methods are supported?
A5: The drive supports Sensorless Vector Control and Scalar (V/Hz) Control, allowing accurate motor speed and torque regulation without requiring an encoder.

Q6: Does the drive support industrial communication?
A6: Yes. It includes built-in Modbus RTU (RS-485) communication and supports optional fieldbus modules including PROFINET IO, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.

Q7: What is the protection rating of this drive module?
A7: The standard ACS580-04-505A-4 module has an IP00 / UL Open Type enclosure rating and is designed for installation inside a control cabinet. An IP20 enclosure option is available.

Q8: What are the dimensions and weight of the drive module?
A8: The ACS580-04-505A-4 uses the R10 frame size, with dimensions of 1462 × 350 × 529 mm (H × W × D) and a net weight of approximately 161 kg.

3AUA0000170509 ABB ACS580-04-505A-4
