Technical Specifications
| Parameter | Description |
|---|---|

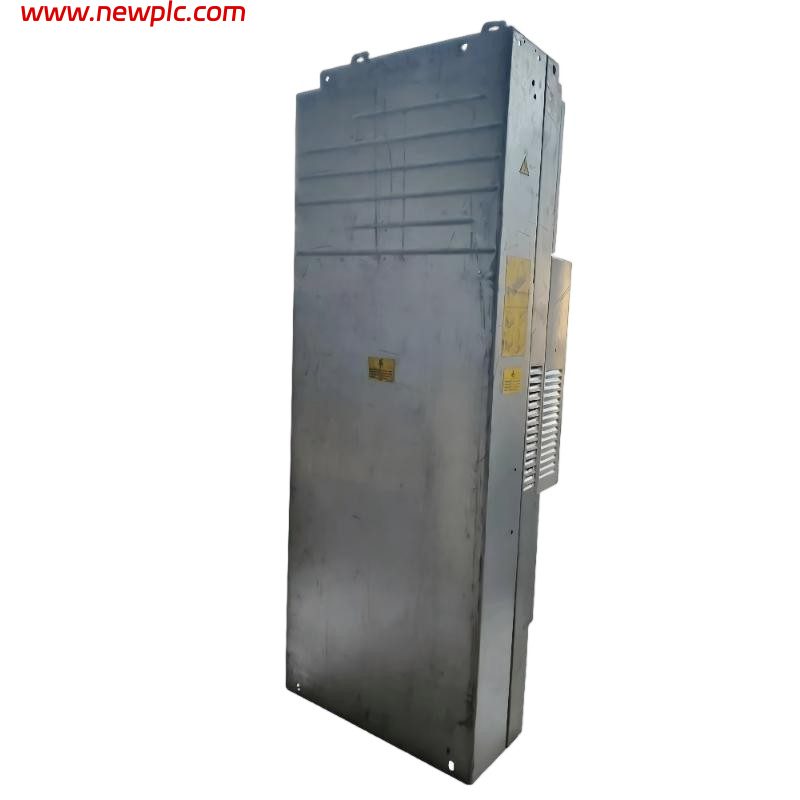

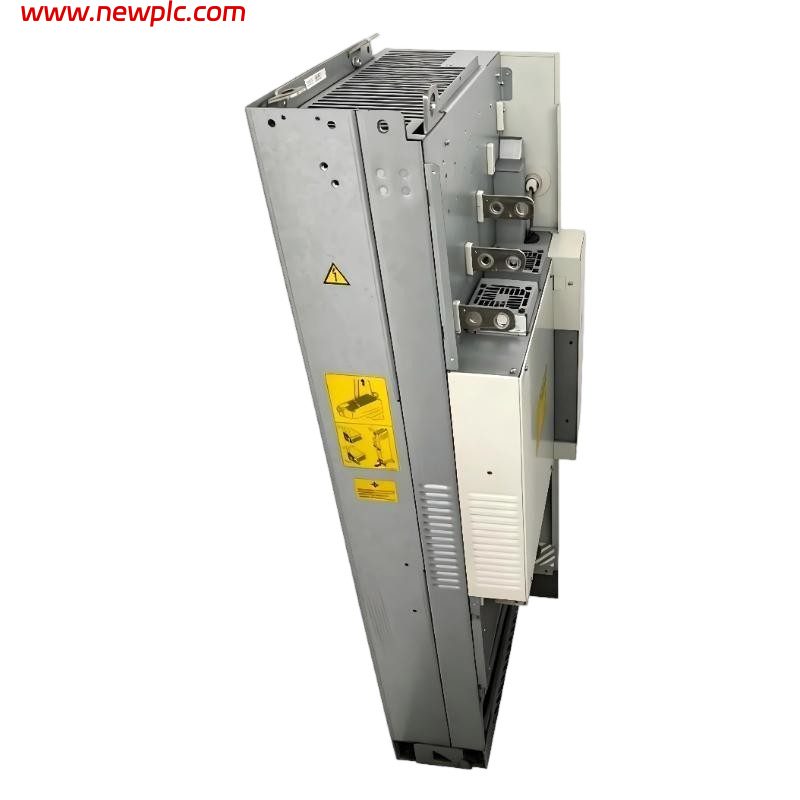

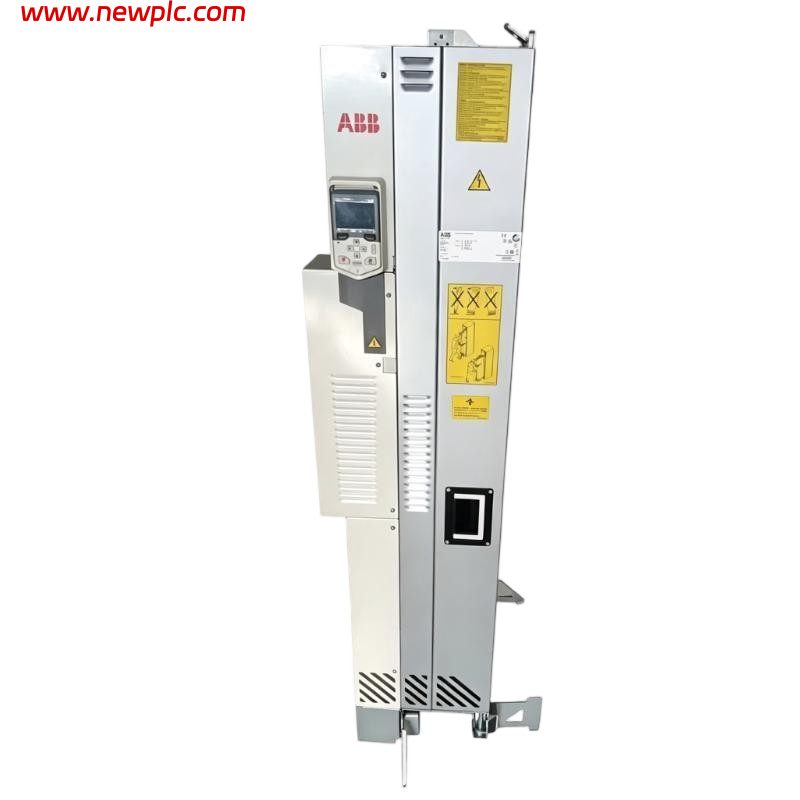

| Product Name | ABB ACS580 General Purpose Drive Module |
| Part Number | ACS580-04-585A-4 |
| Product ID | 3AUA0000170521 |
| Equivalent Product ID | 3ABD00036862-D |
| Product Type | Low Voltage AC Variable Frequency Drive Module (VFD) |
| Manufacturer | ABB |
| Series | ACS580 |
| Function | Cabinet-installed AC drive module for precise speed and torque control of industrial AC motors |
| Application | Compressors, Conveyors, Pumps, Extruders, Centrifuges, Mixers, Fans, Material Handling, Food & Beverage, Plastics, Textile, and Agriculture |
| Rated Motor Power | 315 kW (450 HP) |
| Rated Output Current | 585 A |
| Light-Overload Output Current | 575 A |
| Heavy-Duty Output Current | 429 A |
| Heavy-Duty Motor Power | 250 kW |
| Input Voltage | 3 × 380–480 VAC |
| Input Frequency | 47.5–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–598 Hz |
| Motor Control Method | Sensorless Vector Control and Scalar (V/Hz) Control |
| Built-in Communication | Modbus RTU (RS-485) |
| Optional Communication | PROFINET IO, EtherNet/IP, PROFIBUS DP, DeviceNet, CANopen, TCP/IP |
| Protection Rating | IP00 (UL Open Type) |
| Optional Protection Rating | IP20 enclosure available |
| Cooling Method | Air-cooled |
| Mounting Type | Cabinet installation (drive module) |
| Frame Size | R10 |
| Built-in Features | Safe Torque Off (STO), DC choke, PID controller, energy optimizer, adaptive programming, assistant control panel |
| Operating Temperature | -15°C to +40°C |
| Certifications | CE, UL, cUL, IEC 61800, RoHS |
| Dimensions | 1462 × 350 × 529 mm (H × W × D) |
| Weight | 161 kg |
FAQ
FAQ
Q1: What is the ABB ACS580-04-585A-4?
A1: The ABB ACS580-04-585A-4 is a low-voltage AC general-purpose drive module designed for cabinet installation. It provides reliable speed and torque control for industrial AC motors used in applications such as pumps, compressors, conveyors, mixers, extruders, fans, and material handling systems.
Q2: What does Product ID 3AUA0000170521 represent?
A2: 3AUA0000170521 is the ABB Product ID for the ACS580-04-585A-4 drive module. The equivalent legacy ordering code is 3ABD00036862-D, referring to the same ACS580-04-585A-4 model.
Q3: What motor size can this drive control?
A3: The drive is rated for 315 kW motors with a normal-duty output current of 585 A. It supports 575 A in light-overload operation and 429 A in heavy-duty operation for approximately 250 kW motor loads.
Q4: What input power supply is required?
A4: The ACS580-04-585A-4 operates from a three-phase 380–480 VAC input supply with a frequency range of 47.5–63 Hz.
Q5: Which motor control methods are supported?
A5: The drive supports Sensorless Vector Control and Scalar (V/Hz) Control, providing accurate speed and torque regulation for demanding industrial applications.
Q6: Does the drive support industrial communication?
A6: Yes. The ACS580-04-585A-4 includes built-in Modbus RTU (RS-485) communication and supports optional fieldbus modules including PROFINET IO, EtherNet/IP, PROFIBUS DP, DeviceNet, and CANopen.
Q7: What is the protection rating of this drive module?
A7: The standard ACS580-04-585A-4 module has an IP00 / UL Open Type enclosure rating and is designed for installation inside a control cabinet. An IP20 enclosure option is available.
Q8: What are the dimensions and weight of the drive module?
A8: The ACS580-04-585A-4 uses the R10 frame size, with dimensions of 1462 × 350 × 529 mm (H × W × D) and a net weight of approximately 161 kg.
