Technical Specifications
| Parameter | Description |
|---|---|

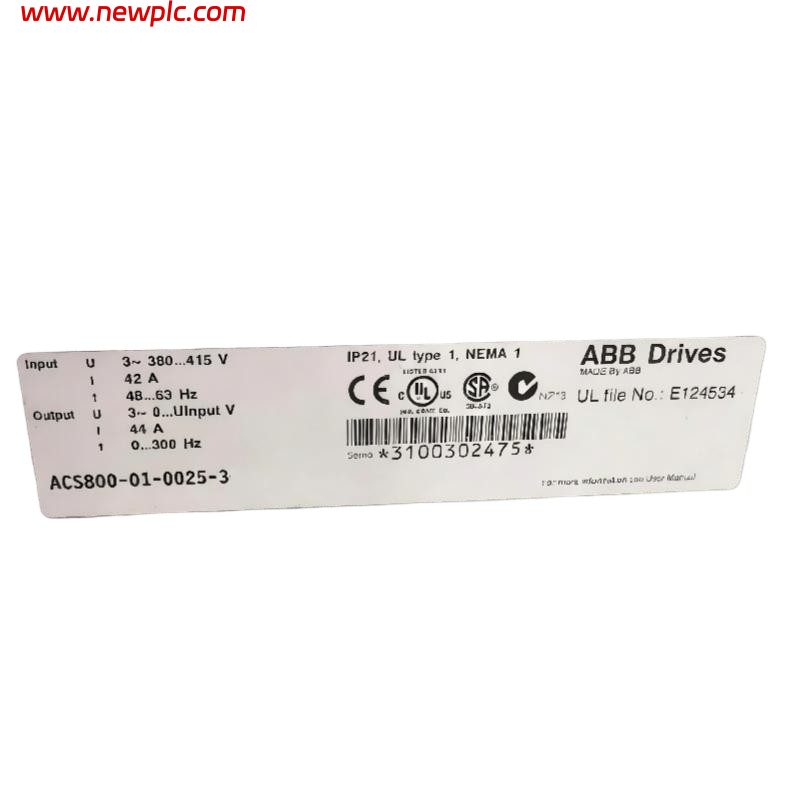

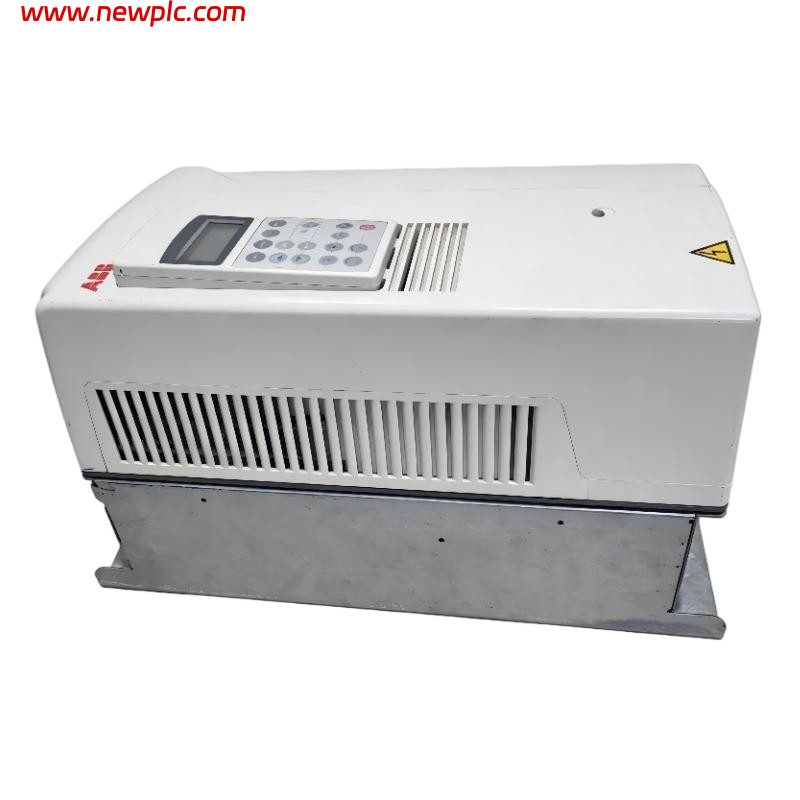

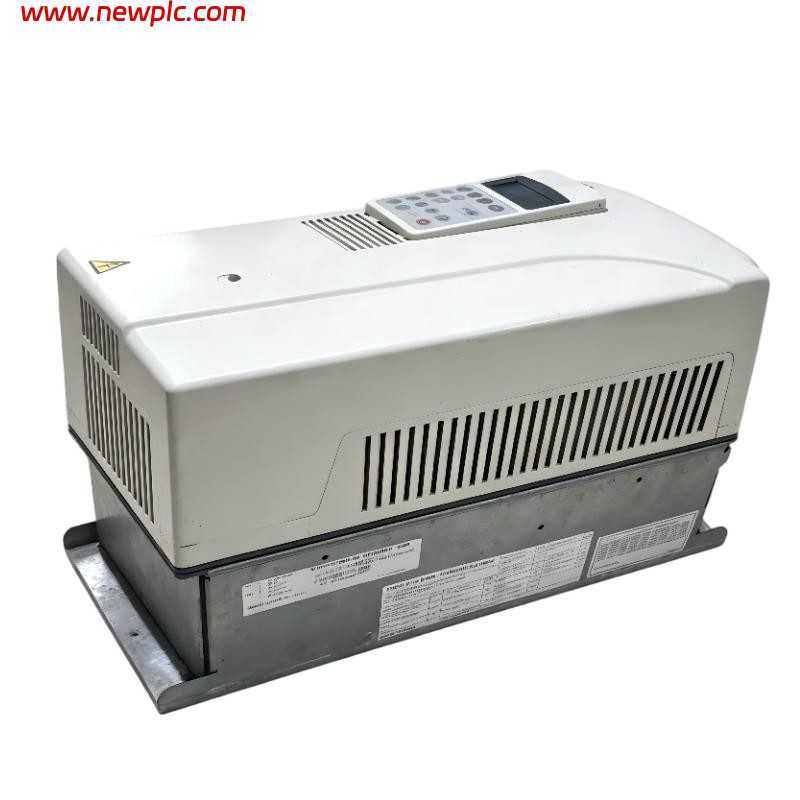

| Product Name | ABB ACS800 Industrial Drive |
| Part Number | ACS800-01-0025-3 |
| Product ID | 64576283 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS800 |
| Function | High-performance AC drive for precise speed and torque control of industrial motors |
| Application | Pumps, Fans, Conveyors, Extruders, Compressors, Mixers, Hoists, Material Handling, Paper, Metal, Chemical, and Process Industries |
| Rated Motor Power | 22 kW (30 HP) |
| Rated Output Current | 44 A |
| Maximum Output Current | 62 A |
| Light-Overload Motor Power | 18.5 kW |
| Heavy-Duty Motor Power | 15 kW |
| Input Voltage | 3 × 380–415 VAC |
| Input Frequency | 50/60 Hz |
| Output Frequency | 0–300 Hz |
| Motor Control Method | Direct Torque Control (DTC) |
| Communication | Optional fieldbus modules (PROFIBUS DP, DeviceNet, CANopen, Modbus, Ethernet options) |
| Built-in Features | DTC motor control, adjustable speed control, programmable protection functions, built-in brake chopper (depending on configuration) |
| Protection Rating | IP21 (UL Type 1) |
| Cooling Method | Air-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R4 |
| Operating Temperature | -15°C to +40°C |
| Certifications | CE, UL, cUL, IEC 61800 |
| Dimensions | 240 × 607 × 274 mm (W × H × D) |
| Weight | 26 kg |
FAQ
FAQ
Q1: What is the ABB ACS800-01-0025-3?
A1: The ABB ACS800-01-0025-3 is a high-performance industrial AC variable frequency drive designed for accurate speed and torque control of three-phase AC motors. It belongs to the ACS800 series and uses ABB’s Direct Torque Control (DTC) technology.
Q2: What does Product ID 64576283 represent?
A2: 64576283 is the ABB Product ID associated with the ACS800-01-0025-3 AC drive.
Q3: What motor size can this drive control?
A3: The drive is designed for motors up to 22 kW (30 HP) under normal-duty operation, with a continuous output current rating of 44 A. It supports higher overload current up to 62 A for short-term demanding applications.
Q4: What input power supply is required?
A4: The ACS800-01-0025-3 requires a three-phase 380–415 VAC power supply and supports industrial 50/60 Hz electrical systems.
Q5: Which motor control technology does it use?
A5: The drive uses ABB Direct Torque Control (DTC) technology, providing fast torque response, accurate speed control, and high dynamic performance without requiring an encoder in many applications.
Q6: What communication options are available?
A6: The ACS800 series supports optional fieldbus communication modules, allowing integration with industrial automation systems using protocols such as PROFIBUS DP, DeviceNet, CANopen, Modbus, and Ethernet-based networks.
Q7: What are the physical dimensions of the drive?
A7: The ACS800-01-0025-3 measures approximately 240 × 607 × 274 mm (W × H × D).
Q8: What is the weight of the drive?
A8: The drive weighs approximately 26 kg.
