Technical Specifications
| Parameter | Description |
|---|---|

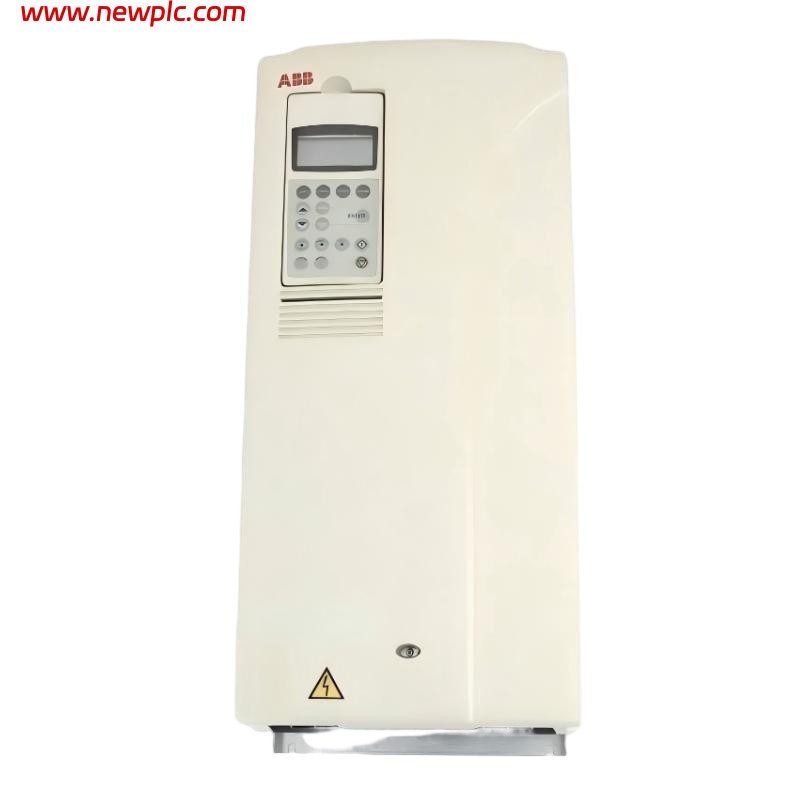

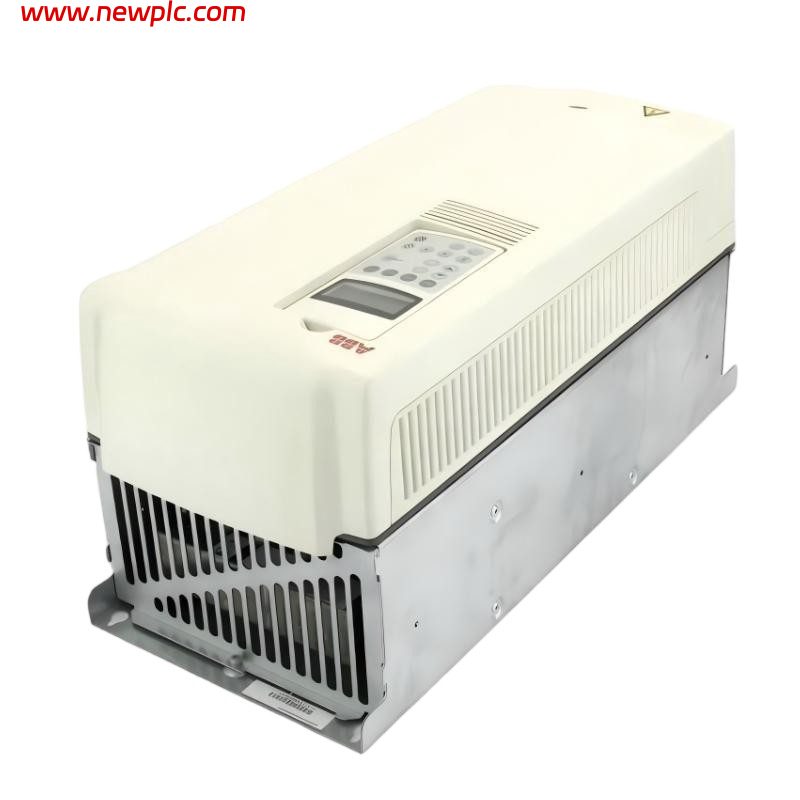

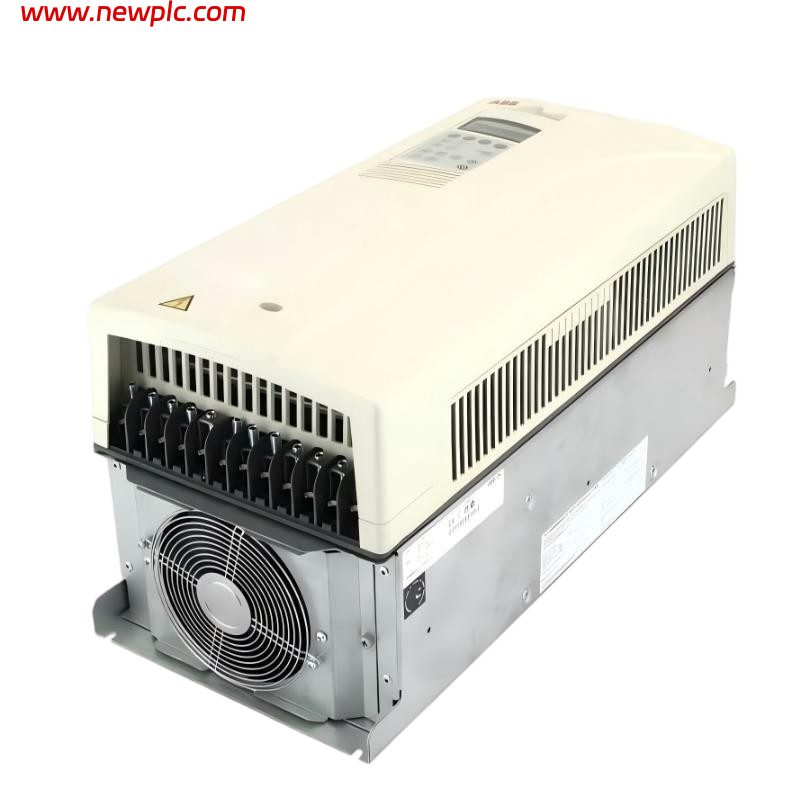

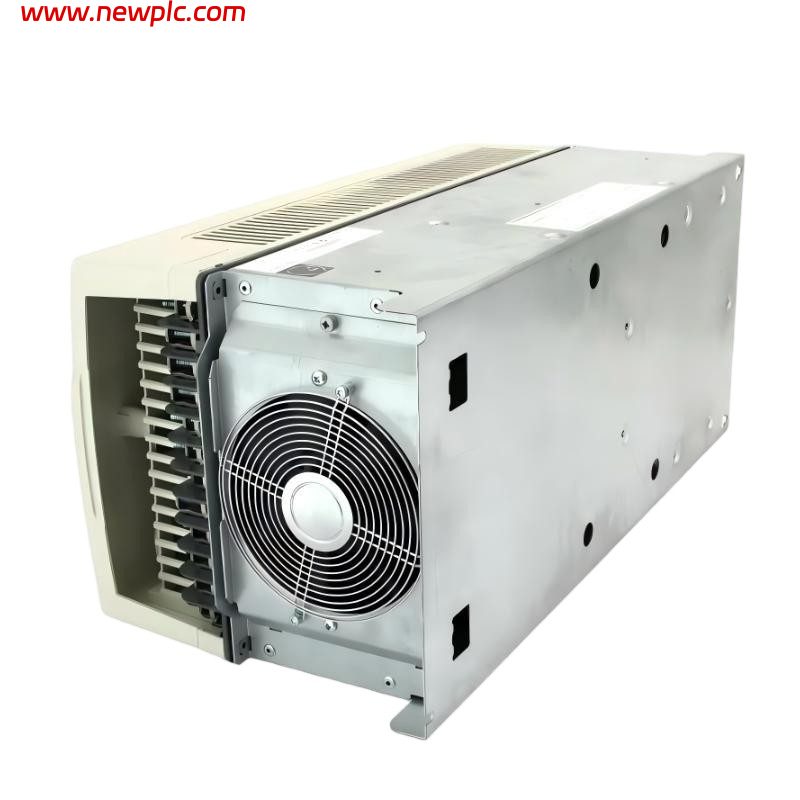

| Product Name | ABB ACS800 Industrial Drive |
| Part Number | ACS800-01-0100-3 |
| Product ID | 64652699 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS800 |
| Function | High-performance AC drive for precise speed and torque control of industrial motors |
| Application | Pumps, Fans, Conveyors, Compressors, Extruders, Mixers, Hoists, Cranes, Material Handling, Paper, Metal, Chemical, Mining, and General Industrial Automation |
| Rated Motor Power | 90 kW (125 HP) |
| Rated Output Current | 166 A |
| Maximum Output Current | 202 A |
| Light-Overload Motor Power | 75 kW (100 HP) |
| Light-Overload Output Current | 155 A |
| Heavy-Duty Motor Power | 55 kW (75 HP) |
| Heavy-Duty Output Current | 115 A |
| Input Voltage | 3 × 380–415 VAC |
| Input Frequency | 48–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–300 Hz |
| Motor Control Method | Direct Torque Control (DTC) |
| Communication | Optional fieldbus adapters (PROFIBUS DP, PROFINET, DeviceNet, CANopen, Modbus RTU, EtherNet/IP) |
| Built-in Features | DTC control, Adaptive Programming, PID controller, EMC filter (E202), programmable I/O, brake chopper control |
| Protection Rating | IP21 (UL Type 1) |
| Cooling Method | Air-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R6 |
| Operating Temperature | -15°C to +40°C (without derating) |
| Certifications | CE, UL, cUL, IEC 61800 |
| Dimensions | 880 × 300 × 399 mm (H × W × D) |
| Weight | 67 kg |
FAQ
FAQ
Q1: What is the ABB ACS800-01-0100-3?
A1: The ABB ACS800-01-0100-3 is a wall-mounted industrial AC variable frequency drive designed for demanding motor control applications. It features ABB’s Direct Torque Control (DTC) technology to provide accurate speed and torque regulation.
Q2: What does Product ID 64652699 represent?
A2: 64652699 is the official ABB Product ID for the ACS800-01-0100-3 drive. It identifies the 380–415 VAC, 90 kW model in the ACS800 industrial drive family.
Q3: What motor size can this drive control?
A3: The drive is rated for 90 kW (125 HP) motors with a continuous output current of 166 A. It also supports 75 kW motors in light-overload applications and 55 kW motors in heavy-duty applications.
Q4: What input power supply is required?
A4: The ACS800-01-0100-3 operates from a three-phase 380–415 VAC power supply with an input frequency range of 48–63 Hz.
Q5: Which motor control technology does it use?
A5: The drive uses ABB’s Direct Torque Control (DTC) technology, providing fast torque response, high speed accuracy, and excellent dynamic performance for industrial motor applications.
Q6: What communication options are available?
A6: The ACS800-01-0100-3 supports optional communication adapters for PROFIBUS DP, PROFINET, DeviceNet, CANopen, Modbus RTU, and EtherNet/IP, enabling seamless integration with PLC and DCS systems.
Q7: What are the physical dimensions of the drive?
A7: The ACS800-01-0100-3 uses the R6 frame and measures 880 × 300 × 399 mm (H × W × D).
Q8: What is the weight of the drive?
A8: The ACS800-01-0100-3 has a net weight of 67 kg, making it suitable for wall-mounted industrial installations.
