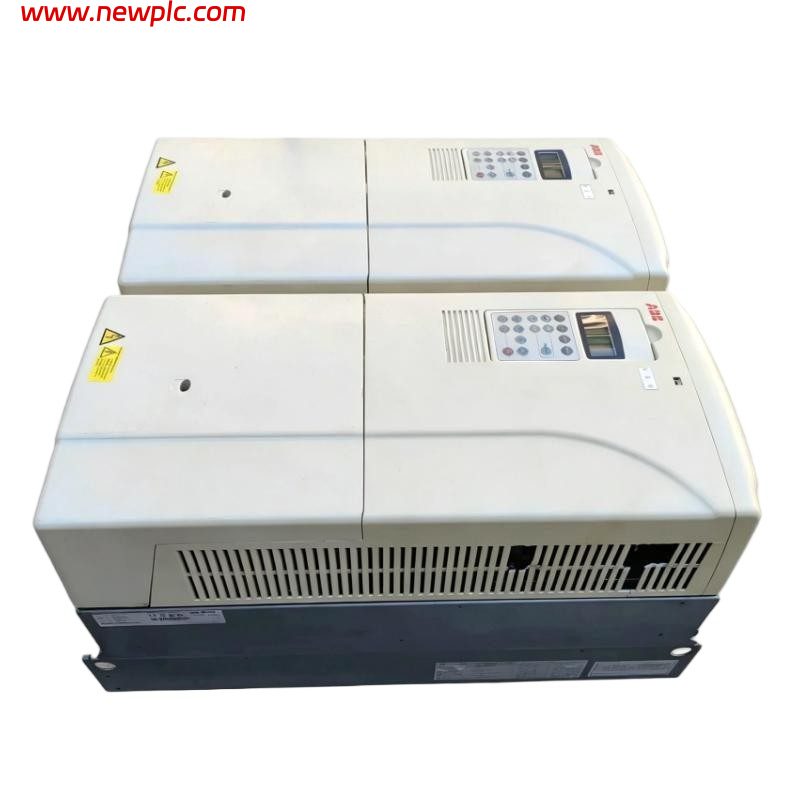

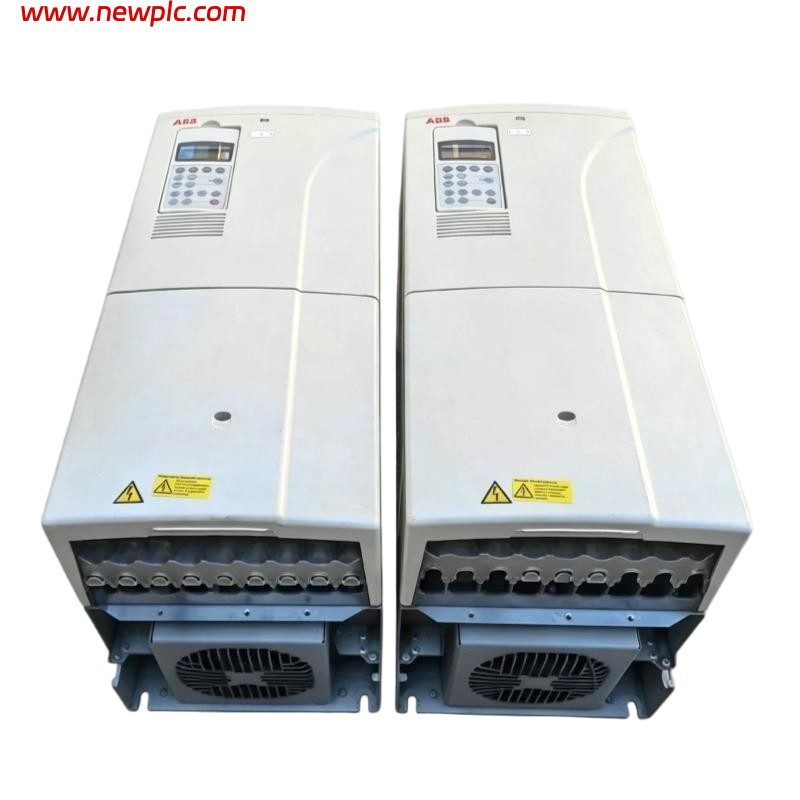

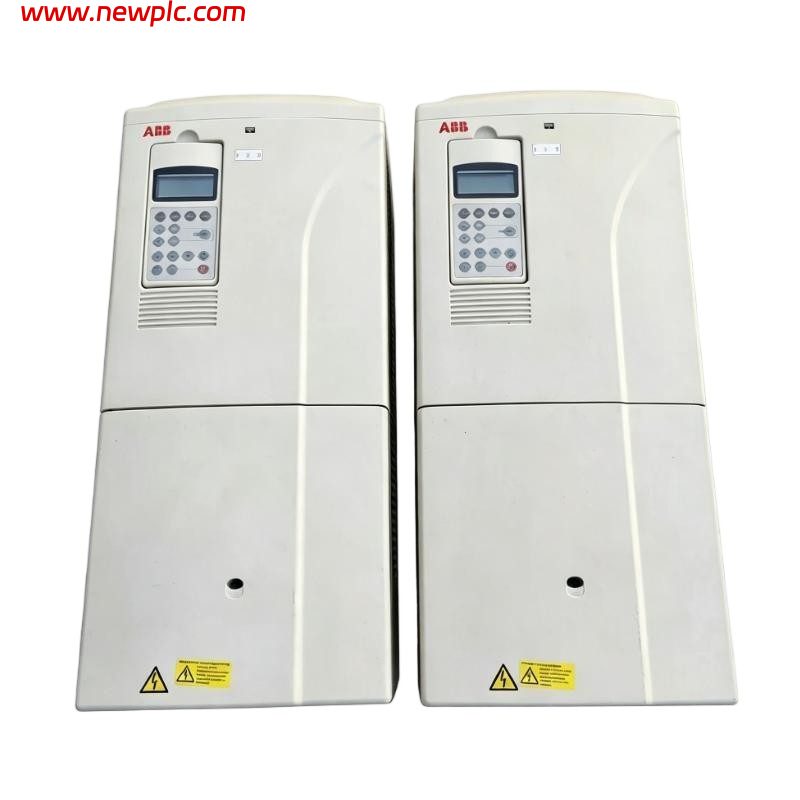

ABB ACS800-01-0120-3 64664425 Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS800-01-0120-3?
A1: The ABB ACS800-01-0120-3 is a wall-mounted industrial AC variable frequency drive designed for demanding motor control applications. It uses ABB’s Direct Torque Control (DTC) technology to deliver accurate speed and torque control for three-phase AC motors.

Q2: What does Product ID 64664425 represent?
A2: 64664425 is the official ABB Product ID for the ACS800-01-0120-3 drive. It identifies the 380–415 VAC, 110 kW model in the ACS800 industrial drive series.

Q3: What motor size can this drive control?
A3: The drive is rated for 110 kW (150 HP) motors with a continuous output current of 202 A. It also supports 90 kW motors in light-overload applications (184 A) and 75 kW motors in heavy-duty applications (141 A).

Q4: What input power supply is required?

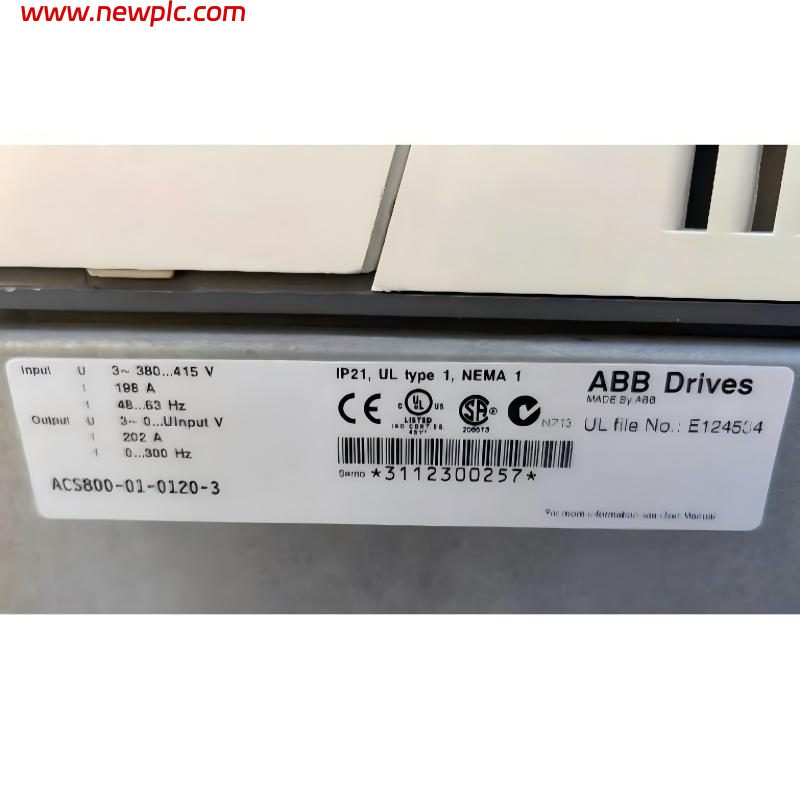

A4: The ACS800-01-0120-3 operates from a three-phase 380–415 VAC power supply with an input frequency range of 48–63 Hz.

Q5: Which motor control technology does it use?
A5: The drive features ABB’s Direct Torque Control (DTC) technology, providing fast torque response, excellent speed accuracy, and high dynamic performance without requiring encoder feedback in many applications.

Q6: What communication options are available?
A6: The ACS800-01-0120-3 supports optional communication adapters for PROFIBUS DP, PROFINET, DeviceNet, CANopen, Modbus RTU, and EtherNet/IP, enabling seamless integration with PLC and DCS systems.

Q7: What are the physical dimensions of the drive?
A7: The ACS800-01-0120-3 uses the R6 frame and measures 880 × 300 × 399 mm (H × W × D).

Q8: What is the weight of the drive?
A8: The drive has a net weight of approximately 67 kg, making it suitable for wall-mounted industrial installations.

64664425 ABB ACS800-01-0120-3
