Technical Specifications
| Parameter | Description |
|---|---|

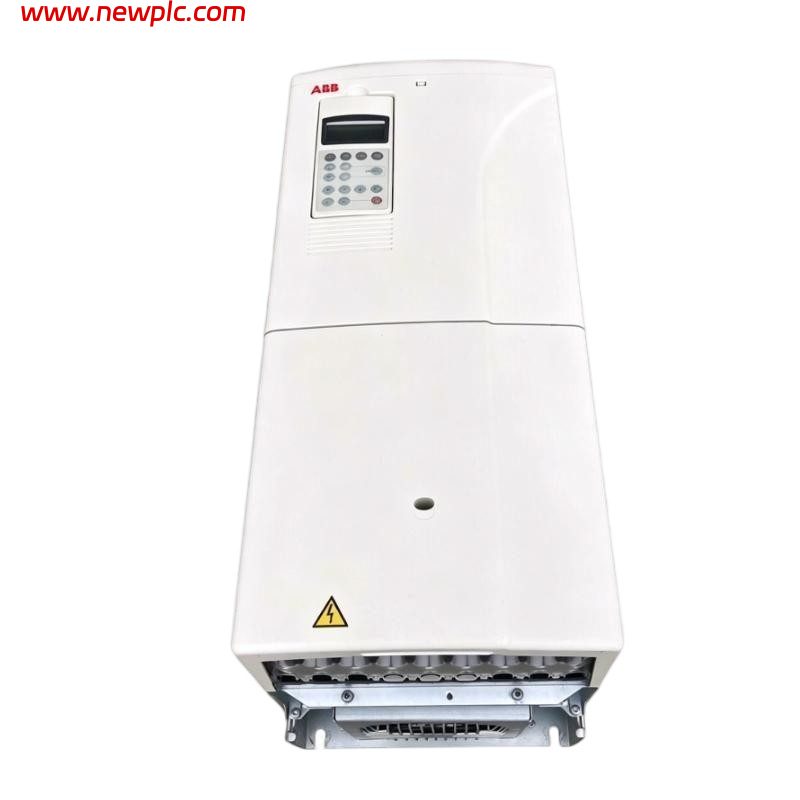

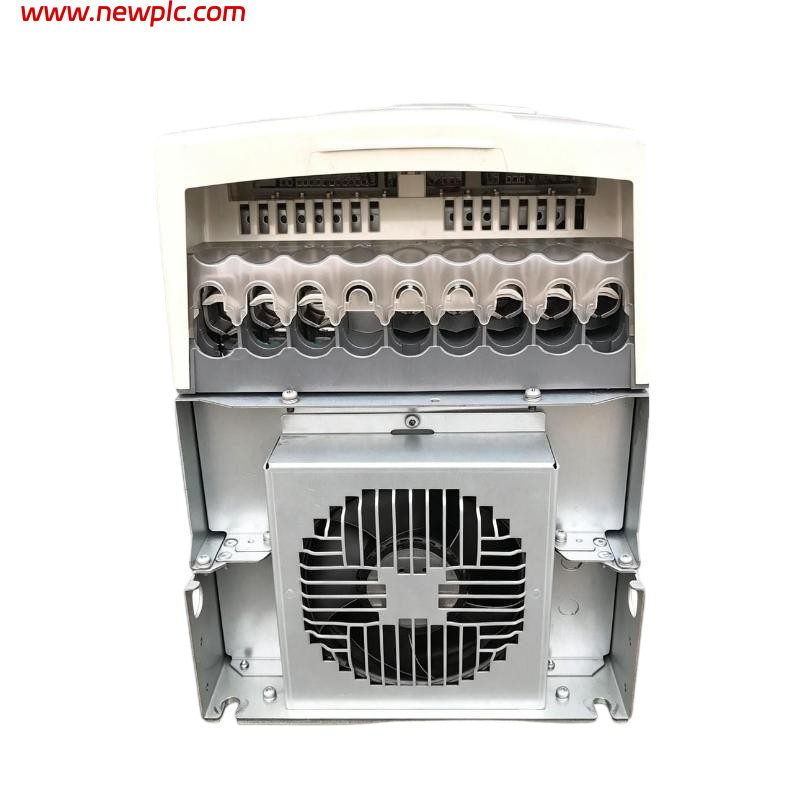

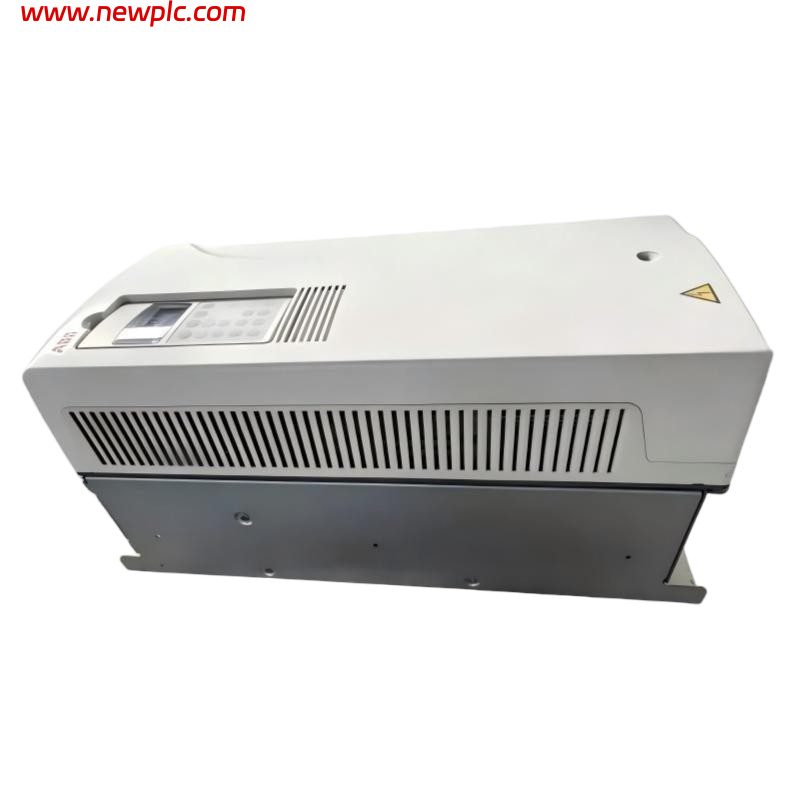

| Product Name | ABB ACS800 Industrial Drive |
| Part Number | ACS800-01-0135-3 |
| Product ID | 3AUA0000015036 |
| Product Type | Low Voltage AC Variable Frequency Drive (VFD) |
| Manufacturer | ABB |
| Series | ACS800 |
| Function | High-performance AC drive for precise speed and torque control of industrial motors |
| Application | Pumps, Fans, Conveyors, Compressors, Mixers, Extruders, Hoists, Cranes, Material Handling, Paper, Metal, Chemical, Mining, and General Industrial Automation |
| Rated Motor Power | 110 kW (150 HP) |
| Rated Output Current | 225 A |
| Maximum Output Current | 326 A |
| Light-Overload Motor Power | 110 kW (150 HP) |
| Light-Overload Output Current | 220 A |
| Heavy-Duty Motor Power | 90 kW (125 HP) |
| Heavy-Duty Output Current | 163 A |

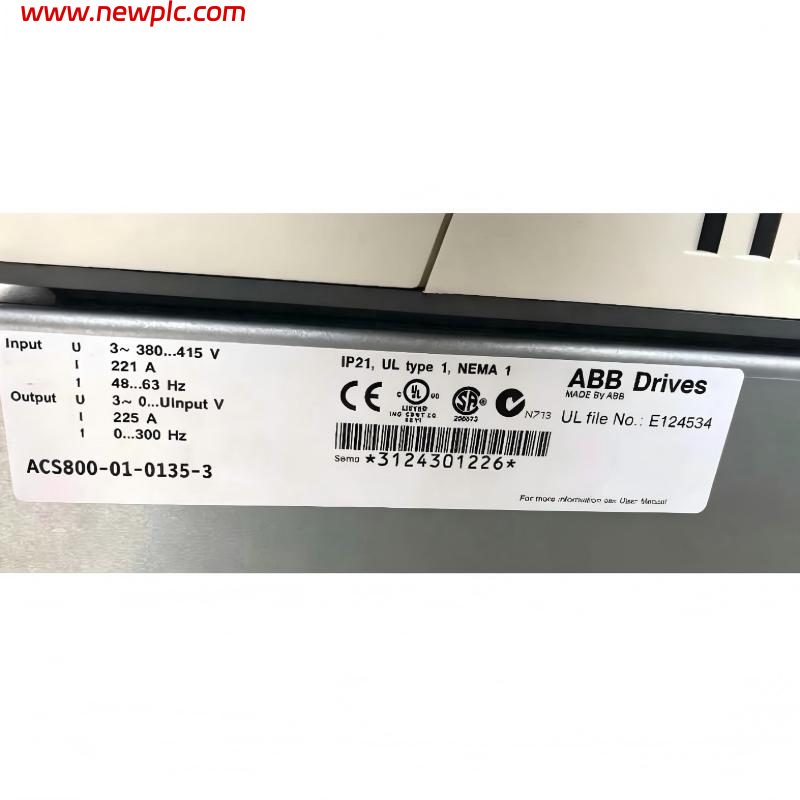

| Input Voltage | 3 × 380–415 VAC |
| Input Frequency | 48–63 Hz |
| Output Voltage | 0 to Input Voltage |
| Output Frequency | 0–300 Hz |
| Motor Control Method | Direct Torque Control (DTC) |
| Communication | Optional fieldbus adapters (PROFIBUS DP, PROFINET, DeviceNet, CANopen, Modbus RTU, EtherNet/IP) |
| Built-in Features | DTC control, Adaptive Programming, PID controller, EMC filter, programmable I/O, brake chopper control |
| Protection Rating | IP21 (UL Type 1) |
| Cooling Method | Air-cooled |
| Mounting Type | Wall-mounted |
| Frame Size | R6 |
| Operating Temperature | -15°C to +40°C (without derating) |
| Certifications | CE, UL, cUL, IEC 61800 |
| Dimensions | 880 × 300 × 399 mm (H × W × D) |
| Weight | 68 kg |
FAQ
FAQ
Q1: What is the ABB ACS800-01-0135-3?
A1: The ABB ACS800-01-0135-3 is a wall-mounted industrial AC variable frequency drive designed for demanding motor control applications. It incorporates ABB’s Direct Torque Control (DTC) technology to provide precise speed and torque regulation for AC motors.
Q2: What does Product ID 3AUA0000015036 represent?
A2: 3AUA0000015036 is the official ABB Product ID for the ACS800-01-0135-3 drive. It identifies the 380–415 VAC, 110 kW model in the ACS800 industrial drive series.
Q3: What motor size can this drive control?
A3: The drive is rated for 110 kW (150 HP) motors with a continuous output current of 225 A. It also supports 110 kW motors in light-overload operation (220 A) and 90 kW (125 HP) motors in heavy-duty operation (163 A).
Q4: What input power supply is required?
A4: The ACS800-01-0135-3 operates from a three-phase 380–415 VAC power supply with an input frequency range of 48–63 Hz.
Q5: Which motor control technology does it use?
A5: The drive uses ABB’s Direct Torque Control (DTC) technology, providing fast torque response, excellent speed accuracy, and high dynamic performance without requiring encoder feedback in many applications.
Q6: What communication options are available?
A6: The ACS800-01-0135-3 supports optional communication adapters for PROFIBUS DP, PROFINET, DeviceNet, CANopen, Modbus RTU, and EtherNet/IP, enabling seamless integration with PLC and DCS systems.
Q7: What are the physical dimensions of the drive?
A7: The ACS800-01-0135-3 uses the R6 frame and measures 880 × 300 × 399 mm (H × W × D).
Q8: What is the weight of the drive?
A8: The drive has a net weight of approximately 68 kg, making it suitable for wall-mounted industrial installations.
