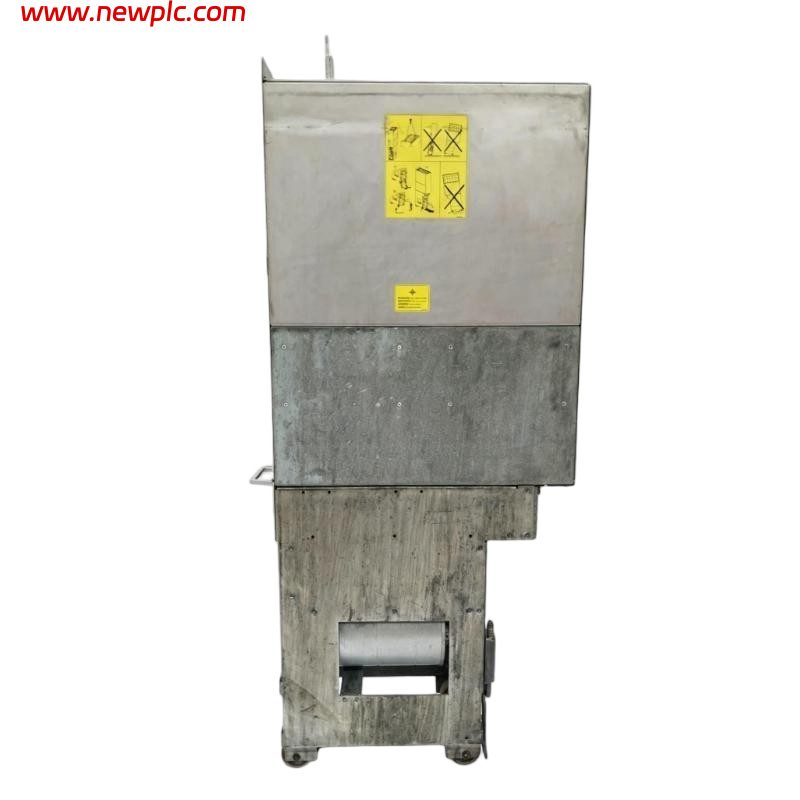

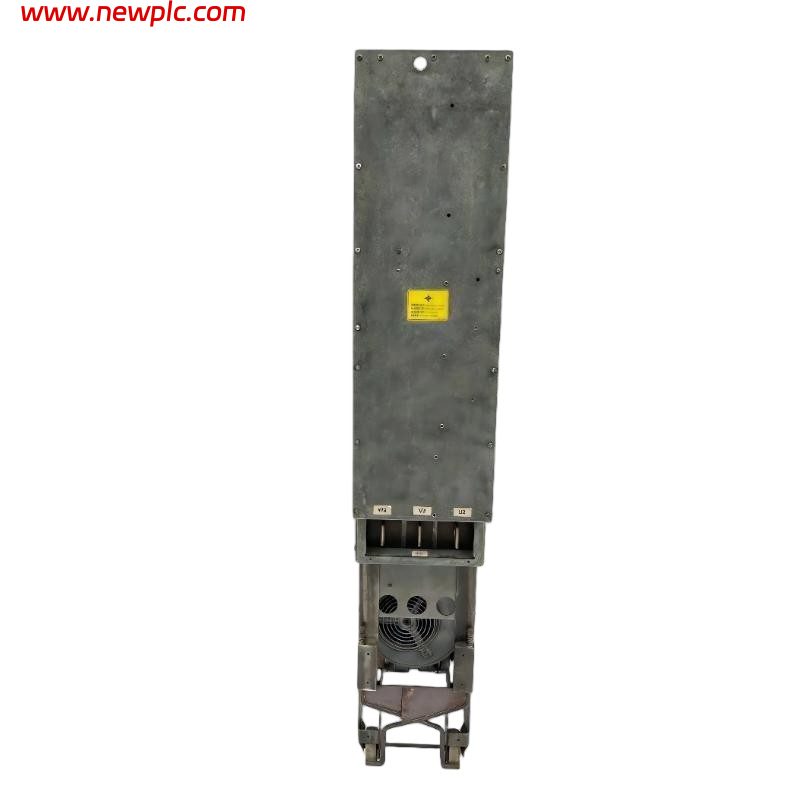

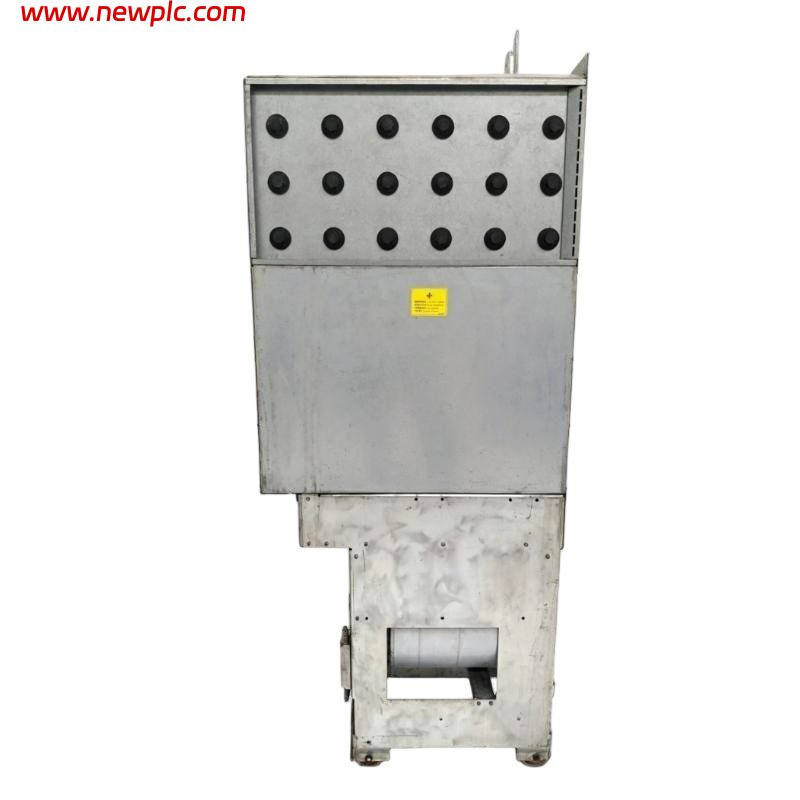

ABB ACS800-104-0580-7+E205+V991 Low Voltage AC Multidrive Inverter Module (VFD Module)

FAQ

Q1: What is the ABB ACS800-104-0580-7+E205+V991?
A1: The ABB ACS800-104-0580-7+E205+V991 is a cabinet-installed multidrive inverter module for high-power industrial applications. It operates from a common DC bus and uses ABB’s Direct Torque Control (DTC) technology for precise motor speed and torque control.

Q2: What does the +E205+V991 option package mean?
A2: The +E205 option provides PCB cooling air filtration, while +V991 identifies the IGBT supply module package/braking configuration used for this multidrive inverter assembly. These options are part of ABB’s factory configuration for the ACS800-104 series.

Q3: What motor size can this inverter module control?
A3: The module is rated for 560 kW (750 HP) motors in light-duty applications with a continuous output current of 486 A. In heavy-duty applications, it is suitable for 355 kW (475 HP) motors with a continuous current of 364 A.

Q4: Is the ACS800-104-0580-7+E205+V991 a complete drive?
A4: No. It is an inverter module designed for installation in an ACS800 multidrive cabinet. It requires a separate line converter to supply the common DC bus and is not intended for standalone operation.

Q5: Which motor control technology does it use?
A5: The module supports ABB Direct Torque Control (DTC) as its primary control method and also supports Scalar (V/Hz) control for applications where vector control is not required.

Q6: What communication options are available?
A6: The inverter module supports optional communication adapters including PROFIBUS DP, PROFINET, DeviceNet, CANopen, Modbus RTU, and EtherNet/IP, allowing integration with PLC and DCS systems.

Q7: What are the physical dimensions of the module?
A7: The ACS800-104-0580-7+E205+V991 uses the R8i frame and measures approximately 1397 × 245 × 596 mm (H × W × D).

Q8: What is the weight of the module?
A8: The inverter module has a net weight of approximately 130 kg, making it suitable for cabinet-mounted heavy-duty industrial installations.
