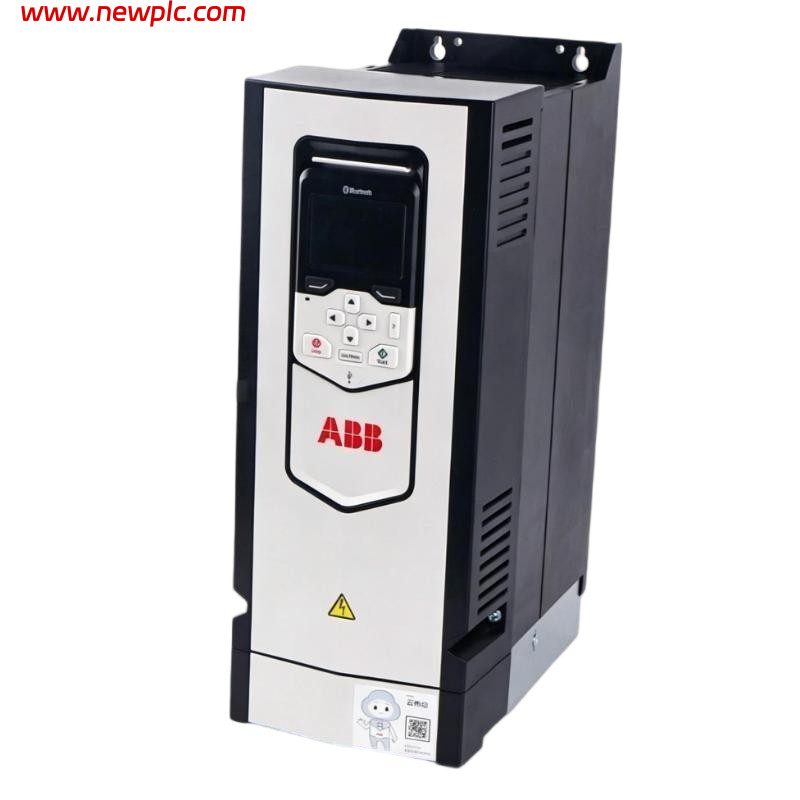

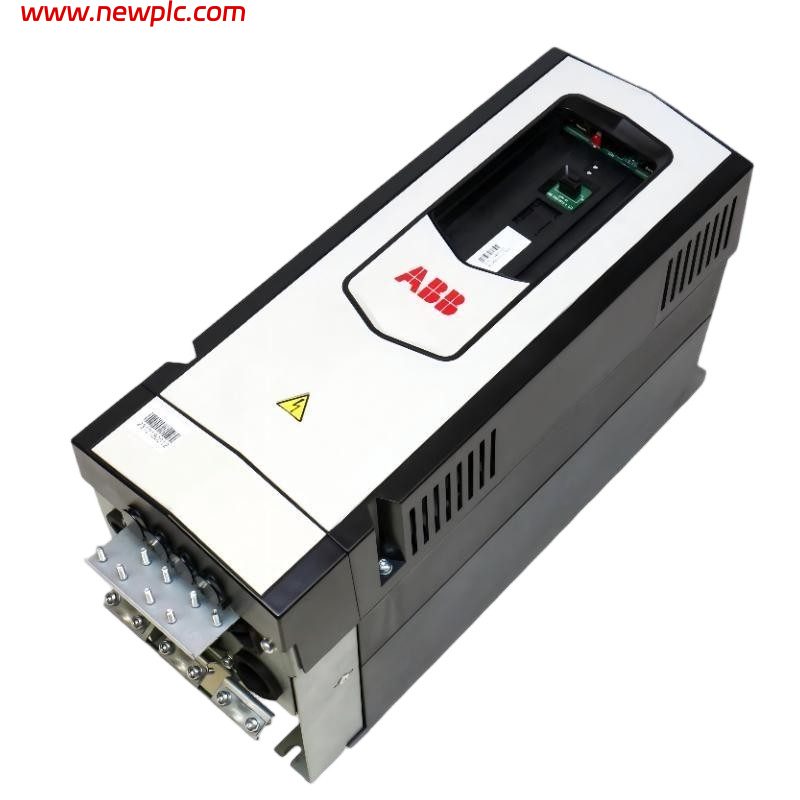

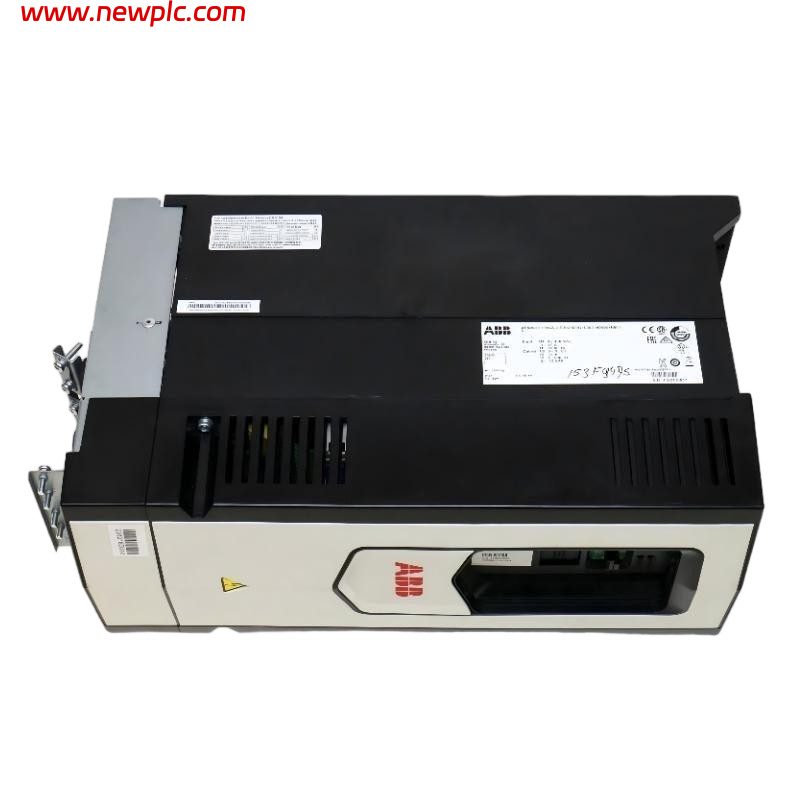

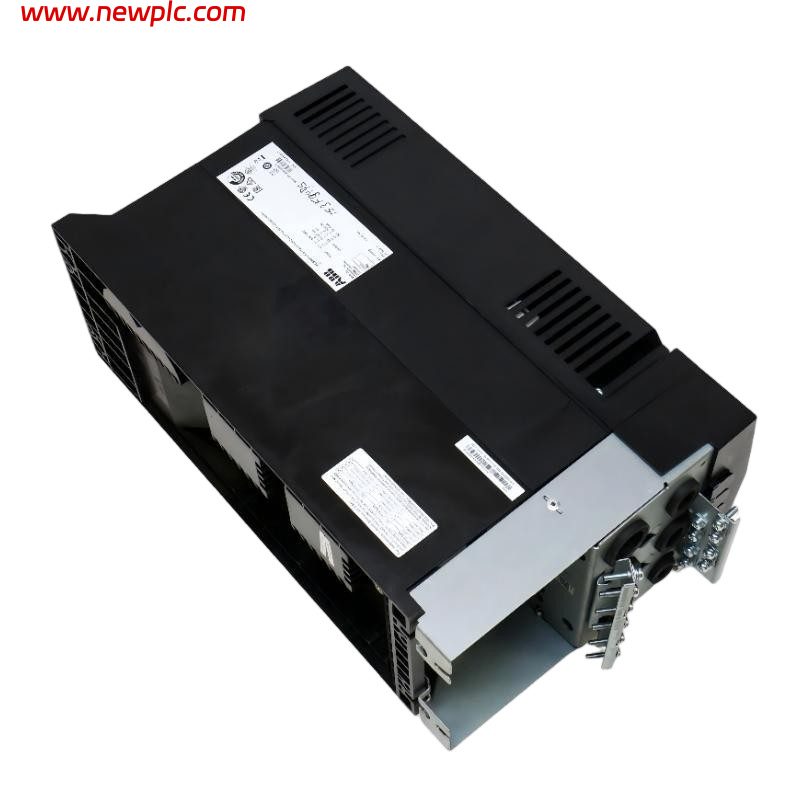

ABB ACS880-01-017A-3 3ABD00035965-D Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS880-01-017A-3?
A1: The ABB ACS880-01-017A-3 is a wall-mounted low-voltage AC variable frequency drive designed for high-performance industrial motor control. It supports induction, permanent magnet, and synchronous reluctance motors using ABB’s Direct Torque Control (DTC) technology.

Q2: What does Product ID 3ABD00035965-D represent?
A2: 3ABD00035965-D is the ABB Product ID for the ACS880-01-017A-3, identifying the 380–415 V, 7.5 kW, 17 A industrial drive in the ACS880 series.

Q3: What motor size can this drive control?
A3: Under normal-duty operation, the drive is rated for 7.5 kW (10 HP) motors with a continuous output current of 17 A. In heavy-duty applications, it supports 5.5 kW (7.5 HP) motors with an output current of 12.6 A.

Q4: What input power supply is required?
A4: The ACS880-01-017A-3 operates from a three-phase 380–415 VAC power supply with an input frequency range of 47.5–63 Hz.

Q5: Which motor control technology does it use?
A5: The drive uses ABB’s Direct Torque Control (DTC) technology and also supports Scalar (V/Hz) control, delivering fast torque response and accurate speed regulation for demanding industrial applications.

Q6: What communication options are available?
A6: The ACS880-01-017A-3 includes USB and RS-485 connectivity and supports optional communication modules for PROFINET IO, EtherNet/IP, PROFIBUS DP, CANopen, DeviceNet, and Modbus TCP, allowing seamless integration into PLC and DCS systems.

Q7: What are the physical dimensions of the drive?
A7: The ACS880-01-017A-3 uses the R2 frame and measures 409 × 155 × 249 mm (H × W × D).

Q8: What is the weight of the drive?
A8: The ACS880-01-017A-3 has a net weight of approximately 8 kg, making it suitable for compact wall-mounted industrial installations.

3ABD00035965-D ABB ACS880-01-017A-3
