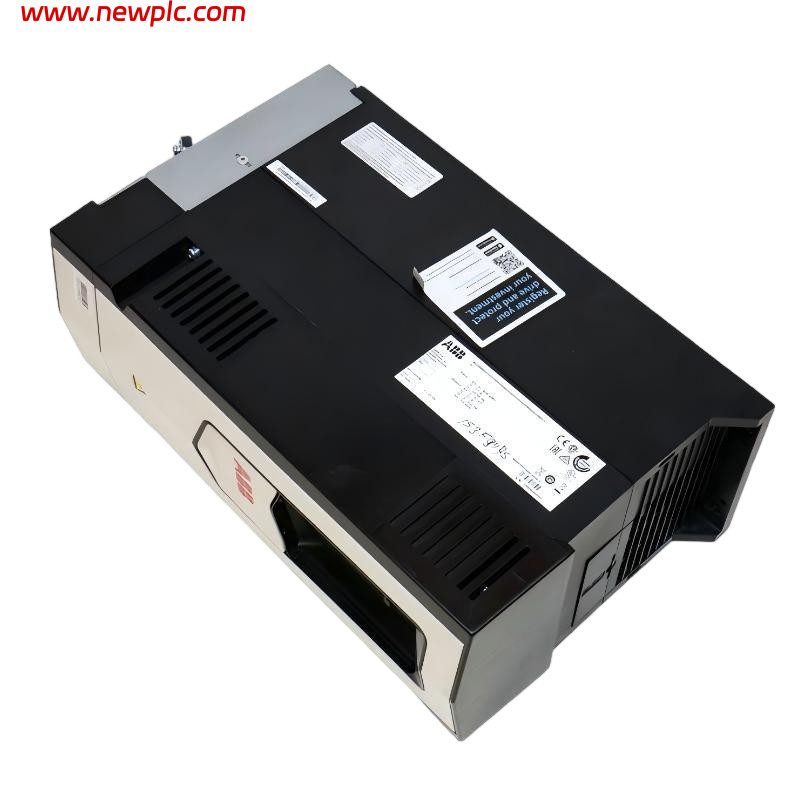

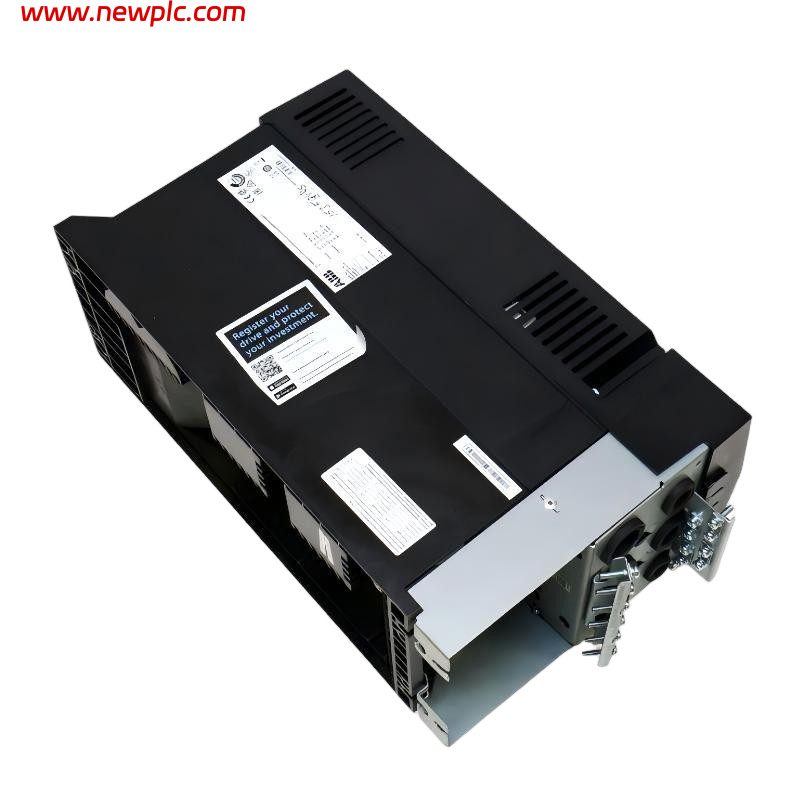

ABB ACS880-01-105A-3 3ABD00035950-D Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS880-01-105A-3?
A1: The ABB ACS880-01-105A-3 is a wall-mounted low-voltage industrial AC drive designed for demanding motor control applications. It provides accurate speed and torque control for induction, permanent magnet, and synchronous reluctance motors using ABB Direct Torque Control (DTC) technology.

Q2: What does Product ID 3ABD00035950-D represent?
A2: 3ABD00035950-D is the ABB product identifier for the ACS880-01-105A-3, a 400 V class, 55 kW, 105 A ACS880 industrial drive model.

Q3: What motor size can this drive control?
A3: The drive is rated for 55 kW (75 HP) motors in normal-duty operation with a continuous output current of 105 A. For heavy-duty applications, it supports approximately 45 kW (60 HP) motors with an output current of 87 A.

Q4: What input power supply is required?
A4: The ACS880-01-105A-3 requires a three-phase 380–415 VAC power supply with an input frequency range of 47.5–63 Hz.

Q5: Which motor control technology does it use?
A5: The drive uses ABB’s Direct Torque Control (DTC) technology and supports Scalar (V/Hz) control, providing fast torque response, accurate speed regulation, and stable motor operation.

Q6: What communication options are available?
A6: The ACS880-01-105A-3 includes USB and RS-485 interfaces and supports optional industrial communication protocols including PROFINET IO, EtherNet/IP, PROFIBUS DP, CANopen, DeviceNet, and Modbus TCP.

Q7: What are the physical dimensions of the drive?
A7: The ACS880-01-105A-3 uses the R6 frame and has approximate dimensions of 848 × 252 × 317 mm (H × W × D).

Q8: What is the weight of the drive?
A8: The ACS880-01-105A-3 has a net weight of approximately 50 kg.

3ABD00035950-D ABB ACS880-01-105A-3
