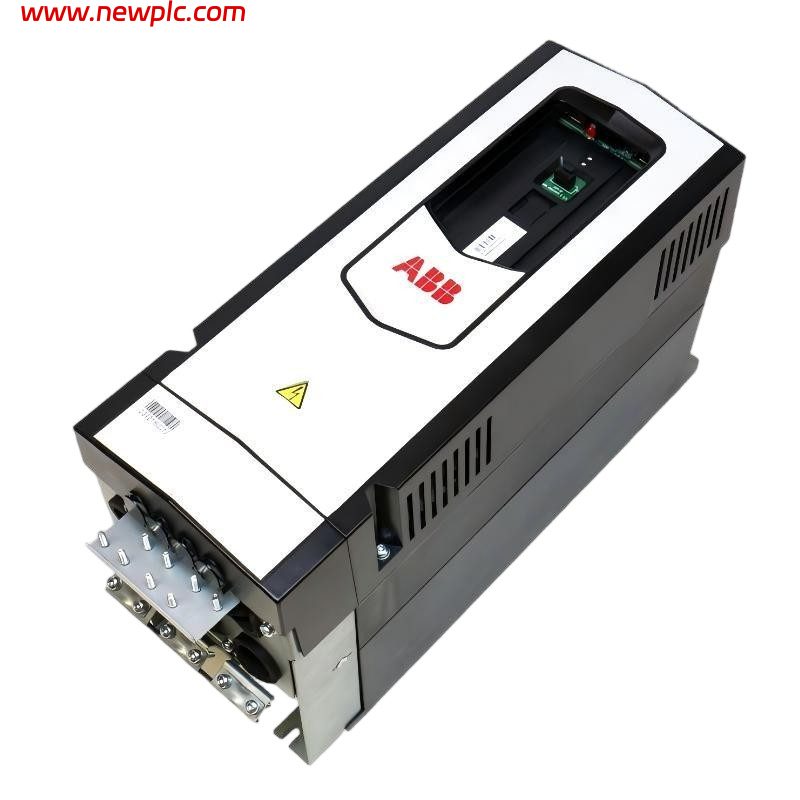

ABB ACS880-01-105A-3 3AUA0000108025 Low Voltage AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the ABB ACS880-01-105A-3?
A1: The ABB ACS880-01-105A-3 is a low-voltage industrial wall-mounted AC drive designed for demanding motor control applications. It provides accurate speed and torque control for induction, permanent magnet, and synchronous reluctance motors using ABB Direct Torque Control (DTC) technology.

Q2: What does Product ID 3AUA0000108025 represent?
A2: 3AUA0000108025 is the ABB Product ID for the ACS880-01-105A-3. It identifies the 400 V class, 55 kW, 105 A industrial drive model in the ACS880 series.

Q3: What motor size can this drive control?
A3: The drive is rated for 55 kW (75 HP) motors in normal-duty operation with a continuous output current of 105 A. For heavy-duty applications, it supports approximately 45 kW (60 HP) motors with an output current of 87 A.

Q4: What input power supply is required?
A4: The ACS880-01-105A-3 requires a three-phase 380–415 VAC power supply with an input frequency range of 47.5–63 Hz.

Q5: Which motor control technology does it use?
A5: The drive uses ABB’s Direct Torque Control (DTC) technology and supports Scalar (V/Hz) control, providing fast torque response, accurate speed regulation, and stable motor operation.

Q6: What communication options are available?
A6: The ACS880-01-105A-3 supports industrial communication through optional fieldbus adapters, including protocols such as PROFINET IO, EtherNet/IP, PROFIBUS DP, CANopen, DeviceNet, and Modbus TCP.

Q7: What are the physical dimensions of the drive?
A7: The ACS880-01-105A-3 uses the R6 frame and measures approximately 848 × 252 × 317 mm (H × W × D).

Q8: What is the weight of the drive?
A8: The ACS880-01-105A-3 has a net weight of approximately 50 kg.

3AUA0000108025 ABB ACS880-01-105A-3
