Technical Specifications
| Item | Specification |
|---|---|

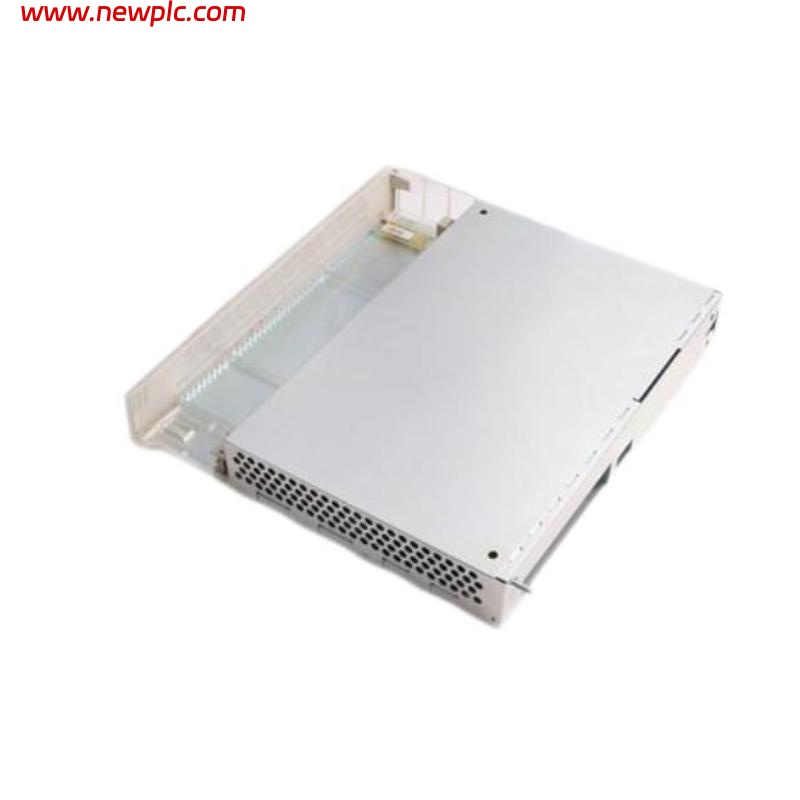

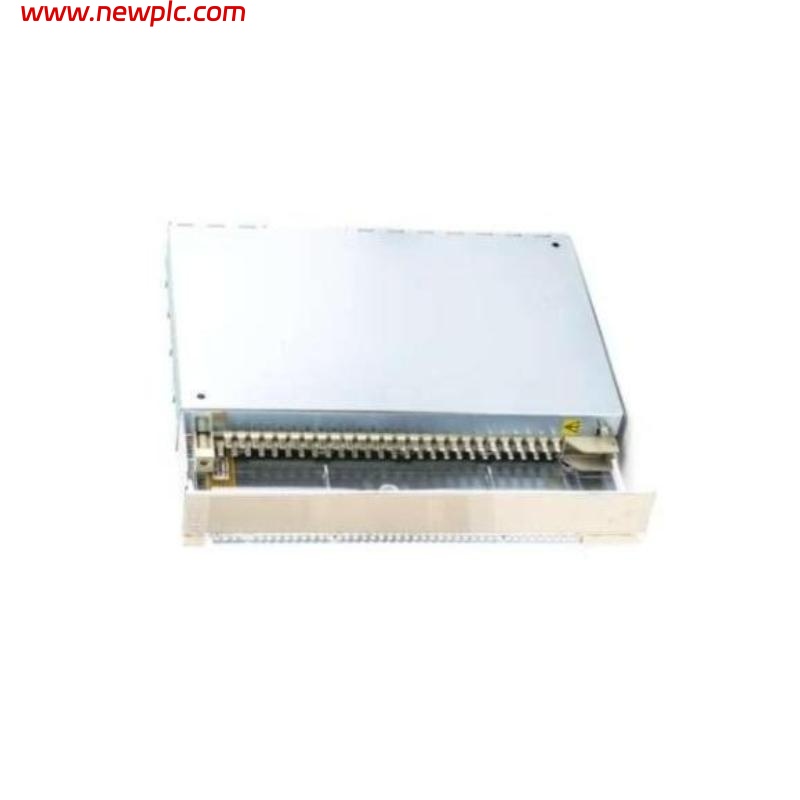

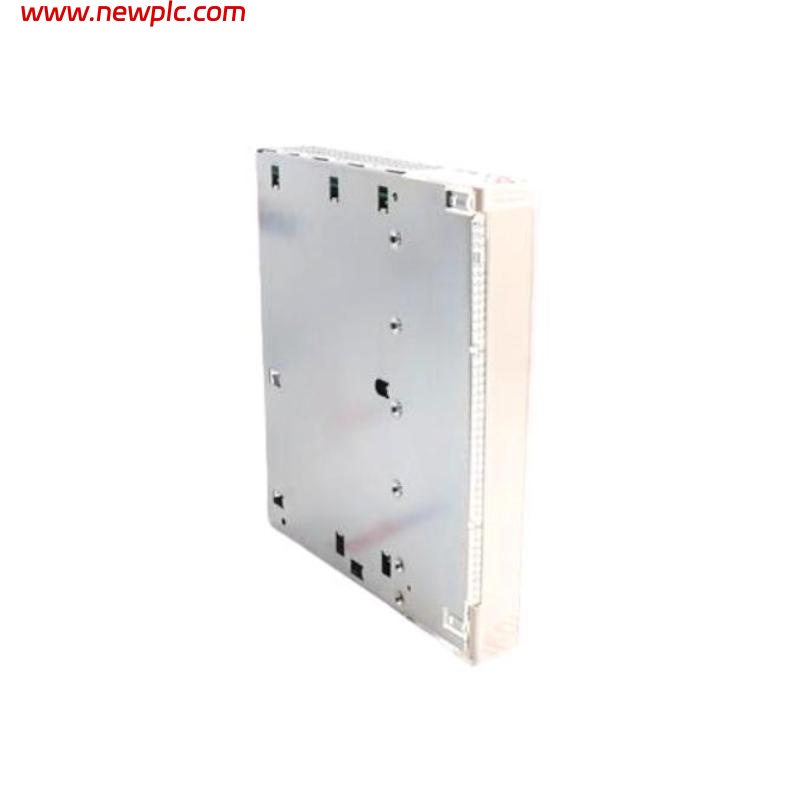

| Model | ABB AO610 (Ordering No. 3BHT300008R1) |
| Type | Analog Output Module |
| Product Category | PLC / DCS I/O Module |
| Product Family | ABB S900 / Advant Controller I/O System |
| Function | Provides isolated analog output signals for control applications |
| Number of Output Channels | 6 channels |
| Output Signal Types | Configurable 0–10 V or 4–20 mA per channel |
| Output Resolution | High-resolution industrial analog output |
| Output Accuracy | Precision performance for control and monitoring |
| Output Load Capability | Supports standard industrial analog loads |
| Isolation | Galvanic isolation between channels and system backplane |
| Status Indication | LEDs for module power and channel status |
| Mounting Method | DIN rail or rack mount via terminal base |
| Field Wiring Connection | Screw terminal or plug-in terminal base |
| Operating Temperature Range | –20 °C to +55 °C |
| Storage Temperature Range | –40 °C to +70 °C |
| Protection Rating | IP20 |
| Housing Material | Industrial-grade plastic |
| Application Environment | Industrial automation and process control cabinets |
| Compatibility | ABB S900 / Advant Controller I/O systems |
| Dimensions | Approx. 20 mm × 104 mm × 104 mm (W × H × D) |
| Weight | Approximately 0.24 kg |
FAQ
FAQ
Q1: What is the main function of the ABB AO610 module?
It provides multiple isolated analog output channels used to generate precision control signals for actuators, valves, drives, and other devices in industrial automation systems.
Q2: How many analog output channels does the AO610 provide?
The module offers six independent analog output channels.
Q3: What types of analog outputs does the AO610 support?
Each channel can be configured for standard analog signal types such as 0–10 V or 4–20 mA.
Q4: Does the AO610 module provide electrical isolation?
Yes, it provides galvanic isolation between the output channels and the system backplane for improved signal integrity and safety.
Q5: How are the outputs connected to external field devices?
Outputs are connected through screw terminal blocks or a plug-in terminal base connector for secure field wiring.
Q6: Does the module include status indication?
Yes, it has LED indicators that show power presence and individual channel status.
Q7: Can the AO610 operate in harsh industrial environments?
Yes, it is designed for industrial control cabinets and automation applications within its specified temperature range.
Q8: What are the physical dimensions and weight of the AO610?
The module measures approximately 20 mm × 104 mm × 104 mm and weighs about 0.24 kg.
