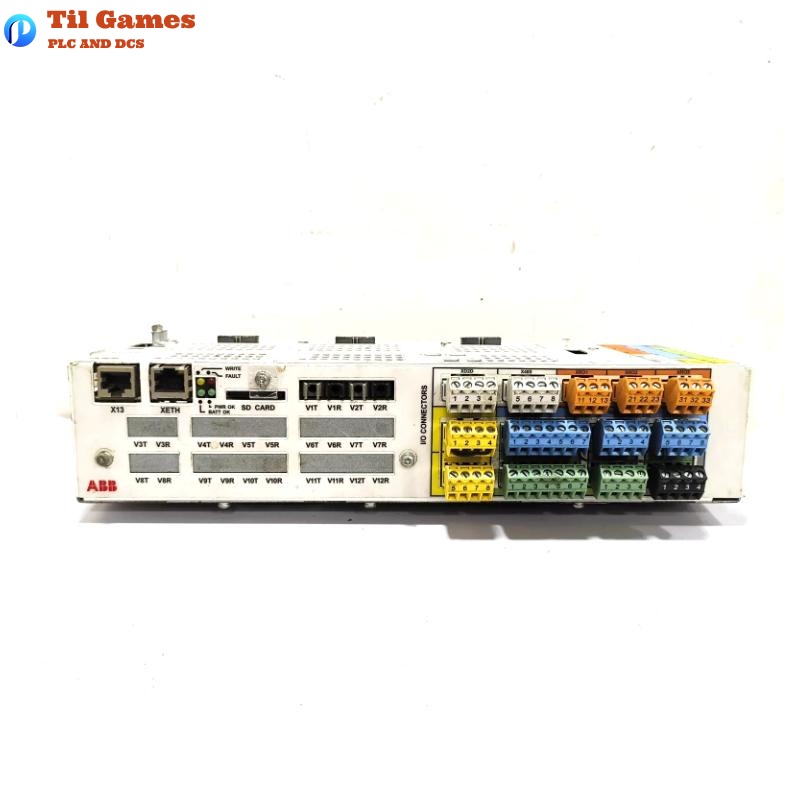

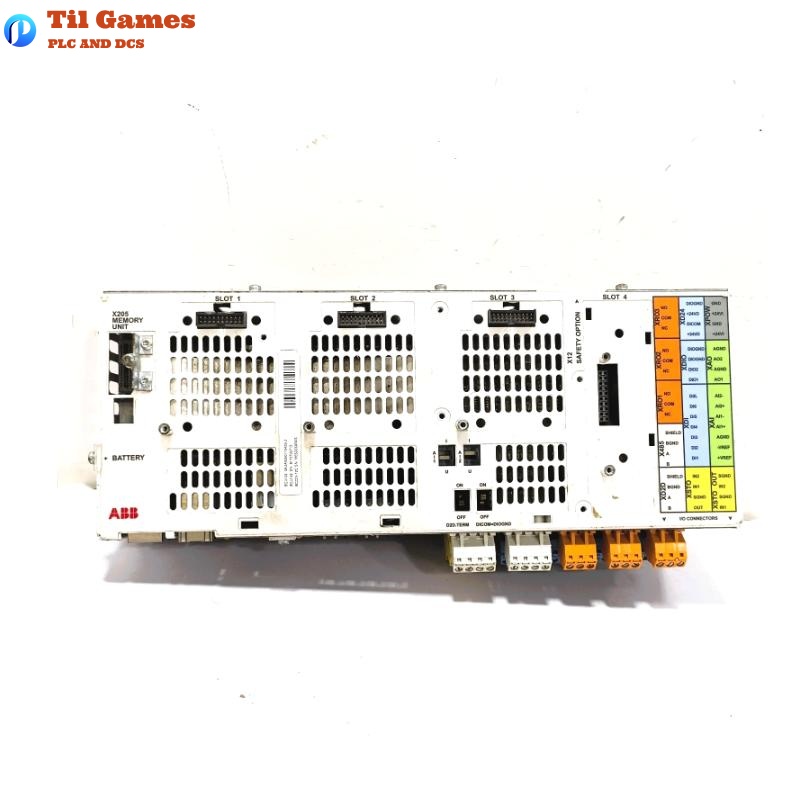

Technical Specifications
| Parameter | Description |
|---|---|
| Model | BCU-02 |
| Power Supply | 24 V DC (±10%), 2 A (XPOW) |
| Relay Outputs | 3x (XRO1…XRO3), 250 V AC / 30 V DC, 2 A |
| Digital Inputs (XDI1…XDI6) | 24 V logic, NPN/PNP, Rin 2.0 kΩ, max current: 15 mA (DI1–5), 5 mA (DI6) |
| Digital Interlock Input (DIIL) | 24 V logic, Rin 2.0 kΩ, NPN/PNP type |
| Digital I/O Ports (DIO1, DIO2) | Configurable as input/output, 24 V logic |
| Analog Inputs (AI1, AI2) | Voltage: ±10 V, Rin > 200 kΩ; Current: ±20 mA, Rin = 100 Ω |
| Analog Outputs (AO1, AO2) | 0–20 mA, load < 500 Ω |
| SDHC Card Slot | Max 4 GB |
| Real-Time Clock Battery | BR2032 |
| Fiber Optic Connections | 2 pairs (V1T/V1R, V2T/V2R) |
| Safe Torque Off (STO) | Inputs: IN1/IN2, Logic: 0 < 5 V, 1 > 17 V, 66 mA/channel |
| Display | 7-segment LED, fault/status indication |
| Dimensions (W x H x D) | 314 mm × 139 mm × 115 mm |
| Weight | 0.6 kg |
| Mounting | DIN rail 35×7.5/15 mm |
| Environmental Rating | IP10 |
| Operating Temperature | 0…70 °C |
FAQ
Frequently Asked Questions (FAQ)
Q1: What power supply is required for the BCU-02?
A1: A 24 V DC ±10% power supply with 2 A current rating is required.
Q2: Can the BCU-02 be used with fiber optic communication?
A2: Yes, it supports two fiber optic connections (V1 and V2 channels).
Q3: How do I replace the memory card in the BCU-02?
A3: Power off the unit, unscrew the SD card cover, remove and replace the SDHC card.
Q4: What is the function of the digital interlock input (DIIL)?
A4: It serves as a run-enable signal in the default configuration of the ACS880 primary control program.
Q5: What is the STO interface used for?
A5: The Safe Torque Off (STO) function ensures the motor cannot rotate by removing torque.
Q6: How is the unit mounted in an enclosure?
A6: It is mounted on a 35 mm DIN rail, either horizontally or vertically.
Q7: Can the unit be powered redundantly?
A7: Yes, two separate 24 V DC supplies can be connected for redundancy.
Q8: Is the analog input configurable for both voltage and current?
A8: Yes, input mode can be selected using dip switches for AI1 and AI2.
