Technical Specifications
| Parameter | Specification |
|---|---|

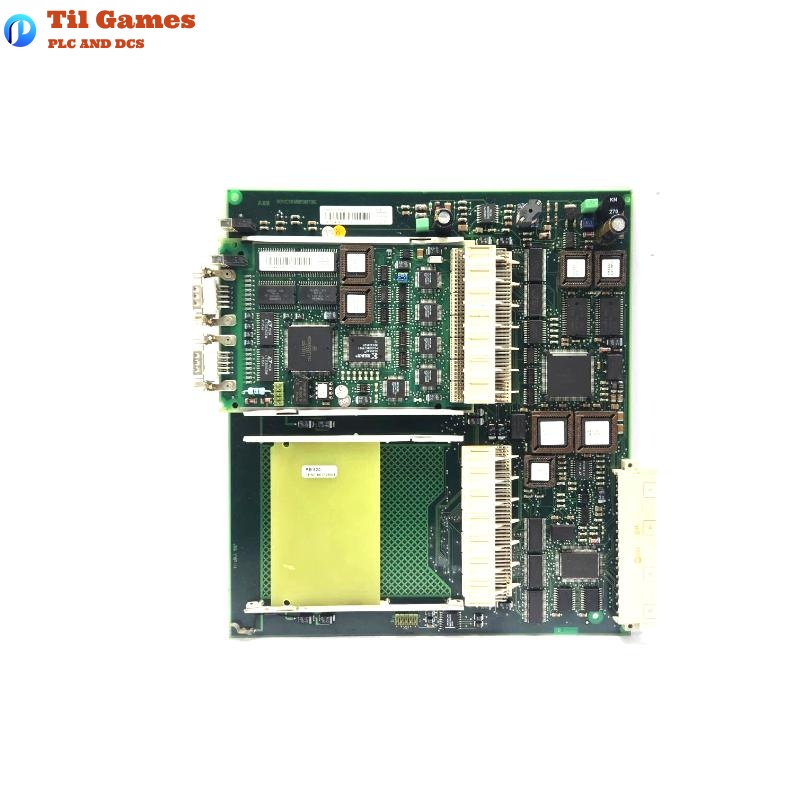

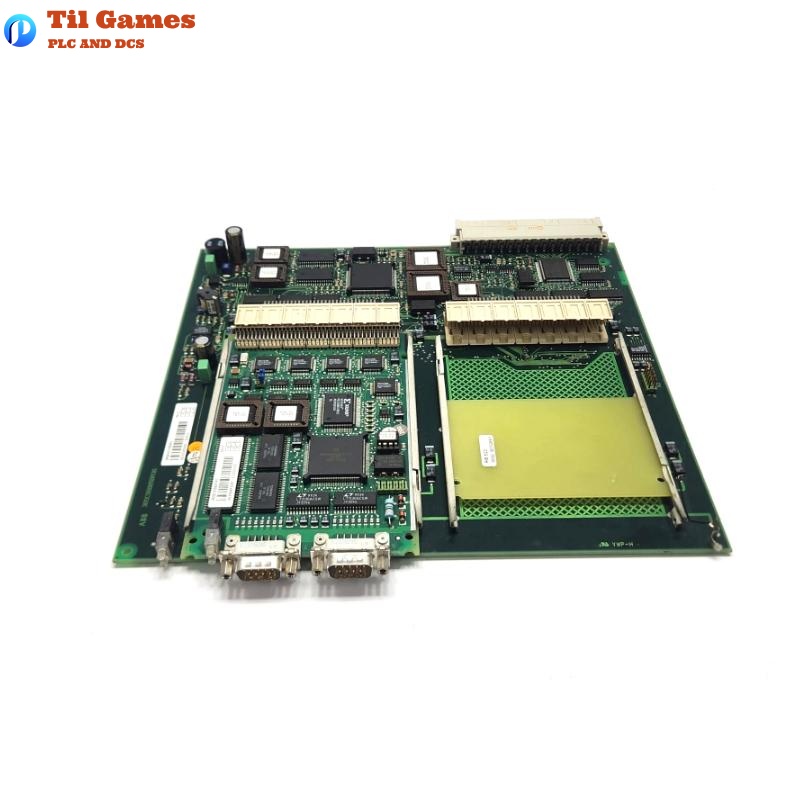

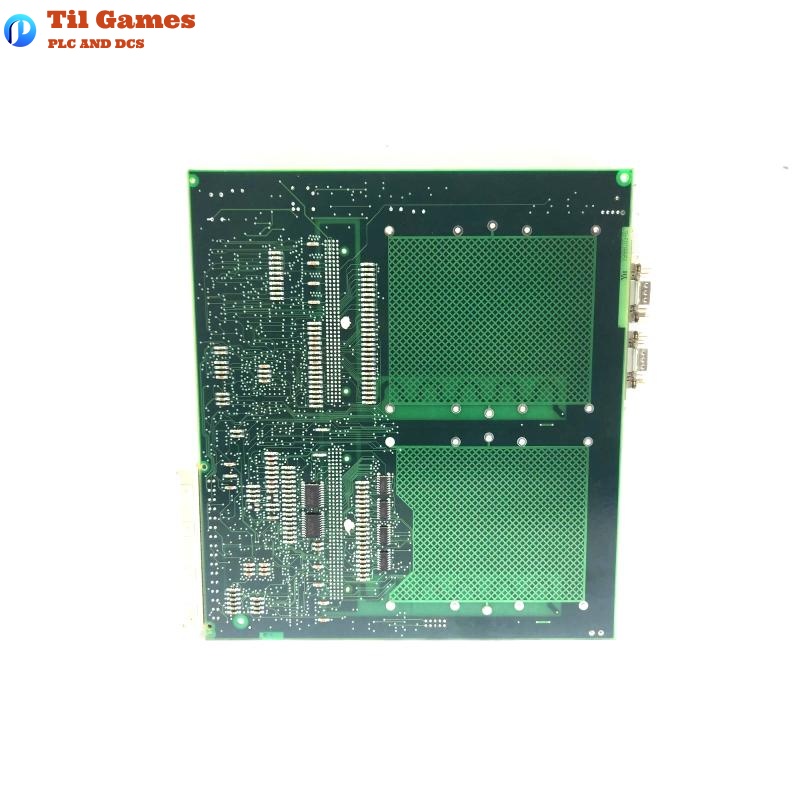

| Module Name | CI532V02 MODBUS Interface Sub Module |
| Product Type | Communication Submodule for MVI-MODBUS Protocol |
| Communication Ports | 2 Independent Asynchronous RS-232 (V.24) Ports |
| Supported Protocols | MODBUS RTU (Binary) and ASCII |
| Transmission Speed | 150 – 19200 bits/s |
| Communication Roles | Configurable as Master or Slave |
| Supported Function Codes | 1, 2, 3, 4, 5, 6, 7, 8, 15, 16 |
| Max Slaves per Port | 8 |
| Max MVB per Port | 340 |
| Max Registers per MVB | 125 Integer or 2000 Booleans |
| Installation Location | On SC610 Submodule Carrier in AC110 Controller |
| Dimensions (W×H×D) | 234 × 22.5 × 108 mm |
| Weight | 0.155 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What MODBUS function codes are supported by CI532V02?
A1: It supports function codes 1, 2, 3, 4, 5, 6, 7, 8, 15, and 16 for digital and analog read/write operations and diagnostics.
Q2: How many MODBUS slaves can each port of the CI532V02 module handle?
A2: Each port can handle up to 8 slave devices.
Q3: Can CI532V02 operate in both master and slave modes?
A3: Yes, each port can be individually configured as either master or slave.
Q4: What is the maximum communication speed of the module?
A4: It supports speeds up to 19200 bits per second.
Q5: Where is the CI532V02 installed within the AC110 system?
A5: It is installed in a free slot of the SC610 submodule carrier.
Q6: Is a PC program required for operation?
A6: A PC program (AMPL) is required for master mode to control MVB execution. It is not needed in slave mode.
Q7: Does the module support MODBUS ASCII communication?
A7: Yes, ASCII mode is supported. Each port can use either RTU or ASCII independently.
Q8: Does the module provide status indicators?
A8: Yes, it has front panel LEDs: green for RUN and red for FAULT indication.
