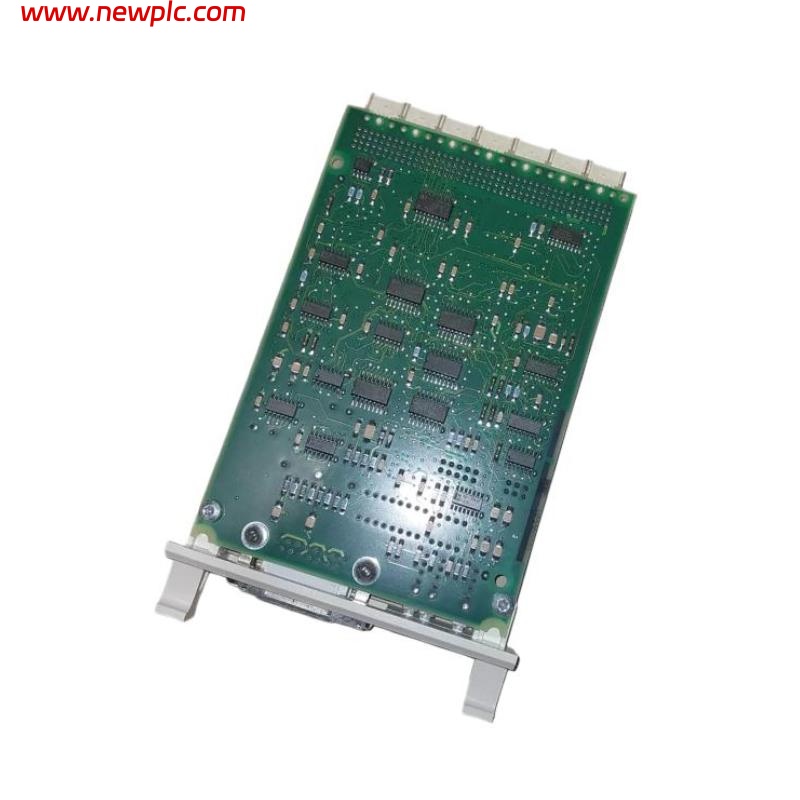

ABB CI547 3BNP004429R1 Digital Input Module

FAQ

Q1: What is the primary function of the ABB CI547 module?
It provides isolated DC discrete input channels for reading on/off status and logic signals from field devices such as switches and sensors.

Q2: How many input channels does the CI547 support?
The module supports 16 independent DC discrete input channels.

Q3: What type of signals does this module accept?
It accepts DC discrete input signals, typically at 24 V DC active high logic.

Q4: Does the CI547 offer electrical isolation?
Yes, it provides galvanic isolation between channels and the system backplane to enhance signal integrity and safety.

Q5: How are the field devices connected to this module?
Field connections are made through screw terminal blocks or a plug‑in terminal base for secure wiring.

Q6: Does the CI547 include status indication?
Yes, it has LED indicators for each input channel to indicate whether the input signal is active.

Q7: Can the CI547 operate in harsh industrial environments?
Yes, it is designed for use in industrial automation and control cabinets within its specified operating temperature range.

Q8: What are the physical dimensions and weight of the CI547?
The module measures approximately 45 mm × 115 mm × 100 mm and weighs about 0.50 kg.

3BNP004429R1 ABB CI547
