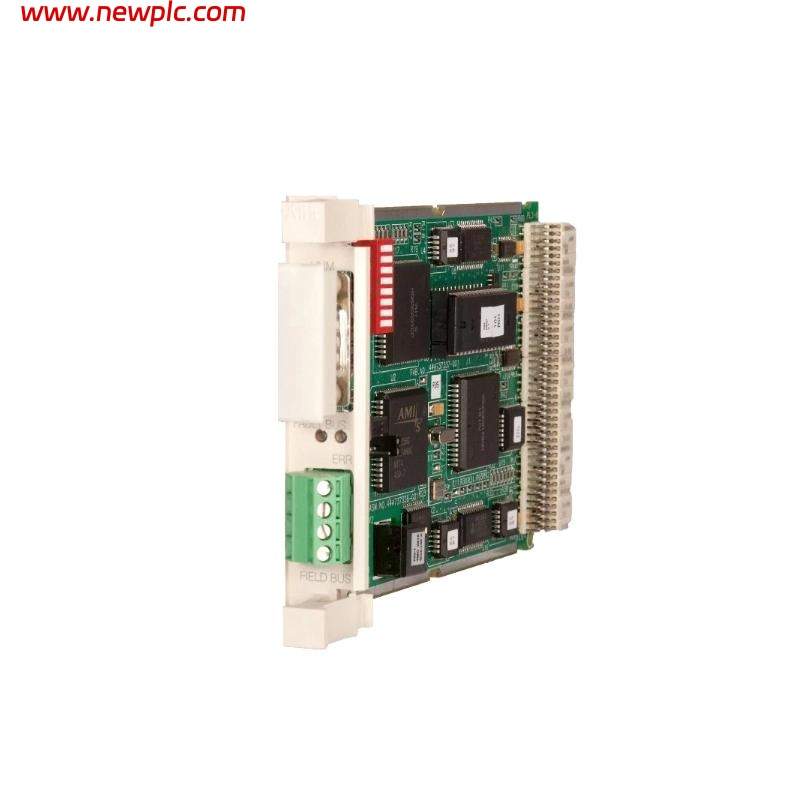

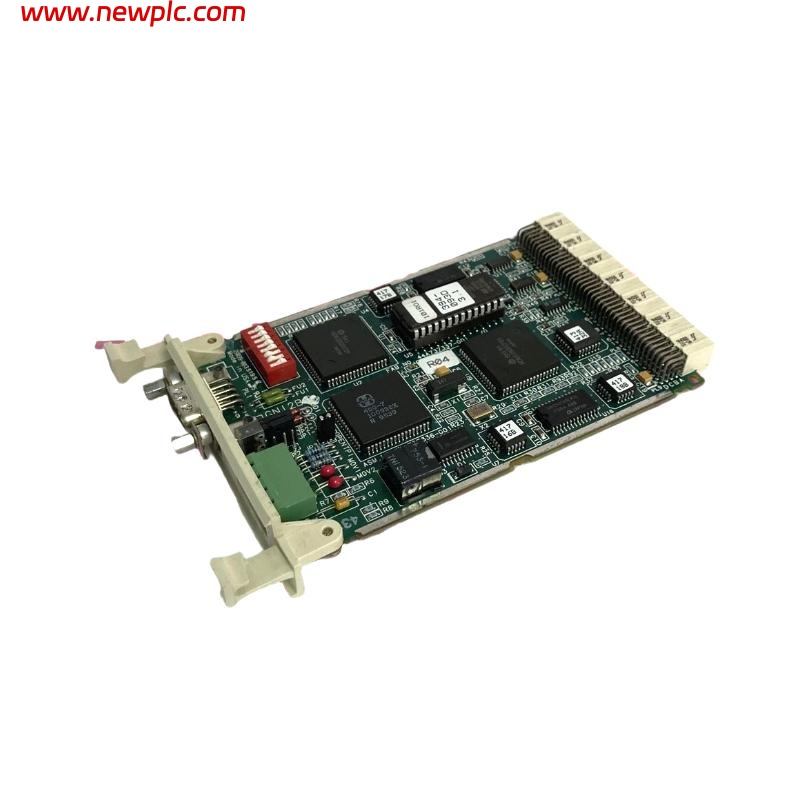

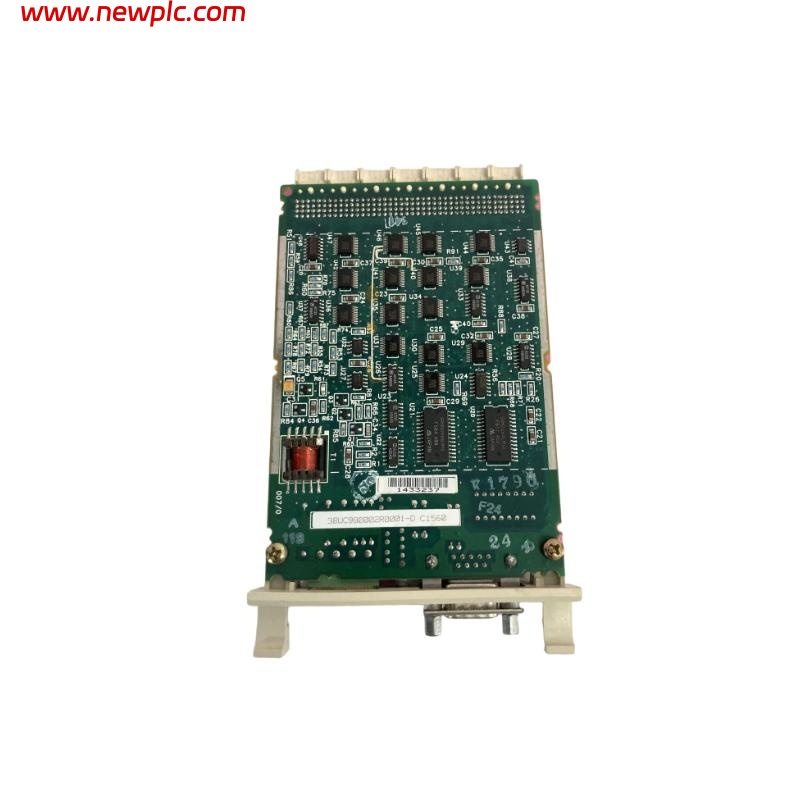

ABB CI560 3BUC98002R0001 Digital Input Module

FAQ

Q1: What is the primary function of the ABB CI560 module?
It provides 32 isolated DC discrete input channels for reading on/off status and logic signals from field devices such as sensors and switches.

Q2: How many input channels does the CI560 support?
The module supports 32 discrete DC input channels.

Q3: What type of signals does this module accept?
It accepts DC discrete signals, typically at 24 V DC active high logic levels.

Q4: Does the CI560 provide electrical isolation?
Yes, it provides galvanic isolation between the input channels and the system backplane to improve signal integrity and safety.

Q5: How are field inputs connected to this module?
Field devices are connected via screw terminal blocks or a plug‑in terminal base for secure wiring.

Q6: Does the module include status indication?
Yes, it includes LED indicators for each input channel to show active or inactive status.

Q7: Can the CI560 operate in industrial environments?
Yes, it is designed for industrial automation use within its specified operating temperature range.

Q8: What are the physical dimensions and weight of the CI560?
The module measures approximately 45 mm × 115 mm × 100 mm and weighs about 0.50 kg.
