Technical Specifications
| Item | Specification |
|---|---|

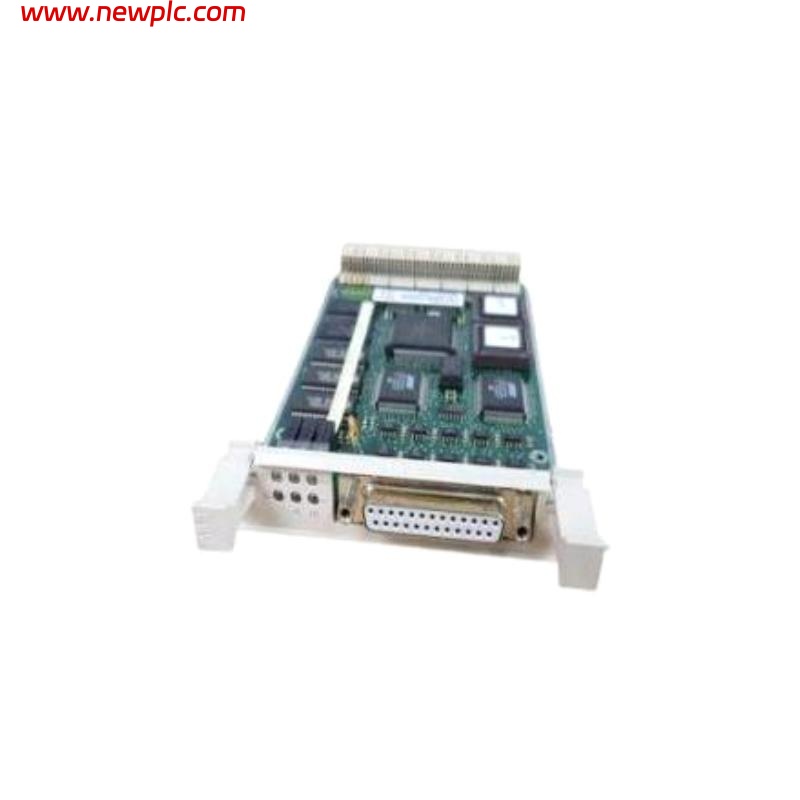

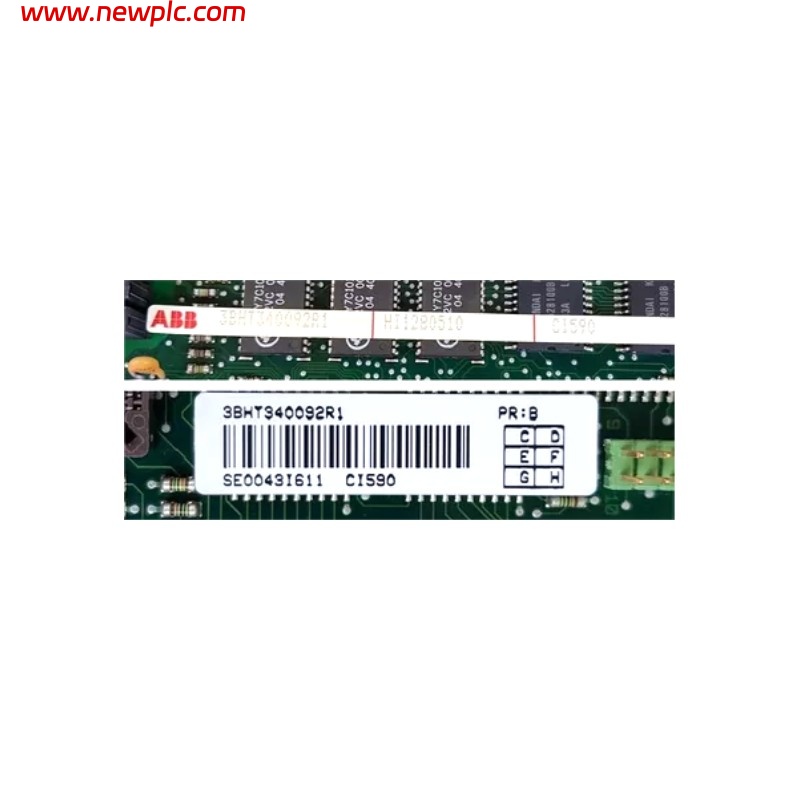

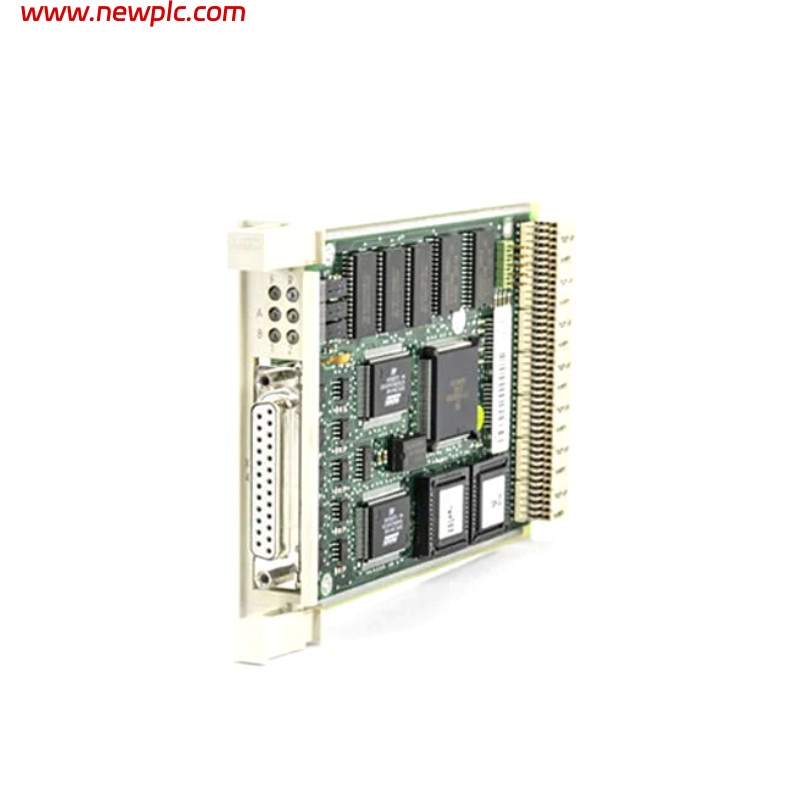

| Model | ABB CI590 (Ordering No. 3BHT340092R1) |
| Type | Digital Input Module |
| Product Category | PLC / DCS I/O Module |
| Product Family | ABB S800 I/O System |
| Function | Provides isolated discrete input channels for logic and status signals |
| Number of Input Channels | 32 channels |
| Input Signal Type | DC discrete inputs (24 V DC nominal) |
| Input Logic | Positive logic (active high) |
| Nominal Input Current | Standard industrial discrete input level |
| Isolation | Galvanic isolation between channels and system backplane |
| Status Indication | Individual LED indicators for each input channel |
| Mounting Method | DIN rail or rack mount via S800 terminal base |
| Field Wiring Connection | Screw terminal or plug‑in terminal base |
| Operating Temperature Range | –20 °C to +60 °C |
| Storage Temperature Range | –40 °C to +70 °C |
| Protection Rating | IP20 |
| Housing Material | Industrial‑grade plastic |
| Application Environment | Industrial automation and control cabinets |
| Compatibility | ABB S800 I/O system and compatible controllers |
| Dimensions | Approx. 45 mm × 115 mm × 100 mm (W × H × D) |
| Weight | Approximately 0.52 kg |
FAQ
FAQ
Q1: What is the primary function of the ABB CI590 module?
It provides 32 isolated DC discrete input channels for monitoring digital logic and status signals from field devices.
Q2: How many input channels does the CI590 support?
The module supports 32 discrete DC input channels.
Q3: What type of signals does this module accept?
It accepts DC discrete input signals, typically 24 V DC active high logic.
Q4: Does the CI590 provide electrical isolation?
Yes, it offers galvanic isolation between the input channels and the system backplane to enhance signal integrity and safety.
Q5: How are field devices connected to this module?
Field wiring connects through screw terminal blocks or a plug‑in terminal base for secure installation.
Q6: Does the module include status indication?
Yes, it includes individual LED indicators for each input channel to show active/inactive status.
Q7: Can the CI590 operate in industrial environments?
Yes, it is designed for use in industrial automation and control cabinets within its specified operating range.
Q8: What are the physical dimensions and weight of the CI590?
The module measures approximately 45 mm × 115 mm × 100 mm and weighs about 0.52 kg.
