Technical Specifications
| Item | Specification |
|---|---|

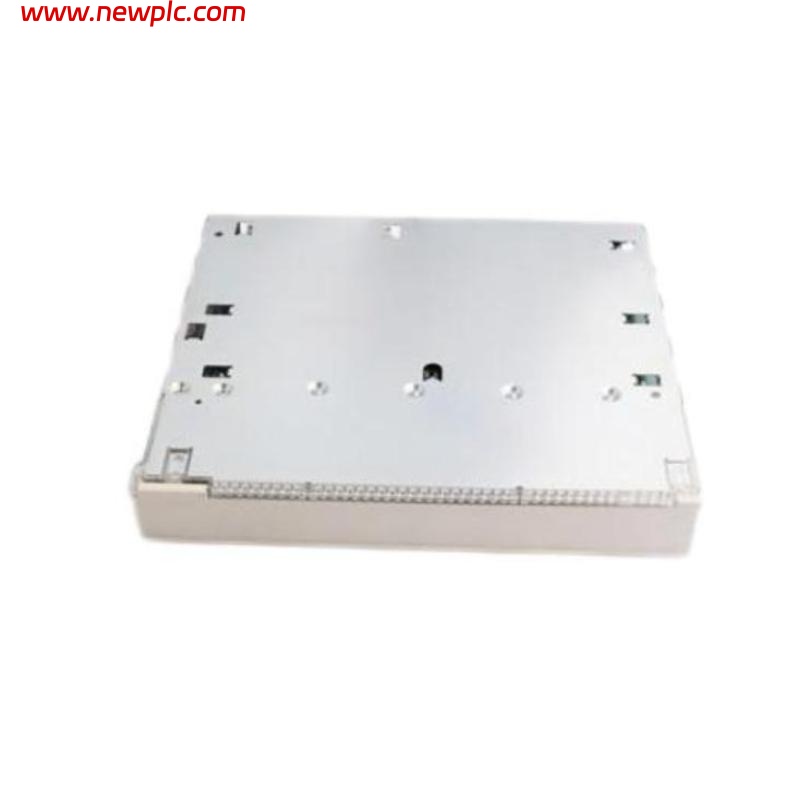

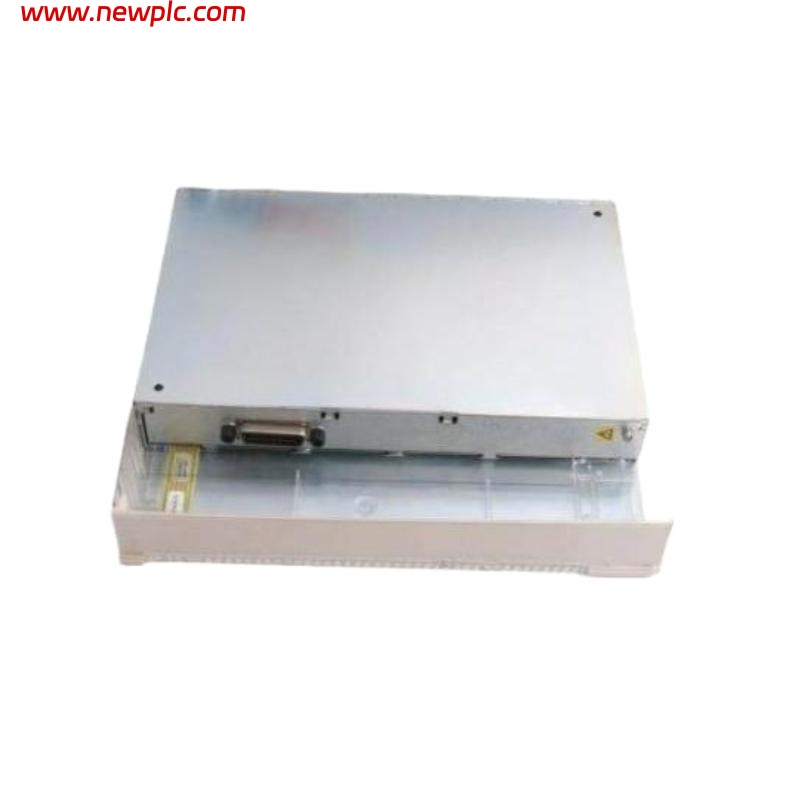

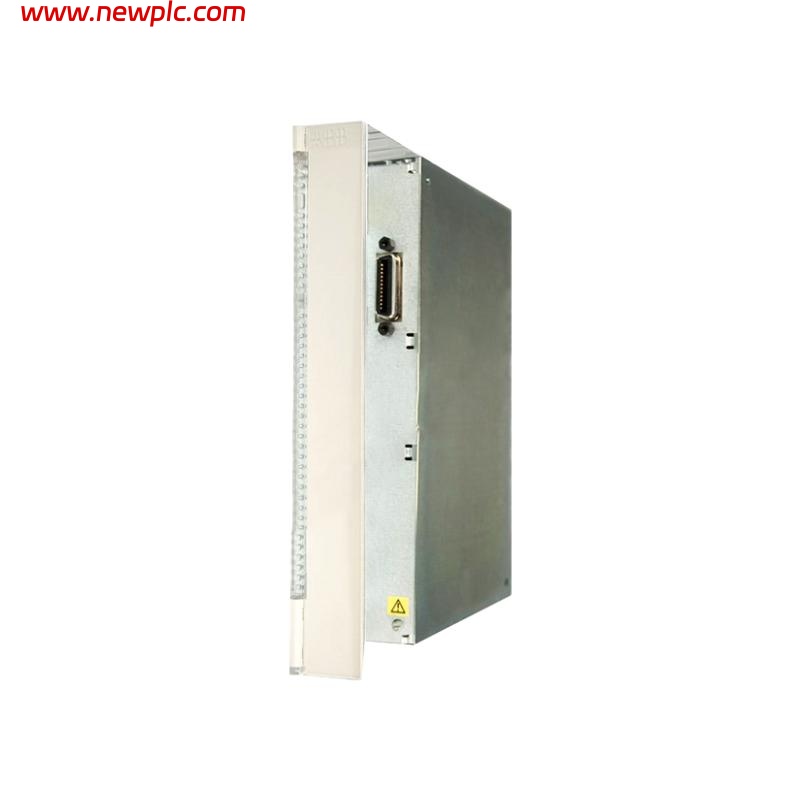

| Model | ABB CI610 (Ordering No. 3BHT300003R1) |
| Type | Digital Input Module |
| Product Category | PLC / DCS I/O Module |
| Product Family | ABB S800 I/O System |
| Function | Provides isolated discrete input channels for logic and status signals |
| Number of Input Channels | 16 channels |
| Input Signal Type | DC discrete inputs (typically 24 V DC) |
| Input Logic | Positive logic (active high) |
| Nominal Input Current | Standard industrial DC input level |
| Isolation | Galvanic isolation between channels and system backplane |
| Status Indication | Individual LED indicators for each input channel |
| Mounting Method | DIN rail or rack mount via S800 terminal base |
| Field Wiring Connection | Screw terminal or plug-in terminal base |
| Operating Temperature Range | –20 °C to +60 °C |
| Storage Temperature Range | –40 °C to +70 °C |
| Protection Rating | IP20 |
| Housing Material | Industrial-grade plastic |
| Application Environment | Industrial automation and control cabinets |
| Compatibility | ABB S800 I/O system and compatible controllers |
| Dimensions | Approx. 22 mm × 115 mm × 100 mm (W × H × D) |
| Weight | Approximately 0.30 kg |
FAQ
FAQ
Q1: What is the primary function of the ABB CI610 module?
It provides discrete DC input channels to read logic and status signals from field devices such as switches, sensors, and contact outputs.
Q2: How many input channels does the CI610 support?
The module supports 16 discrete DC input channels.
Q3: What type of signals does this module accept?
It accepts DC discrete input signals, typically at 24 V DC active high logic.
Q4: Does the CI610 provide electrical isolation?
Yes, it features galvanic isolation between input channels and the system backplane to enhance signal integrity and safety.
Q5: How are field devices connected to the CI610?
Field wiring connects through screw terminal blocks or a plug-in terminal base for secure installation.
Q6: Does the module include status indicators?
Yes, it includes LED indicators for each input channel to show active/inactive state.
Q7: Can the CI610 operate in industrial environments?
Yes, it is designed for industrial automation and control cabinet use within its specified operating temperature range.
Q8: What are the physical dimensions and weight of the CI610?
The module measures approximately 22 mm × 115 mm × 100 mm and weighs about 0.30 kg.
